Smart Calling System for Villa and Apartment

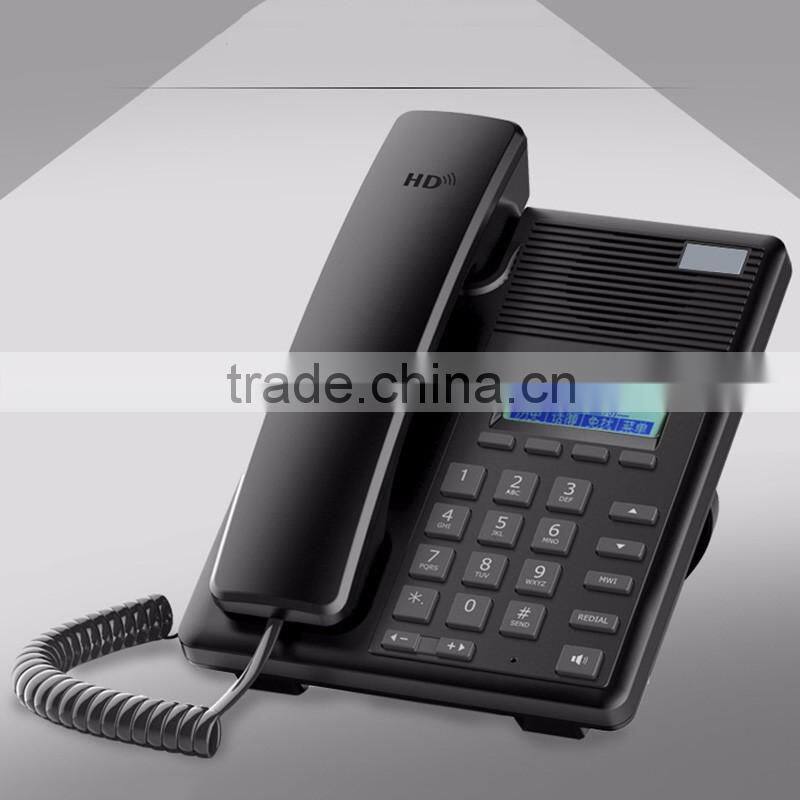

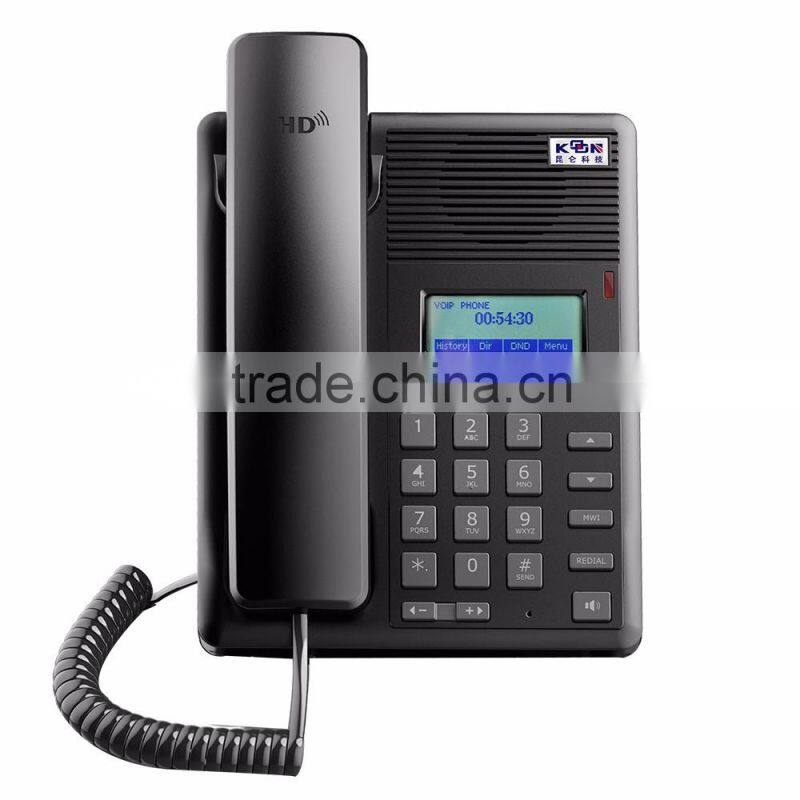

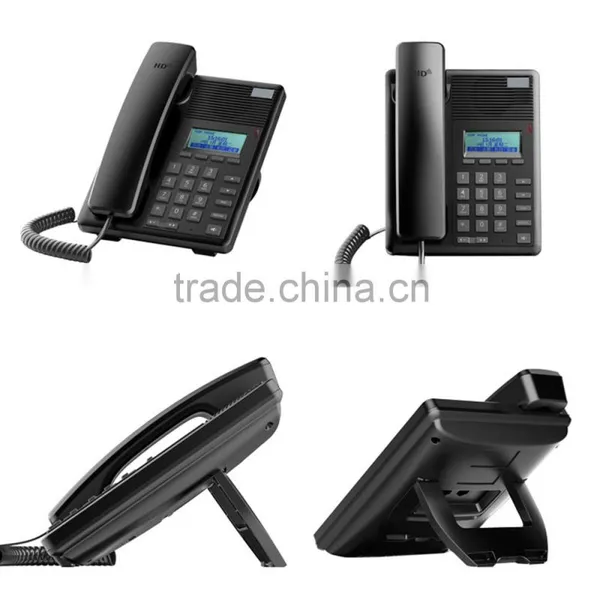

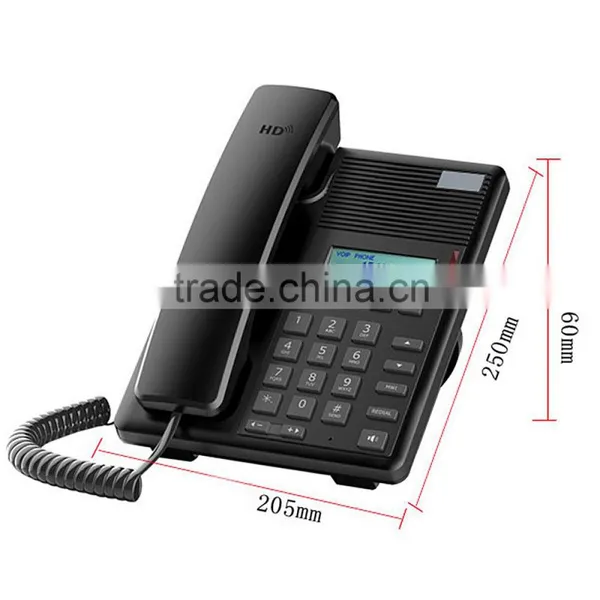

IP phone with 2 Lines & HD voice phone ata voip adapter wireless telephone manufacturer Koontech PL330

Product Application

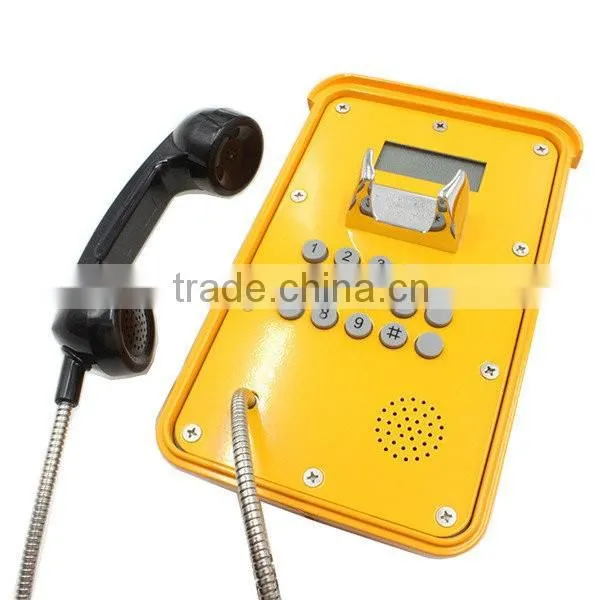

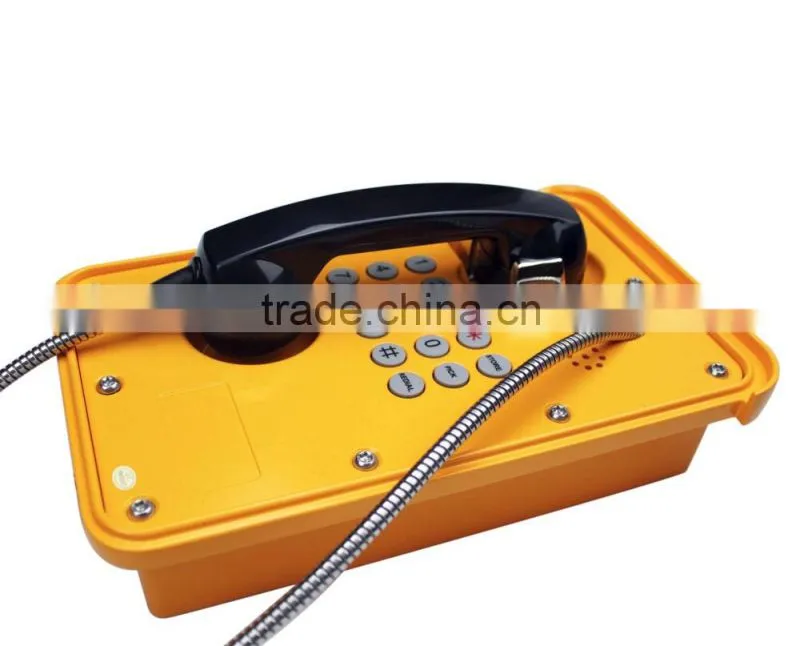

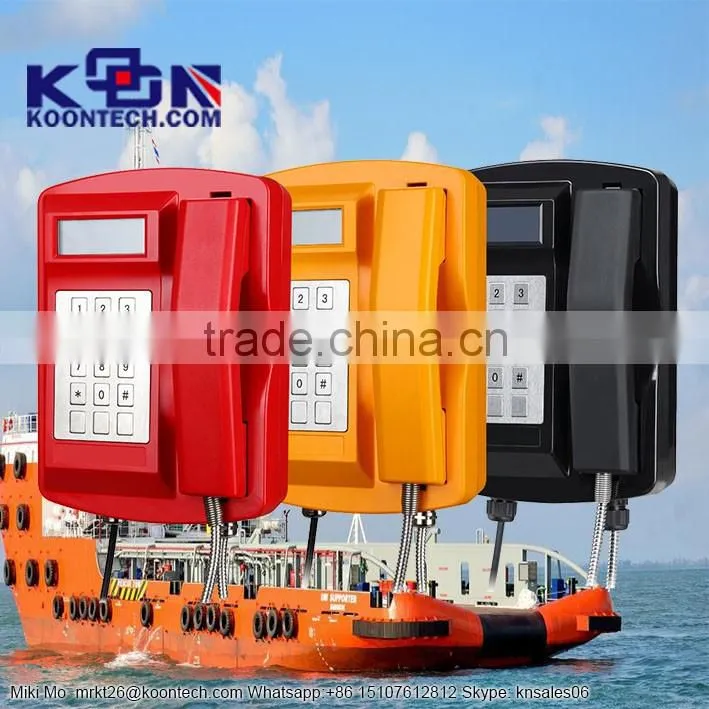

As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box
Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...
A good ideal tpfor use in wet or co

Main Features

Phone features

• vxworks OS

• Supports SIP 2.0 (RFC3261) and correlative RFCs

• SIP supports 2 SIP servers, and backup SIP proxy

servers.

• Supports SIP UDP/TCP/TLS

• Support IAX2,iax2 line call

• SIP support SIP domain, SIPauthentication (none,

basic, MD5),DNS name of server, Peer to Peer/ IP Call

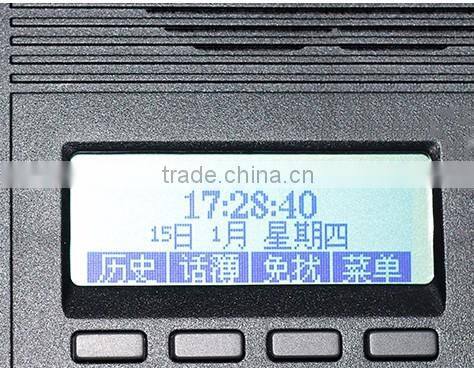

Display

• Display Resolution: 128x48

Feature Keys

• Large dot matrix LCD display and softkeys make user

easier to use • Soft keys programmable; function keys programmable

Audio Features

• HD voice: HD codec

• Codec: G.711A/u, G.7231 high/low,G.729a/b,

G.722,G.726

• DTMF: In-band, Out-of-band(RFC 2833) and SIP INFO

• Full duplex hands-free speakerphone

• Voice Activity Detection (VAD)

• Comfort Noise Generation (CNG)

• Echo cancellation: Support G.168, and Hands-free can

support 96ms, Hand free Speaker Phone

Advanced Features

• Call forwarding

• Call transfer (blind/attended/alert)

• Call holding

• Call waiting

• Call conference

• Capable of 10 way conversation

• Call completion

• Support multi line and predial

• Support messaging and MWI

• Flexible dial plan

• Barring function for outgoing calls

• Do not disturb

• Auto answer (handfree/ headset)

• Caller ID display

• CLIR (rejects anonymous calls)

• CLIP (to make an anonymous call)

• Dial without registration

• Supports call logs with missed calls/incoming calls/

outgoing calls Each support 500 records.

• Support Phonebook 1000 records

• Support SMS and Speed Dial

• Hotline/Warm-line

• Call rejection

• Black List

• Intercom/Intercom barge

• Password dial

• Direct IP call without SIP proxy

• Support action URL/active URI

• Voice codec setting for each SIP line

• Hands-free ringing choice

• Support XML phonebook/browser

• Support click to dial via web phone Book

Network/ Security Features

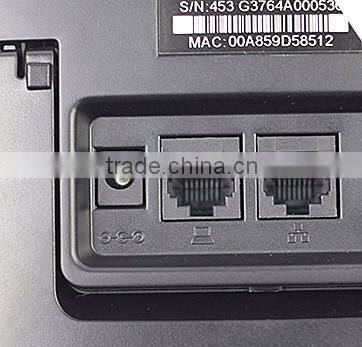

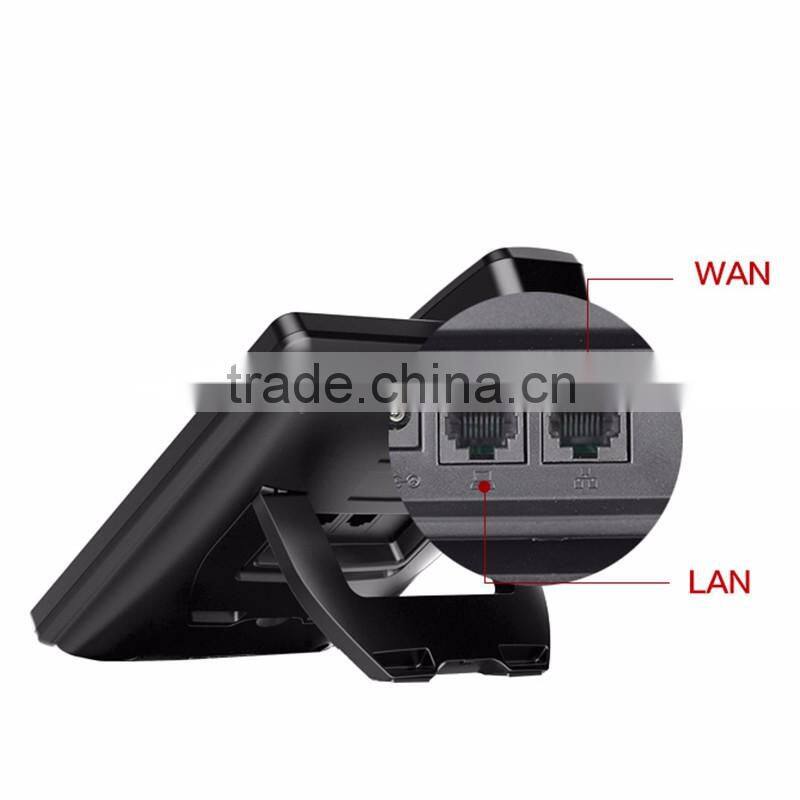

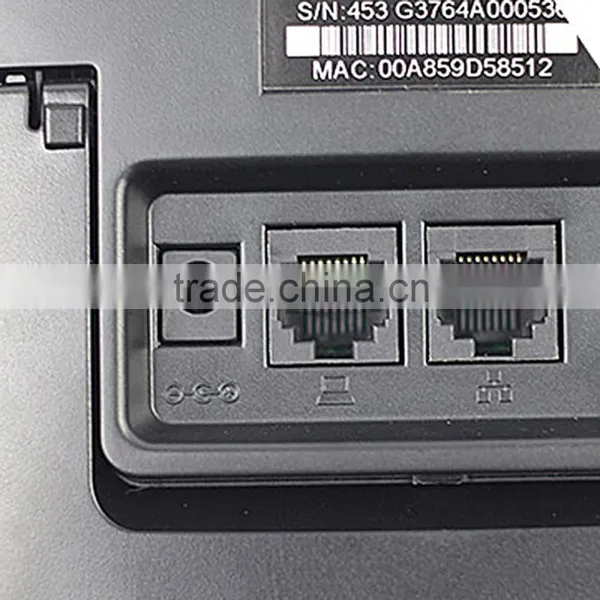

• WAN/LAN: 10/100M Ethernet ports,

• supports Route and Bridge mode.

• Support bridge working as hub

• Support PPPoE for xDSL and

• PoE(optional)

• Support VLAN(voice vlan/data vlan)

• Support 802.1x

• Support basic NAT and NAPT

• NAT transverse:support STUN client

• Support DHCP client on WAN

• Support DHCP server on LAN

• Support main DNS and secondary DNS server.

• Support DNS Relay, SNTP Client,

• Firewall, openVPN

• Support VPN (L2TP) and DMZ

• Network tools in telnet server: including ping, trace

route, telnet client

Machine Parts

Metal body
PCB Board

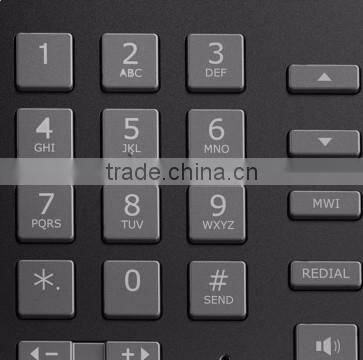

Dial pad
Speaker

handset

keypad

LCD

Application Examples:

As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box

Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities...
