Home > Lights & Lighting > LED Lighting Decoration > LED Strip Light > Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip

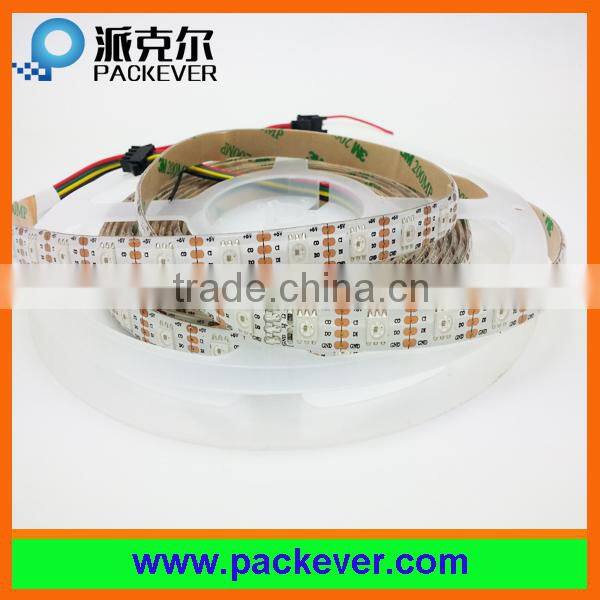

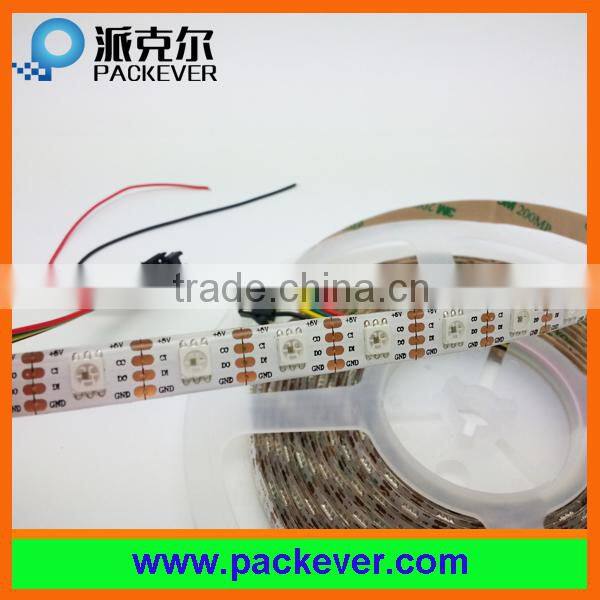

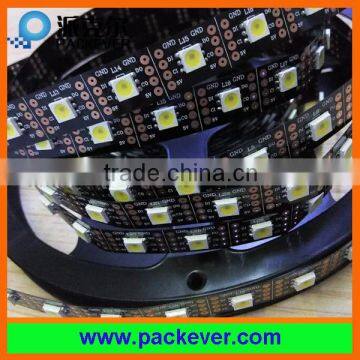

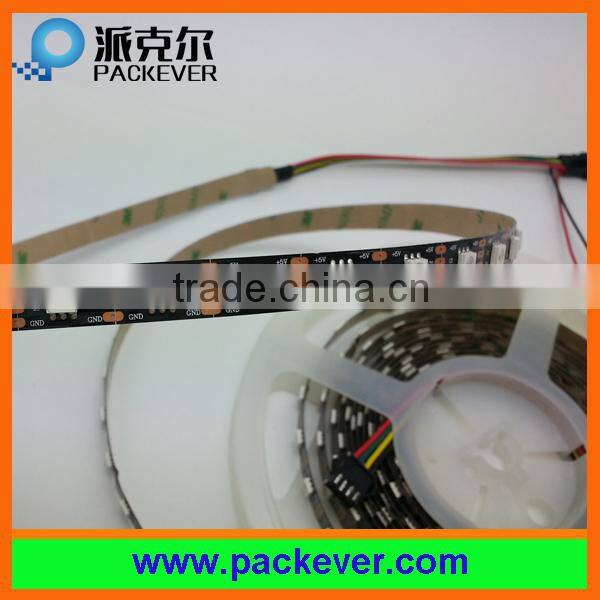

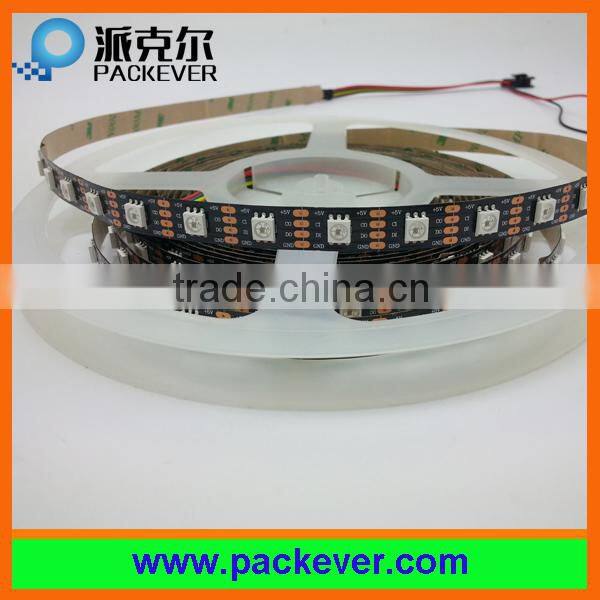

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip

Name: Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip
Brand: PACKEVER
SKU: 126861099
Availability: InStock

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip thumbnail-1

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip thumbnail-2

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip thumbnail-3

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip photo-1

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip photo-2

Programmable Lead Free 5V Smd5050 60leds Apa102 Addressable Single Color Led Strip photo-3

US$ 10 - 11 MOQ: 1 Meter

Key Specifications

Get Latest Price

LED Light Source:

SMD5050 white

Type:

Flex LED Strips

Input Voltage(V):

DC5V

Contact Supplier Request Quote Chat Now

Shenzhen Packever Technology Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hong Kong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

LED Light Source SMD5050 white

Type Flex LED Strips

Input Voltage(V) DC5V

Lamp Power 18W/M

Lamp Luminous Flux(lm) 20lm/LED

Color Temperature(CCT) 2700-8000K

Working Temperature(℃) -30, 60

Working Lifetime(Hour) 50000

Lamp Body Material Copper

Certification CE

Emitting Color RGB

Place of Origin Guangdong, China

Brand Name PACKEVER

Model Number PK-FPCB102-60

Programmable lead free 5V smd5050 60leds apa102 addressable single color led strip

This one use white color led source apa102c led diodes, still addressable function, each lamp can be controlled!

Product Description

Product Name	apa102 addressable single color led strip
Item No.	PK-FPCB102-60
Power Consumption	18W/Meter
Work Voltage	DC5V
IC Type	APA102 built into 5050
LED Qty per meter	60pcs SMD5050 white
PCB Color	Black/white/yellow
Dimension	L 5000W12H3mm
Waterproof Grade	IP40/IP65/IP67/IP68
Work Temperature	-30-+60°C
Life-span	50,000H
Certificate	CE&RoHS
Warranty	2 years

Programmable lead free 5V smd5050 60leds apa102 addressable single color led strip Advantage:
1. IC embedded, save space and cost
2. Each one controlled individually, show customized color effects
3. Cuttable for each LED
4. Two lines data, faster and more stable than one data

Programmable lead free 5V smd5050 60leds apa102 addressable single color led strip Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
CLK: connect to controller CLK
GND: connect to power supply GND & controller GND

IMPORTANT MESSAGE BEFORE BUYING:
1. We have more than 10 items of APA102 LED strips, if need more information, email or call us now! Accept customized design!
2. Emitting color: normally RGB for decoration, white color APA102 chip strip available if you need!
3. APA102 two places for package, one in Taiwan, called APA102. Another packed in China mainland, some one call it APA102C. Taiwan chip is bigger than mainland's. But as cost and delivery time reason, normally we use China mainland chip. If need Taiwan original LED, please inform us before ordering!
4. Working with APA LED packaging factory directly, can make us get first hand resource, quality and cost better than others!

More different items

Seq	Input voltage	LED Qty	Pixel Qty	Power	PCB width
1	DC5V	24/meter	24/meter	7.2W/m	10mm
2	DC5V	30/meter	30/meter	9W/m	10mm
3	DC5V	32/meter	32/meter	9.6W/m	10mm
4	DC5V	36/meter	36/meter	10.8W/m	10mm
5	DC5V	48/meter	48/meter	14.4W/m	12mm
6	DC5V	60/meter	60/meter	18W/m	12mm
7	DC5V	66/meter	66/meter	19.8W/m	12mm
8	DC5V	72/meter	72/meter	21.6W/m	12mm
9	DC5V	74/meter	74/meter	22.2W/m	12mm
10	DC5V	96/meter	96/meter	28.8W/m	12mm
11	DC5V	144/meter	144/meter	43.2W/m	12mm

Product photos

FAQ

How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.

How to pay:
TT, Western Union, Paypal, Moneygram

How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!

Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
