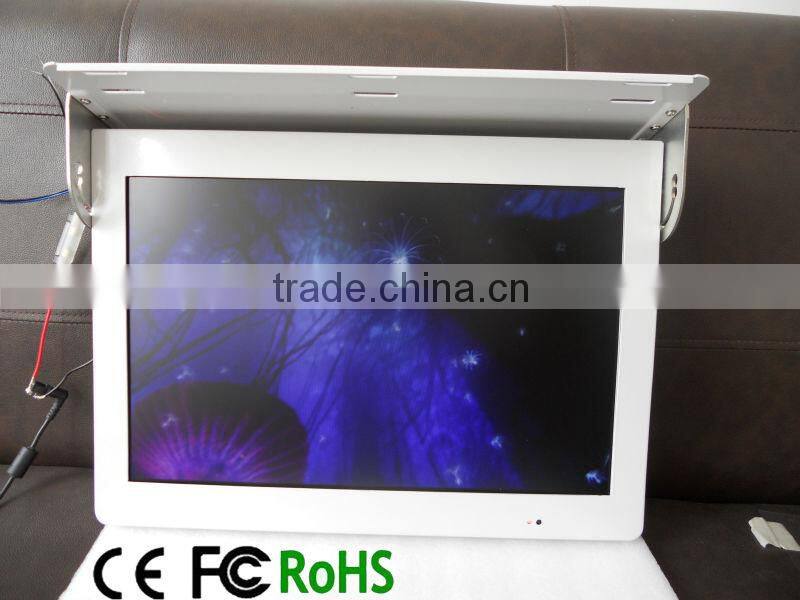

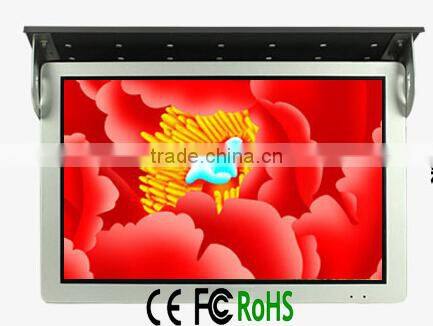

24 inch coach train metro bus LED monitor digital advertising player
network wifi 3G bus 24inch LCD playback video monitor with mounting bracket
Technical Parameter for LCD Panel:
Panel Size: 24 inch real color LCD screen
Aspect Ratio: 16:9
Active Area: 376.32mm(H) x 301.056mm(W) 24inch bus wireless 3G digital LCD signage AD screen with bracket
Max. Resolution: 1920 x 1080
DOT Pitch: 0.294mm(H) x 0.294mm(W)
Number of Color: 16.7M
Brightness: 350CD/m2 Contrast Ratio: 500: 1
Responsive Time: 8ms Panel Life: Above 50000 hours
Product Features and Technical Parameter:
- Outer shell is made by extra quality metal material, which is painted by powder-spray craftwork. Yellow, Silver or Black color, roof or back fixing mode.
- With a protection layer of high light-penetrating tempered glass(thickness is 2mm) on the surface of the LCD screen.
- LCD Panel Brand: Samsung, LG, Chi Mei, AUO and HSD etc., A Class 335 standard, full new and factory original packing screen.
- With CF card slot, SD card slot, USB2.0 port and Mini-USB port, at one player, and using CF and SD card as the source of programming, play high reliability. VGA and AV port are available under customers' special request.
- Safely locking system function insures the safety of flash memory Card, advertising playing content and input password.
- With USB update feature; Support functions between the card and card copying files (such as CF card to SD card, or SD to CF card etc. ); Support U-copy, conveniently and quickly updating target content, more details please refer to user manual.
- Playing advertising program automatically and circularly; Support media format: JPEG (JPG), MP3, AVI, MPEG1, MPEG2, MPEG4, VOB, WVM and DIVX (5.0/6.0).
- Playlists support functions, can set different folders, copy all target files to those different folders. Under System default, target files will play one by one.
- Capable of setting rolling caption on the screen, playing rolling caption in the advertisement program.
- Build-in clock and calendar function in the system of player.
- Support 5 groups of auto power-on/off timer, able to set those 5 groups of time one day and 7 days in one week.
- Support shockproof and dustproof function.
- Storage Temperature: -17 to 65 Celsius degree, Normal Working Temperature: -10 to 65 Celsius degree.
- User can select audio system according to bus, one way is to build-in two speakers stereo, rated power is 2 x 5W; The other is to build-in audio amplifier system, and then the audio cable of the player will be directly connected with the speaker of bus.
- Support software updating function.
- Multi-language OSD: English, Chinese, French, German, Italian, Spanish or other languages.
Product Function Parameter:
-Support memory card capability: 32MB-16GB, such as CF card, SD card and U-disk etc.
-Support file playing format: MP4(AVI: DIVX/XVID), MPG2(DVD: VOB/MPG2), MPEG1 (VCD: DAT/MPG1), and MP3, JPG etc.
-Support video playing format: AUTO/NTSC/PAL is optional.
-Audio output: Stereo L/R, 5W*2, 8Ω
-Power supply: DC 6V -- 36V, normally, it is 12V or 24V.

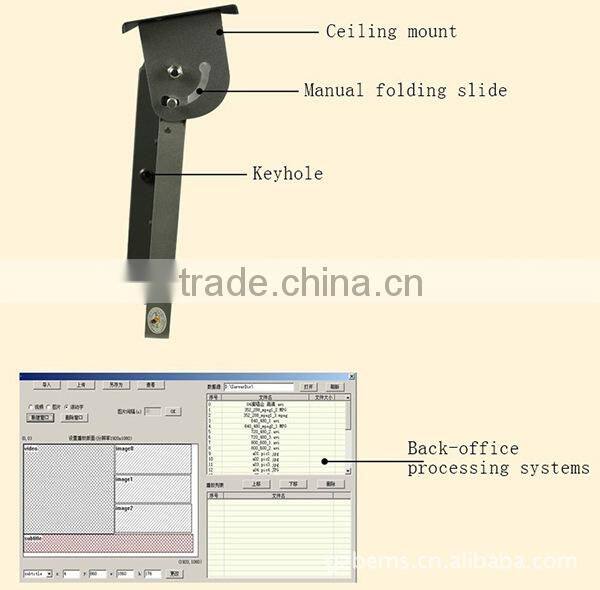

| Network system : | ||||
| * Can be set split-screen 1to8 area for broadcasting video w/ photo, w/ other display of logo/ date/ weather/ roll-text or subtitles. | ||||
| * Support format: JPG.PNG.BMP.AVI.MPG.MP4.WMV.MOV.MP3.WAV.TXT.GZ.IMG | ||||
| * Can set several assistant of administrator with limits of authority. | ||||
| * Can set fixed time download, real-time download. And keep broadcasting when downloading. | ||||
| * Support terminal set password, for protect viciously control from outside. | ||||
| * Support modify terminal IP by server software or by remote control. | ||||
| * High definition, and support 1080P video. | ||||
| * Control one or all terminals. | ||||
| * Support 3 roll-text. | ||||
| * Support play files & roll-text in the specified time, support playlist. | ||||
| * Support play video with connected photo and roll-text. | ||||
| * Can be set several clocks of power on and off. | ||||
| * Support cut-in broadcasting. | ||||
| * Support vertical type. | ||||
Packing Information:
Packing list: One unit 24 inch LCD bus player, 2PCS keys, 1PCS English manual, 1PCS remote controller.
Packing size: 530mm*440mm*180mm
Net weight: About 7.9kg Gross weight: About 9.5kg Volume Weight: 7.57kg

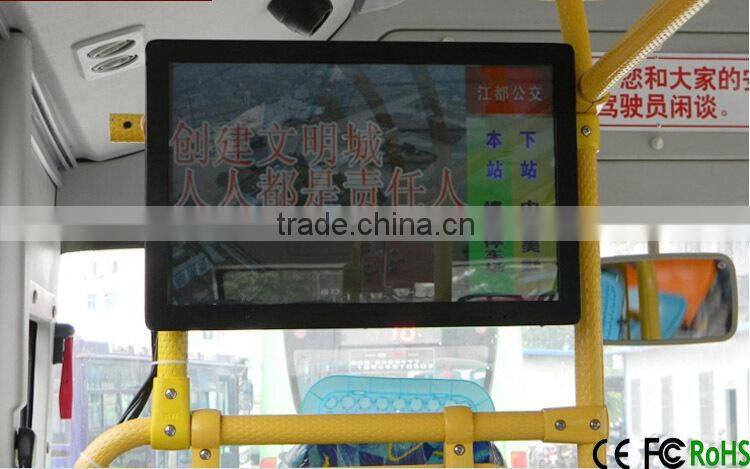

Applicable Fields: Various forms of transportation, like bus, train, subway etc.
Warranty: 12 months
Life-time maintenance.
