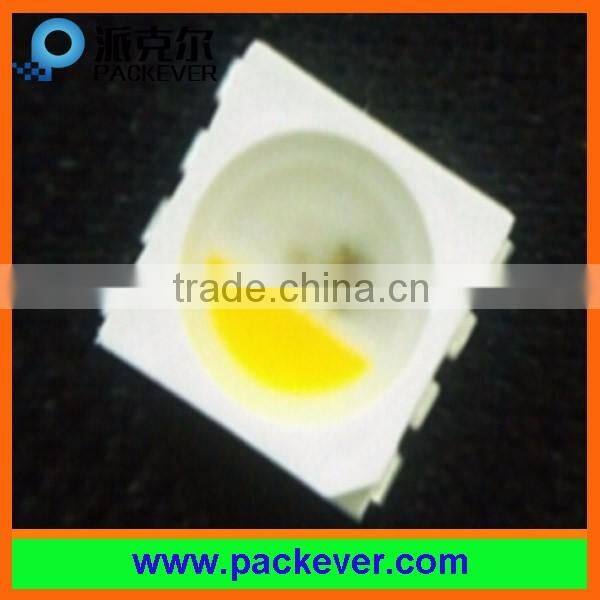

IC embedded SMD5050 RGB color SK6812 LED diode, SK6812 LED chip
This SK6812 LED is patent product, Red/Green/Blue chips inside, and IC embedded. One LED as one pixel, can show customized color.

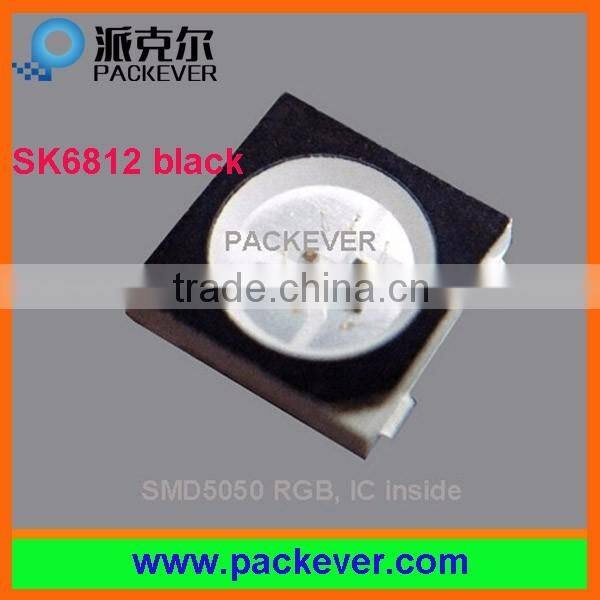

Normally white color frame, we also have black frame type SK6812 LED chip.

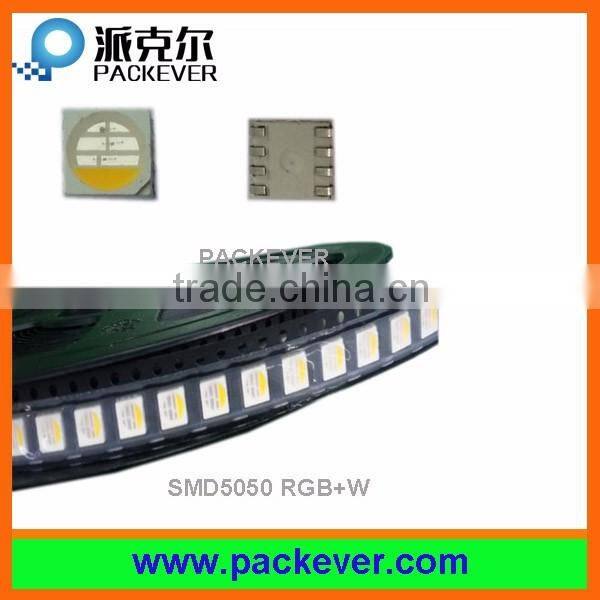

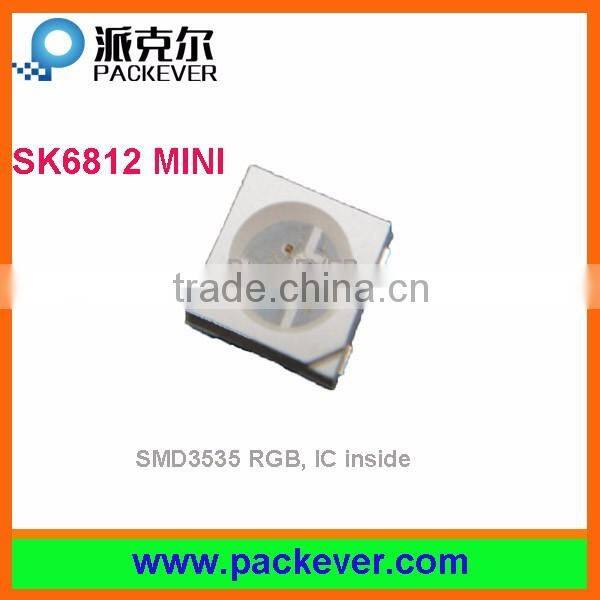

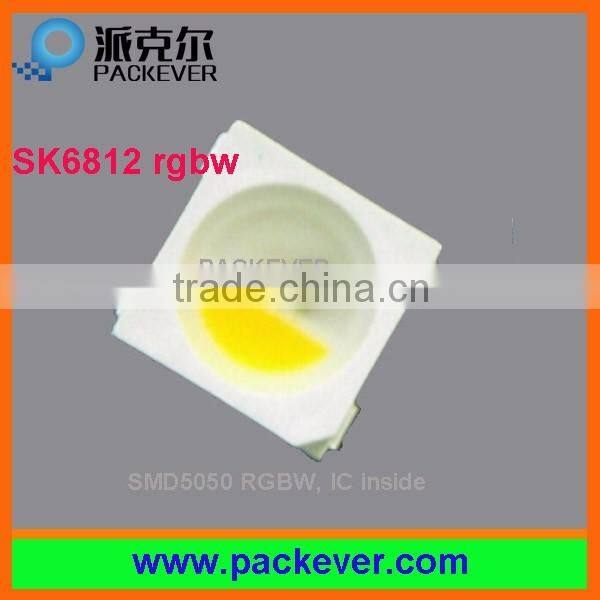

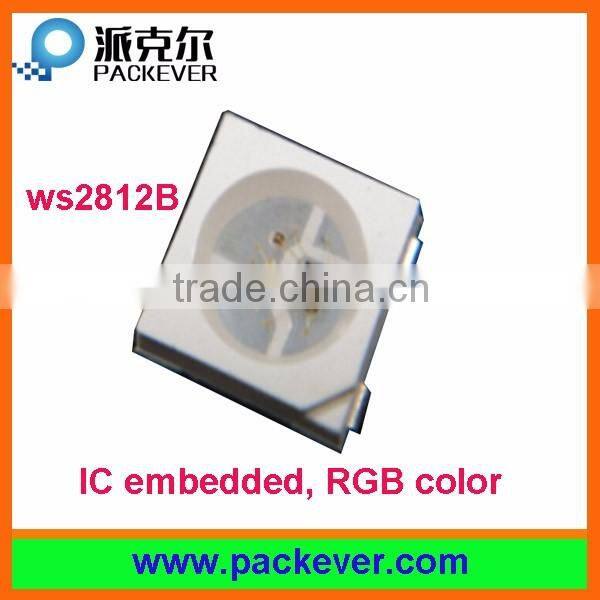

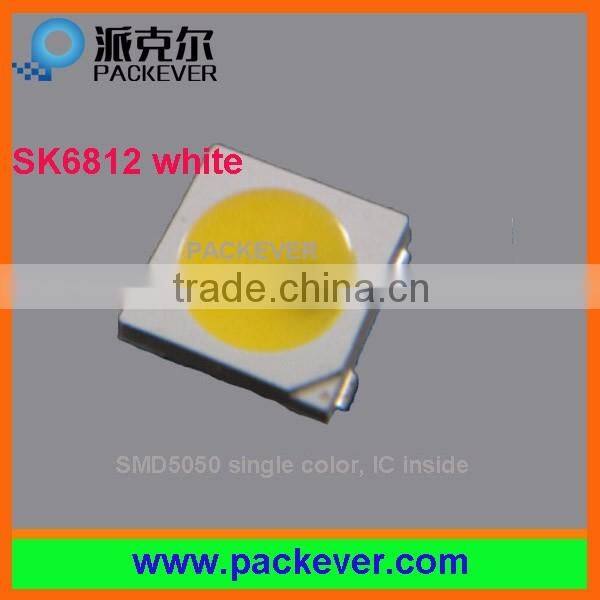

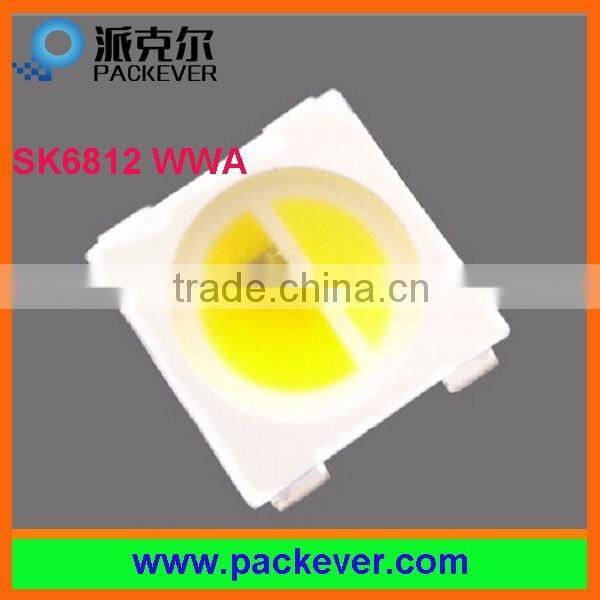

Other type IC embedded LED available, like APA102, APA12C, WS2812B, WS2812S, SK6812 RGB, SK6812 RGBW, SK6812 WWA, SK6812 white color, SK6812 RGBY, SMD3535 SK6812. Factory price!
Need more details or SK6812 datasheet, please contact our sales. All enquiry will be replied within 12 hours!
1 Top SMD internal integrated high quality external control line serial cascade constant current IC;
2 Control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;
3 Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
4 The built-in power on reset and reset circuit, the power does not work;
5 Gray level adjusting circuit (256 level gray scale adjustable);
6 Red drive special treatment, color balance;
7 Line data transmission;
8 Plastic forward strengthening technology, the transmission distance between two points over 10M;
9 data transmission frequency up to 800Kbps, when the refresh rate of 30 frames per second, a cascade of not less than 1024;
10 built-in powerpolarity protection module, powerpolarity will not damage.

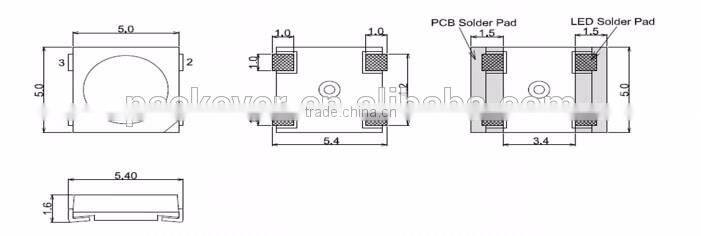

SK6812 LED chip size:

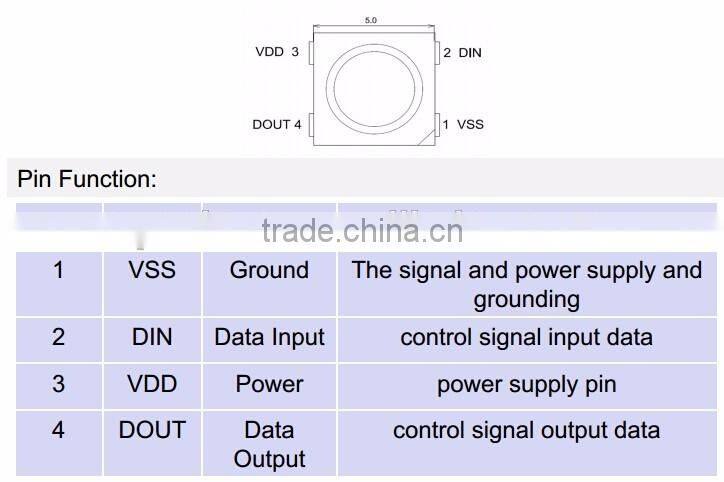

SK6812 LED chip Pin function:
