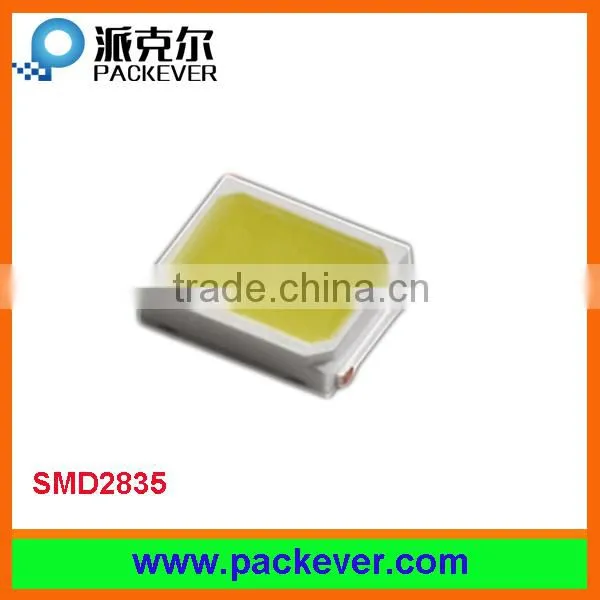

High brightness SMD 2835 LED diodes 0.1W 0.2W
SMD2835 LED brightness is higher than SMD3528. But price is very competitve!
Item:SMD2835 LED diode
Voltage:3.0-3.6V
Power:0.2W
Currenty: 60MA
Lumen:21-23-25-26LM
Color temperature:3000-3500/4000-4500/6000-6500K
Other color SMD2835 are availabe!
| SMD2835 datasheet | ||||||
| Color | Wavelength(nm)/CCT(K) | Brightness(mcd/Lm) | CurrentymA) | Voltage(V) | Power(W) | |
| Red | 620-630 | 1500-2500 | 60 | 2.0-2.4 | 0.1 | |
| Yellow | 588-594 | 1500-2500 | 60 | 2.0-2.4 | 0.1 | |
| Orange | 600-610 | 1200-1800 | 60 | 2.0-2.4 | 0.1 | |
| Blue | 460-475 | 800-1200 | 60 | 3.0-3.4 | 0.2 | |
| Green | 515-530 | 3000-4500 | 60 | 3.0-3.4 | 0.2 | |
| Warm white | 2800-3200 | 22-24lm | 60 | 2.8-3.4 | 0.2 | |
| Pure white | 5500-6500 | 22-25lm | 60 | 2.8-3.4 | 0.2 | |
| Cold white | 10000-15000 | 22-24lm | 60 | 2.8-3.4 | 0.2 | |
| Warm white | 2800-3200 | 45-55lm | 150 | 2.8-3.4 | 0.5 | |
| Pure white | 5500-6500 | 45-55lm | 150 | 2.8-3.4 | 0.5 | |
| Pure white | 4000-4500 | 45-55lm | 150 | 2.8-3.4 | 0.5 | |
All colors are available
RGB SMD, chip SMD, Bi-color SMD, Diffused SMD, Clear SMD for your option
Factory price with high quality
Many years professional manufacturer&best service
Cheapest & fast delivery
Features:
1) 0805, 0603, 1206, 1210, 3528, 5050, 020 side view SMD
2) Saving energy and environment protection. The energy of led is 1/10 of the Traditional halogen lamp, it can better protect the electron circuit
3) Flexible viewing angle, Long lifespan, Low power consumption
4) Various colors and lens types available, unique design
5) High ability of shock resistant; Brighter light; Low temperature.
6) Available Colors: Red, Yellow, White, Green, Blue, UV 400nm, 395nm, 385nm, 375nm, 365nm
7) RoHS Compliant decide excellent quality
Applications
1. Indoor displays
2. Substitution of micro incandescent lamps
3. Traffic lights
4. Interior and exterior automotive lighting (e. G. Dashboard backlighting and brake Lights)
5. Backlighting (LCD, cellular phones, switches, keys, displays, illuminated Advertising)
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
