DC12V-DC24V led strip mini RGB/RGBW WiFi controller
Summarize:

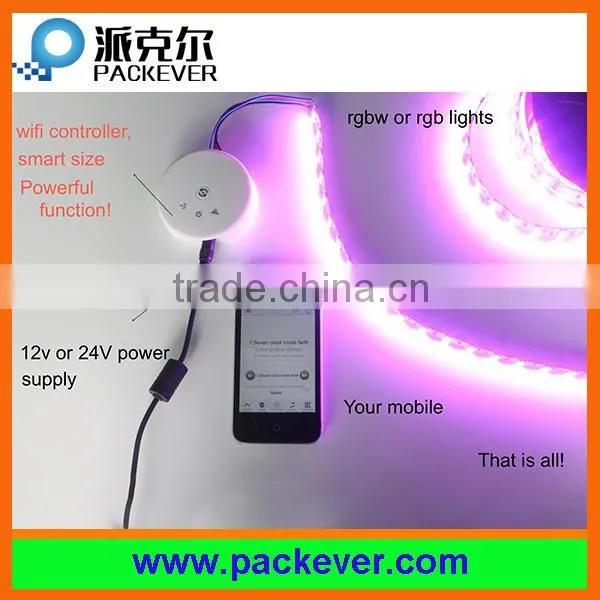

Welcome to use LED WiFi Controller, this controller is designed for lower voltage (12-24V) light, such as 12V led strips, 12V panel light etc. After installation and settings, your phone (IOS or Android system) can control light directly. The remote distance reaches 50 meters indoor and more than 100 meters out door
Specifications:
1. RGB/RGBW, 16 million colors, built-in 20 dyamic models, DIY models, music modes
2. Divide into groups function
3. Timing function, automatic turn on/off as your setting time. Set any dynamic models
4. Allocate to router by one key "WPS"
5. After connecting router, controller's wifi signal will be hided automatically to prevent hotlinking
6. Memory function, keep same status as last time after power off
7. Single control by phone or integrated control by router
8. Operating platform: requires Android 2.3.3 or later, IOS 6.0 or later
Data Parameter:
- Input voltage: DC12V-DC24V
- Power: DC12V: 192W; dc24v: 384W
- Application: common anode, constant voltage light, such as led strips, led panel etc
- Ouput current: 4A*4 channel
- Connection: common anode

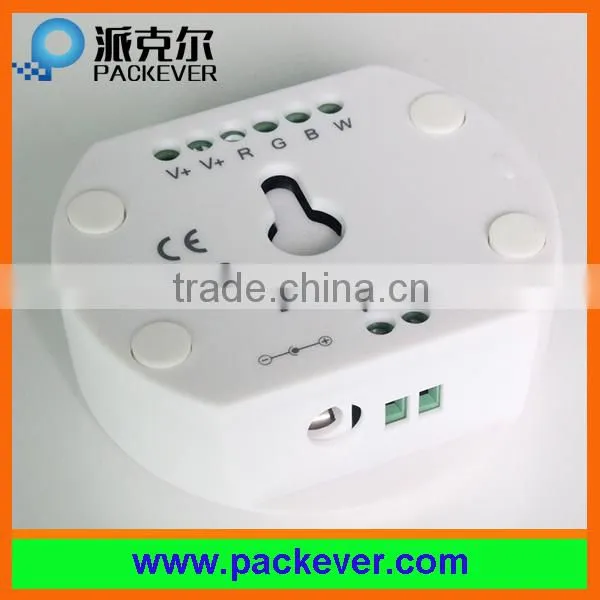

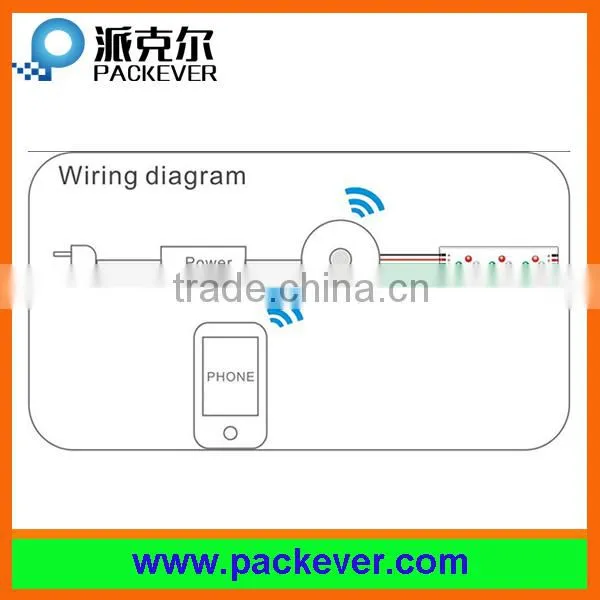

- Input: (Wire terminal or DC head)
V+: connect anode of the power supply
V-: connect cathode of the power supply
Output: V+: connect anode of lamp
R: connect anode of red color
G: connect anode of green color
B: connect anode of blue color
W: connect anode of white color if you light have this port
How to order:
1. Contact our sales. Our sales will quote for you based on your requirements.
2. Send you proforma invoice to confirm.
3. After confirming your payment, we will arrange production.
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
