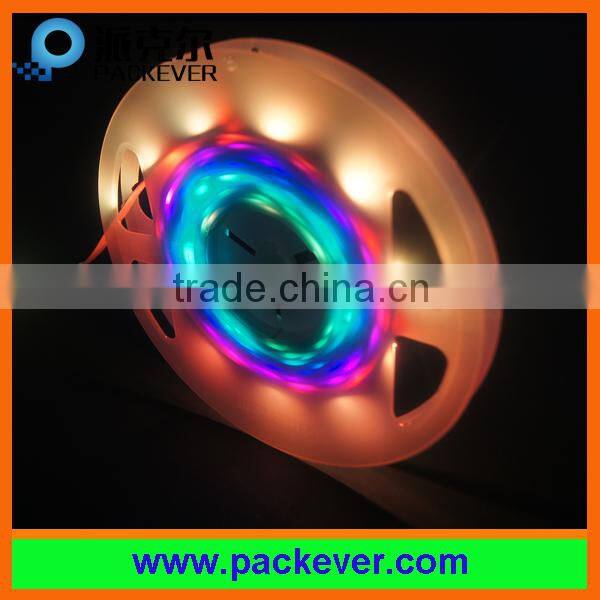

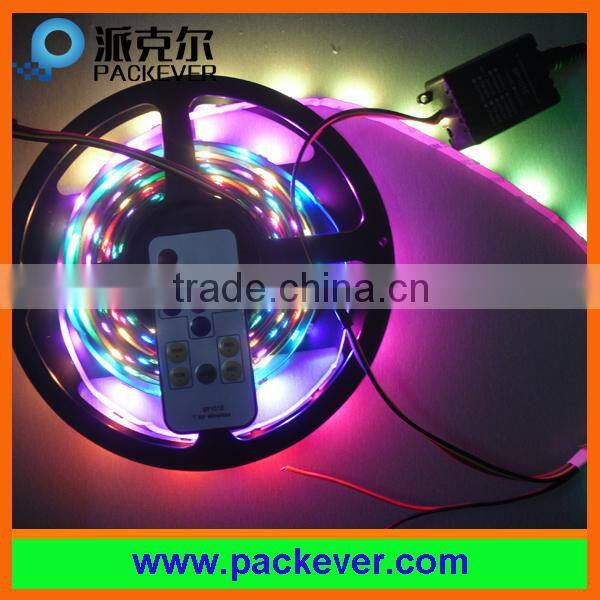

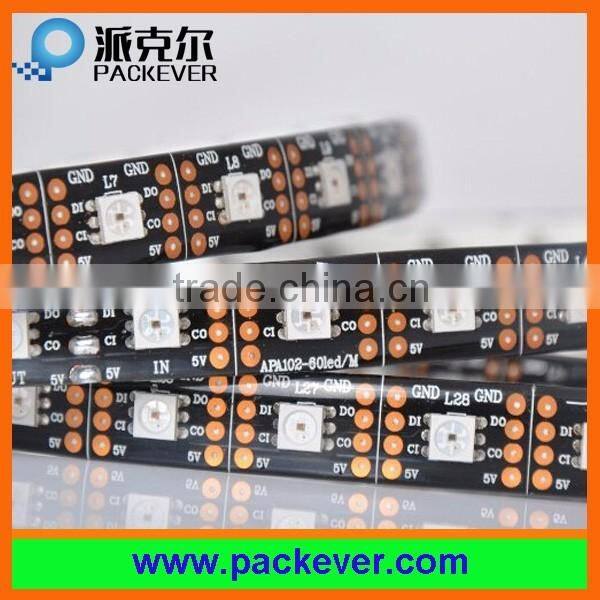

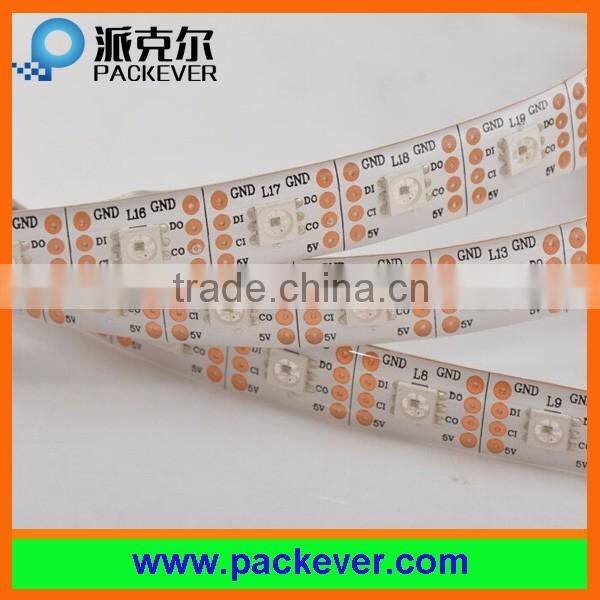

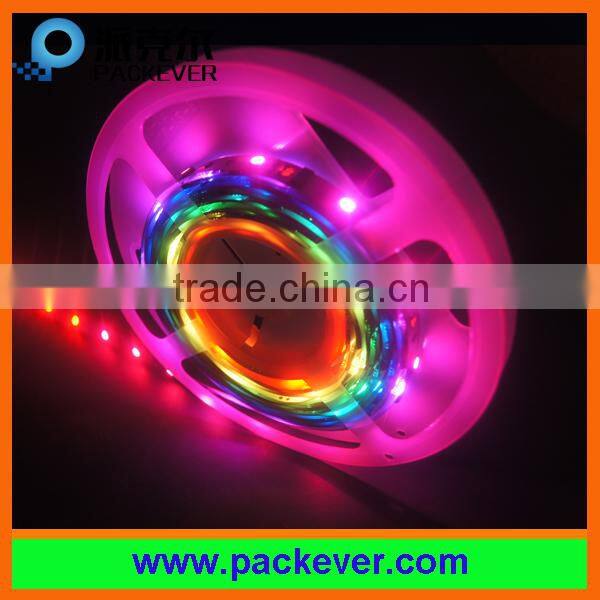

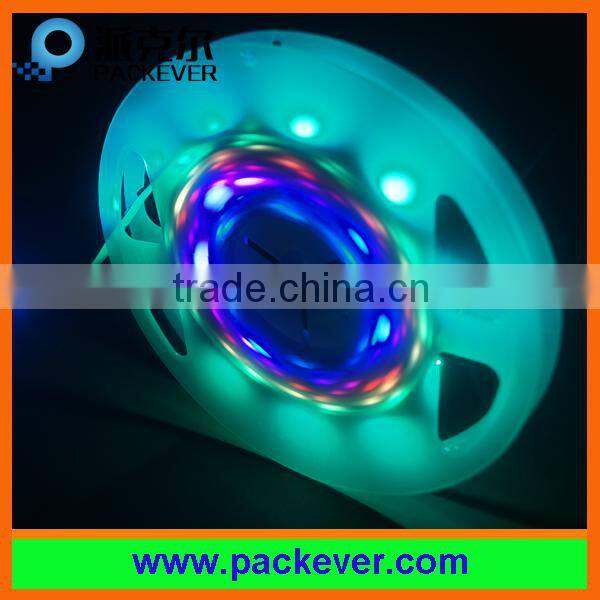

White/black PCB 60LEDs/m SK9822 LED pixel strip
SK9822 IC is also 2 signal IC with DAT and CLK, like apa102s/apa102c, 2016 new design!
Product Name |
Programmable SK9822 Led strip |
Item No. |
PK-FPCB9822-60 |
Power Consumption |
18W/Meter |
Work Voltage |
DC5V |
IC Type |
SK9822 built into 5050 |
LED Qty per meter |
60pcs SMD5050RGB, 60pixels/m |
PCB Color |
Black/white/yellow |
Dimension |
L 5000*W12*H3mm |
Waterproof Grade |
IP40/IP65/IP67/IP68 |
Work Temperature |
-30-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
DC5V programmable 60LEDs SK9822 LED pixel strip Advantage:
1. IC embedded, save space and cost
2. Each one controlled individually, show customized color effects
3. Cuttable for each LED
4. Two lines data, faster and more stable than one data
DC5V programmable 60LEDs SK9822 LED pixel strip Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
CLK: connect to controller CLK
GND: connect to power supply GND & controller GND
IMPORTANT MESSAGE BEFORE BUYING:
1. We have more than 10 items of SK9822 LED strips, if need more information, email or call us now! Accept customized design!
2. Emitting color: normally RGB for decoration
3. SK9822 is very similar with apa102C, can be used by same control system
4. Working with SK LED packaging factory directly, can make us get first hand resource, quality and cost better than others!
| Seq | LED quantity | Pixel quantity | Input voltage | Power | PCB width |
| 1 | 30 | 30 | DC5V | 9w/m | 10mm |
| 2 | 32 | 32 | DC5V | 9.6w/m | 10mm |
| 3 | 60 | 60 | DC5V | 18w/m | 12mm |
| 4 | 72 | 70 | DC5V | 21.6w/m | 12mm |
| 5 | 120 | 80 | DC5V | 36w/m | 12mm |
| 6 | 144 | 144 | DC5V | 43.2w/m | 12mm |
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
