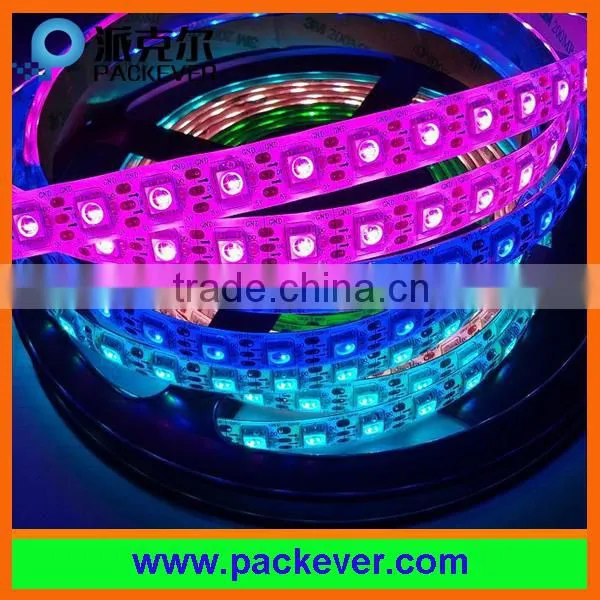

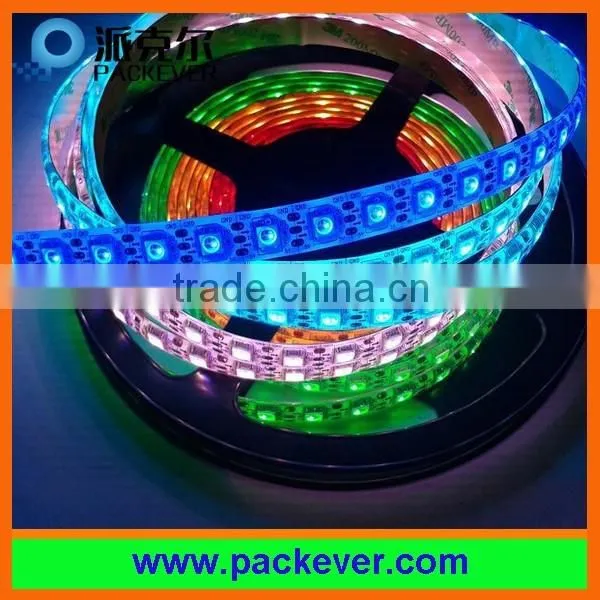

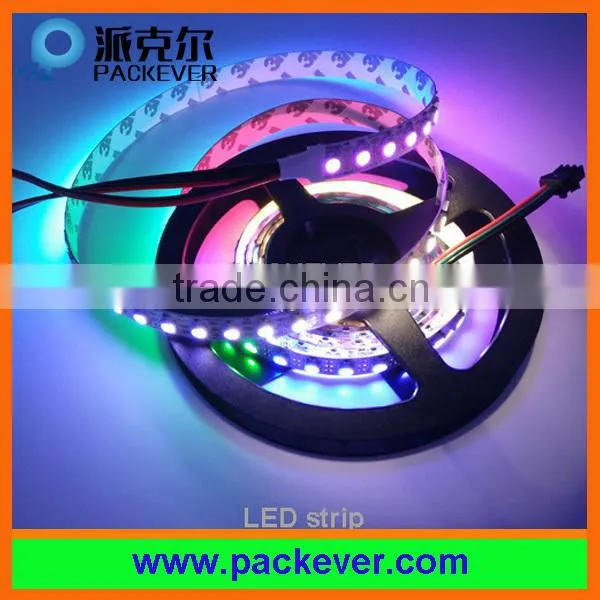

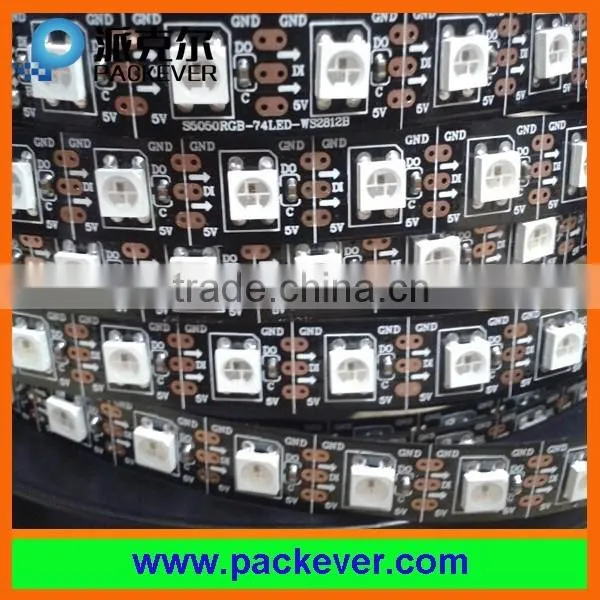

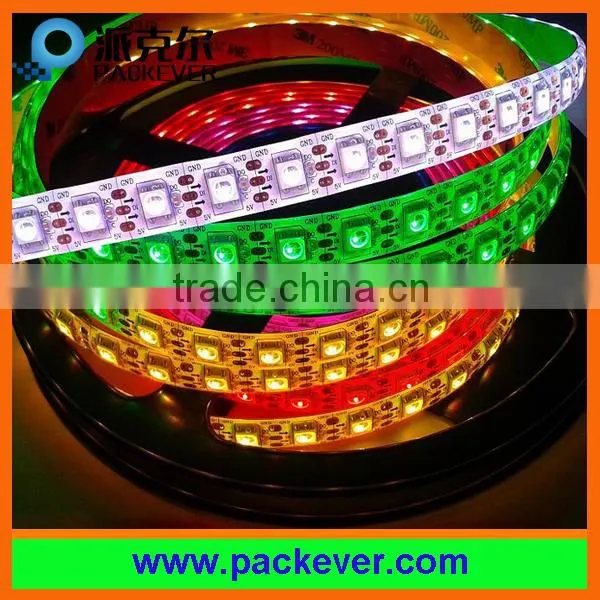

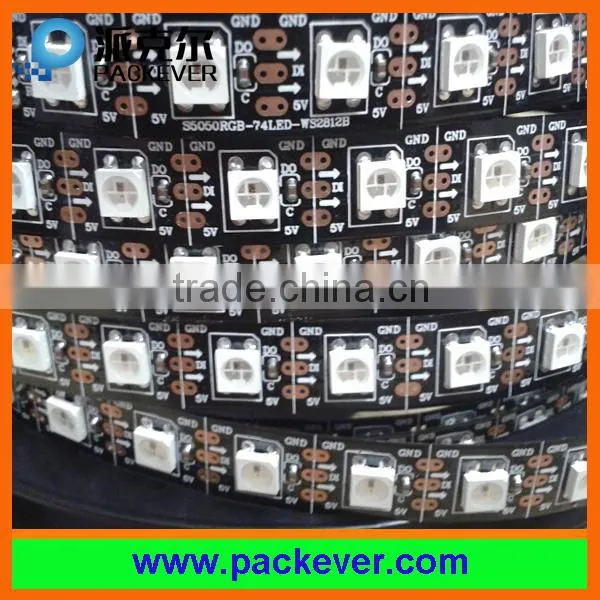

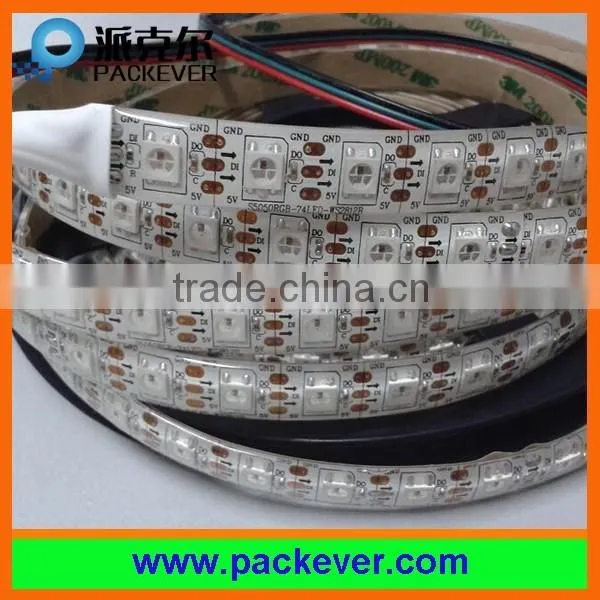

DC5V 74LEDs/m SK6812 RGB LED pixel strip
ws2812B /sk6812 LED can be replaced each other!
SK6812 IC is one type, which is very similar with ws2812B. Can use same control system! As the stability, become more and more popular now!
Product Name |
DC5V 74LEDs/m SK6812 RGB LED pixel strip |
Item No. |
PK-FPCB6812-74 |
Power Consumption |
22.2W/Meter |
Work Voltage |
DC5V |
IC Type |
sk6812 |
LED Qty per meter |
74pcs SMD5050RGB, 74pixels/m |
PCB Color |
white (black is available) |
Dimension |
L 5000*W12*H3mm |
Waterproof Grade |
IP67 (IP40/IP65/IP67/IP68 can be made) |
Work Temperature |
-30-+60°C |
Life-span |
50,000H |
Certificate |
CE&RoHS |
Warranty |
2 years |
SK6812 LED pixel strip Advantage:
1. IC embedded, save space and cost
2. Each one controlled individually, show customized color effects
3. Cuttable for each LED
SK6812 LED pixel strip Connection:
DC+: connect to power supply DC+
DAT: connect to controller DAT
GND: connect to power supply GND & controller GND
IMPORTANT MESSAGE BEFORE BUYING:
1. We have more than 10 items of sk6812 LED strips, if need more information, email or call us now! Accept customized design!
3. Working with LED packaging factory directly, can make us get first hand resource, quality and cost better than others!
| Seq | Input voltage | LED Qty | Pixel Qty | Power | PCB width |
| 1 | DC5V | 30/meter | 30/meter | 9W/m | 10mm |
| 2 | DC5V | 32/meter | 32/meter | 9.6W/m | 12mm |
| 3 | DC5V | 60/meter | 60/meter | 18W/m | 10mm |
| 4 | DC5V | 64/meter | 64/meter | 19.2W/m | 12mm |
| 5 | DC5V | 68/meter | 68/meter | 20.4W/m | 12mm |
| 6 | DC5V | 70/meter | 70/meter | 21W/m | 10mm |
| 7 | DC5V | 72/meter | 72/meter | 21.6W/m | 12mm |
| 8 | DC5V | 74/meter | 74/meter | 22.2W/m | 12mm |
| 9 | DC5V | 80/meter | 80/meter | 24W/m | 10mm |
| 10 | DC5V | 96/meter | 96/meter | 28.8W/m | 12mm |
| 11 | DC5V | 144/meter | 144/meter | 43.2W/m | 12mm |
Didn't find suitable one? Don't worry, contact us right now! More items waiting for you! Customized design is welcome. NDA can be signed to protect market!
How to order:
1. Contact our sales. Our sales will quote for you based on your requirement;
2. Send you proforma invoice to confirm;
3. After confirmation your payment, we will arrange production
4. Goods sent out.
How to pay:
TT, Western Union, Paypal, Moneygram
How to send order:
Our sales will check with you which way to ship goods to you when making proforma invoice. Express, like DHL, FedEx, UPS, TNT, sea and air are available!
Warranty:
We are responsible company. We supply qualified products. All items have warranty time. Normally 2-3 years. When goods some defective, please contact our sales! If the problem was caused by us, we will remake or refund you.
