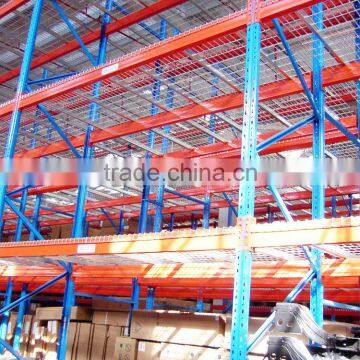

Heavy Duty Wire Mesh Deck Pallet Rack System
US$ 0.8 - 1
MOQ: 3 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Everunion
Model Number:
SPR
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Chinese Selective Storage Pallet Racking SystemUS$ 0.8 - 1.09MOQ: 3000 Kilograms -
2016 Saving 20% Fabric Roll Rack in ChinaUS$ 0.6 - 0.9MOQ: 200 Kilograms
-
Saving 20% Warehouse Store RackUS$ 0.8 - 1.09MOQ: 3000 Kilograms
-
Heavy Duty High Rack StorageUS$ 0.7 - 0.9MOQ: 1000 Kilograms
-
Warehouse Heavy Duty Racking and Storage SystemUS$ 0.8 - 1.09MOQ: 3000 Kilograms
Place of Origin
Jiangsu, China
Brand Name
Everunion
Model Number
SPR
Type
Selective Pallet Rack
Material
Other, Q235b, Q235b steel
Feature
Corrosion Protection
Use
Warehouse Rack
Certification
CE
Depth
800-1500mm
Weight Capacity
MAX 4000KGS per pair of beams
Width
MAX 3.9M
Height
MAX 13M

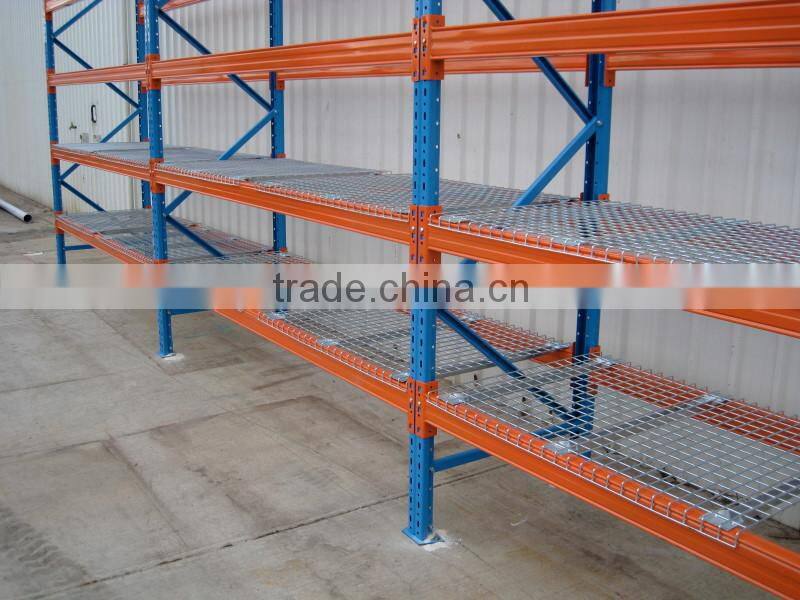

heavy duty wire mesh deck pallet rack system
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1500(mm) | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70,100*80,120*95mm |
||
| Beam | 80/100/120/140/160*50mm | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons | ||
| notes | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
the upright protector
the frame protector
DIR information
DIR is suitable for volume cargo with few categories, it consists of a continuous block of frames ,undivided by aisles.Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets, can realize first in last out arrangement, maximize utility rate of warehouse space.This design does not require cross beams which would block entry.Instead the pallets are put on the continuous rails which are supported by cor-bels on each level.Top and back link bars are configured.
