Home > Lights & Lighting > LED Interior Lighting > LED Panel Light > UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light

UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light

UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-1
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-2
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-3
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-4
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-5
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light thumbnail-6
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-1
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-2
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-3
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-4
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-5
UL DLC Listed 1*4ft 40w 50w Ultra Thin Dimmable Led Panel Light photo-6
Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
epistar
Warranty(Years):
5
Input Voltage(V):
100-277
Contact Supplier Request Quote Chat Now
Up-Shine Lighting Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source epistar
Warranty(Years) 5
Input Voltage(V) 100-277
Lamp Power(W) 40
Lamp Luminous Flux(lm) 3200
Lamp Luminous Efficiency(lm/w) 80
Color Temperature(CCT) Other, 3000k 4000k 5000k
Working Temperature(℃) -20, 45
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP44
Certification CE, UL
Place of Origin Guangdong, China
Brand Name UP-shine
Model Number UP-PL1X4-40W



Product Description

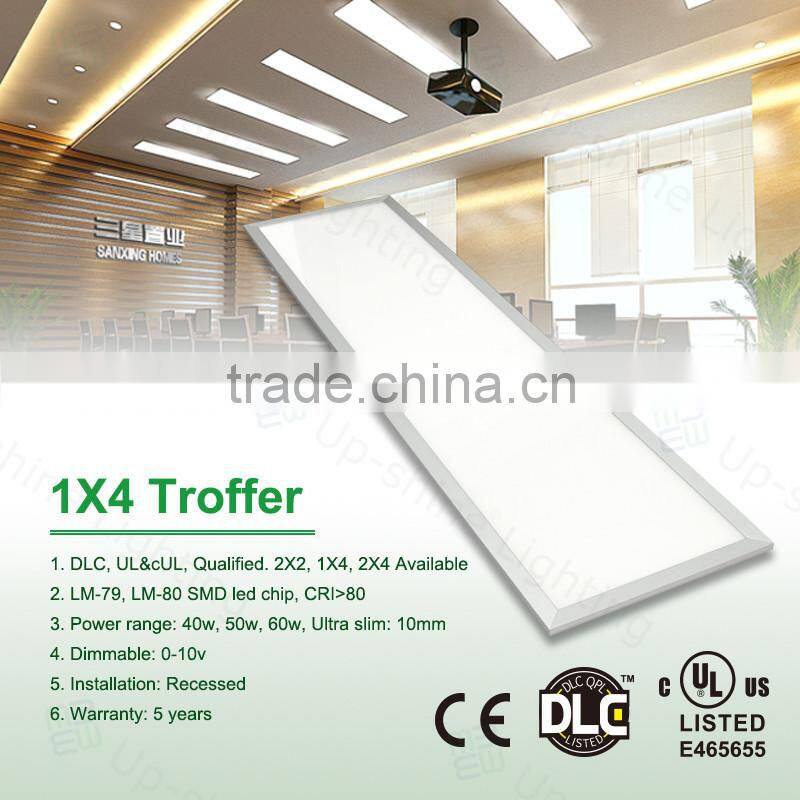

UL DLC listed 1*4ft 40w 50w Ultra thin LED panel light









 Features:



DLC cUL UL dimmable  1x4ft 50w Recessed LED Panel Light   UL cUL:E465655



1.Model number : UP-PL1X4-50W



2.Demension:  303*1213*10mm


3.Voltage: AC100-277V



4.DC32-40V 1400mA



5.LED CRI: >80 LM80 LM79



6. Efficiency: 80LM/W



7. Driver PF: >0.9



8. LEDS: 2835SMD



9. CCT: 3000K 4000K 5000K



10. Beam angle: 120°



11. Lifespan: 50000 hours



12. Warranty: 5 years



13. Certificate: UL cUL



14.  Working temperature:-20°C~+45°C,IP44

UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light



 UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel lightUL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light





Panel light series specification:



UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light





Application:

1.Office Lighting

2.Commercial lighting

3.Warehouse lighting

4.Home lighting

5.Hotel Lighting

5.School lighting

 UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light



Installation:



UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light



Packaging & Shipping





carton size:  131*45*42cm.   4PCS,CTN, 26KG/CTN





Our Services

Why choose us:



  • Price most competitive ,Quality Guaranteed--with 5 floors total, 6000square meters of factory.
  • Promt Delivery--own a high efficiency of Management Team.
  • Led solution Solver--with a comprehenseive Technical Group.

  • Fastest delivery time within 4-7 working days

    Your inquiry to our products will be replied within 24 hours

    Professional advice be offered with practical application

    OEM&ODM service are welcome

    Discount offered is based on the order quantity

    LED chips from USA and others, various of choices depend on your needs



flexible payment terns:



1. 100% TT in advance, paypal , western union



2. 50% deposit + 50% balance before shipment



3. Payment at sight of B/L



4. OA 15 days, OA 30 days, OA 45 days, OA 60 days, OA 90days (contact sales for more details)



5. L/C





OEM and ODM offered.









Company Information





We were set up in 2007, with more than 6 year experience in LED industry.

In June, 2013, we've justed moved to a new industry building, with total 13,000 square meters floor area.



Factory Configurations:

- 3000 square meters warehouse

- 550 square meters conference room

- 500 square meters showroom for display

- 3000 square meters "No dust "workshop, Full-automatic production facilities

- 500 square meters EMC, EMI, IES and other basic testing.

- 1000 square meters driver design and production workshop.



- 7 production lines
- 315 workers
- 58 person sales team
- 42 person R&D team
-ISO 9001: 2008 managed
Current employees: 500
Registered Fund:  21,000,000  RMB



ISO9001:2008 approved company.
Substantial capacity: more than 500,000 pcs monthly



Company Culture
Honesty Culture: Honesty is the foundation of all,being the first rule of every action.
Customer Culture: Nothing is important, but you !
Innovation Culture: Lighting the world through innovation!
Service Culture: Always here for you !
Responsibility Culture : Keep the world Green , reduce power plant emissions, go LED Today !



UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light

UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light

UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light

Quality Control:





  • 100% of the lamps will be tested and keep lighting for 48 hours to test its quality reliability
  •  Then after it is cool we again test 100% of the lamps to see if it still work well.
  •  Each lamp should pass all these QC procedures before shipping to customer.
  • Producing and testing machines:
    Integrating sphere, Digital power meter, Leakage current tester,
    Precision LCR Meter, Digital phosphor
    Oscilloscope,
    EMI Test receiver,
    Programmable constant temperature & Humidity test chamber,
    Oven machine, Lighting distribution Tester
UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel lightUL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel lightUL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light



FAQ





What is your MOQ ? Could I first have a samples order for testing ?

Samples order first available for testing ,MOQ for general order is 200pcs



When could I get the samples after paying ?

Lead time for samples is within 10 days , quantities general order within 2-4 weeks .



Paypal is OK for samples payment ?

Yes ,Paypal is OK for samples .



1. 100% TT in advance



2. 50% deposit + 50% balance before shipment



3. Payment at sight of B/L



4. OA 15 days, OA 30 days, OA 45 days, OA 60 days, OA 90days (contact sales for more details)



5. L/C



How to make a order ?

You could click Rose on-line Via Trade manager .Also , you could contact Rose  via email

UL DLC listed 1*4ft 40w 50w Ultra thin dimmable led panel light
