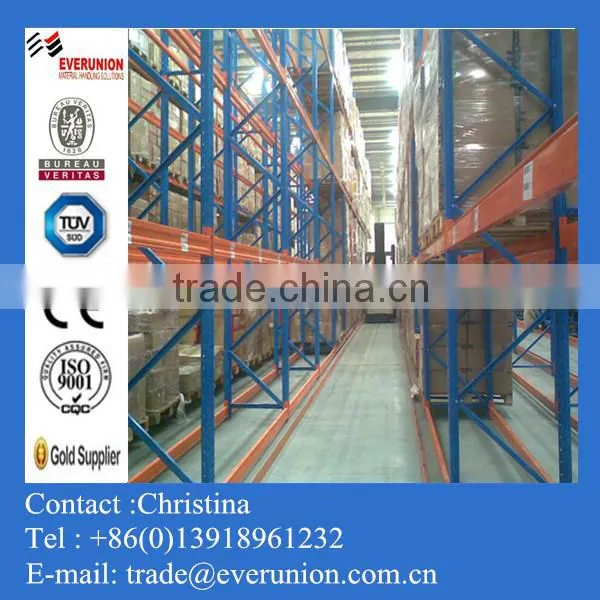

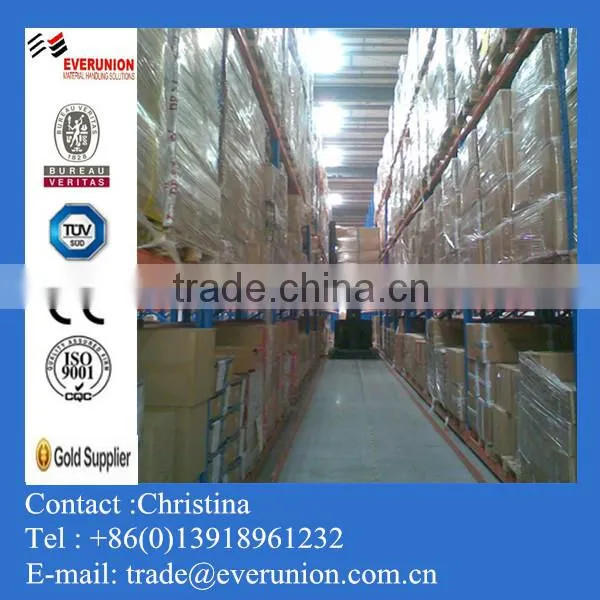

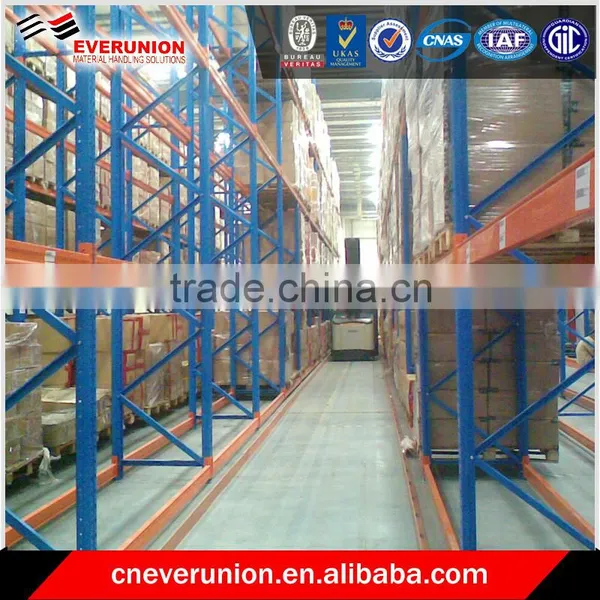

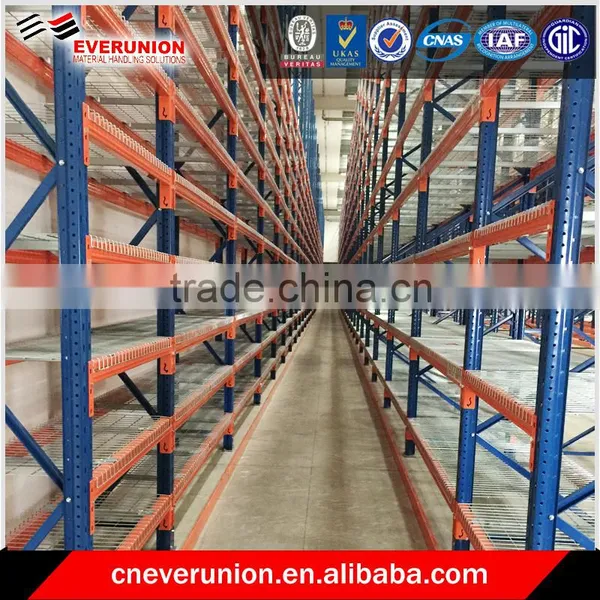

Narrow Aisle warehouse Rack
1.Narrow aisle storage rack makes optimum use of floor area and roof height by providing high density storage
2.It still allows individual access to all pallets.
3.The system is served by specially designed forklift machines with the mast or fork head rotating to left or right as required.
4.Operator cabins may be elevating or static. Aisles are only marginally wider thean the handing equipment.
All kinds of specifications are available :
| Q235b Heavy duty narrow aisle warehouse rack | |
| 1. Features | 1) Beam levers are adjustable in 75mm pitch interval. |
| 2) Different sizes, various specifications and colors are available according to your different needs. | |
| 3) Maximizes space utility ratio while retaining optimum product accessibility. | |
| 4) Strength and rigidity prevents compression damage to goods. | |
| 5) Bottom level of pallets can be stored on the floor, lowering structure costs. | |
| 2. Material: | High grade Q235B Cold Rolled Steel |
| 3. Surface Treatment: | High-quality Powder Coating Finishing. |
| 4. Narrow Aisle Rack Load Capacity & Dimension: | 1) Loading capacity: 500-4000 kgs/pair beam. |
| 2) Height: 1500-13000mm | |
| 3) Depth: single row 800-1200mm ( decided by pallet size) | |
| 4) Length: 1500/2000/2500/2800/3000/3300/3500/3600 (1, 2 or 3 pallets per level, according to pallet size) | |
| Special sizes also available to specific storage needs. | |
|
5. Narrow Aisle Rack Main Parts Specs(mm): |
1) Upright: 90*70*1.8/2.0/2.3 |
| 2) Beams: 100*50*1.5/120*50*1.5/140*50*1.5/160*50*1.5/120*50*2.0/140*50*2.0/160*50*2.0 | |
| 3) Horizontal & diagonal bracings: 38*22*1.5 | |
| 4) Upright Footplates: 90*180*3.5 | |
| 5) Safety locking pins | |
| 6) Bolts & nuts | |
| 7) Anchors and all necessary components. | |
| 6. Certificates. | CE certified, ISO9001, |
| 7. Quick Delivery. | Within 25 days (negotiable), according to quantity |
Special requirements:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level
placement and retrieval
4) Obviously it must have excellent rigidity and close engineering
tolerances
5) Beams at all storage levels unless low profile rails or wire guidance
system adopted
FREQUNT QUESTION ANSWER
1. What makes us different from others?
1) Our Excellent Service
For a quick, no hassle quote just send email to ours
We promise to reply with a price within 24 hours - sometimes even within the hour.
If you need an advice, just call our export office at 0086-021-60958515, we will answer your questions immediately.
2)Our quick manufacturing time
For Normal orders, we will promise to produce within 25 days.
