Narrow aisle rack with three-way forklift,just need very narrow aisle
1.Product description:
Narrow Aisle Rack System (VNA) is one kind of specifical pallet rack.
1.Narrow aisle rack provides high density storage while still allowing individual access to all pallets.
2. Narrow aisle rack must be served by special three-way forklift machine.
3.Very narrow aisle,operating aisle is just about 1.7m.
4.Floor rail must be installed to be with the three-way forklift operation.

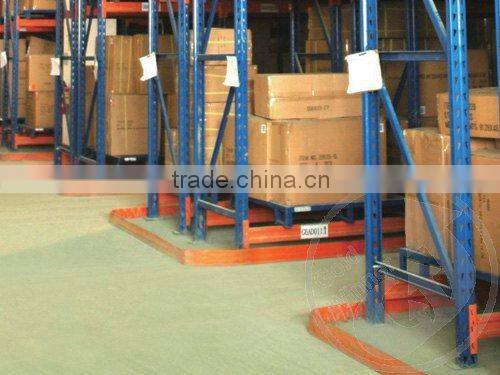

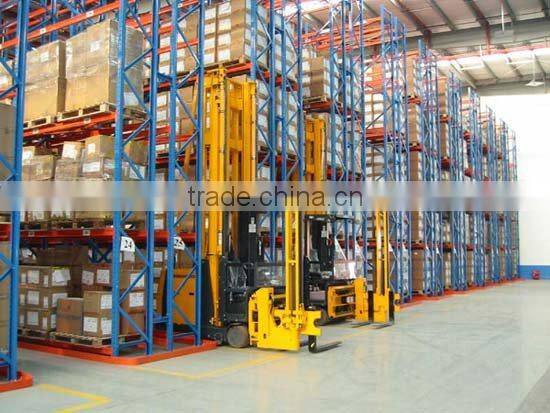

Narrow Aisle pallet Rack photos:
2. Narrow aisle rack Detailed information:
| specification of racks | length | 1200/1900/2300/2700/3300/3600(mm) | |
| depth | 800-1200(mm) | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70,100*80,120*95 | ||
| Beam | 80*50 & 100*50 & 120*50 &140*50 | ||
| thickness | 1.8mm,2.0mm,2.3mm,2.5mm | ||
| capacity/layer | 1-4tons each level | ||

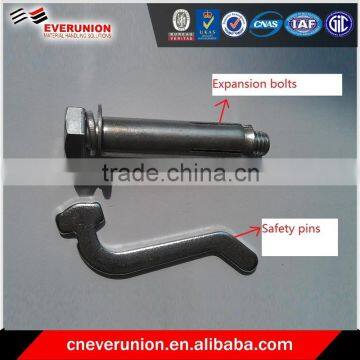

| notes | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
3.Special requirements for narrow aisle racking system:
1) Special VNA forklift truck and guidance systems
2) Very flat engineered floor surface
3) Semi automatic pallet positioning controls for accurate high level placement and retrieval
4) Obviously it must have excellent rigidity and close engineering tolerances
5) Beams at all storage levels unless low profile rails or wire guidance system adopted

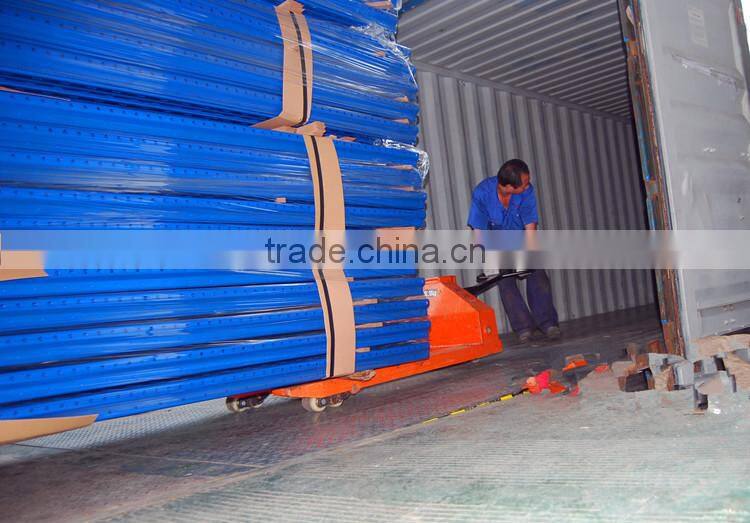

4.Packing & shipping:
1.Experienced export packing uprights and beams' both end with cardboard ,then outside bundled tightenly with plastic belts.
2.According to the customers's special requirement.
3.Very quick delivery,we promise within 15 days after receiving deposit.
5.Our service:
1. After long time’s usage, you can check if the bolts are still tight enough to make the racks more safety;
2. If there is some striking on the upright protector to make it distortion, you can rectify it or contact us for some new;
3. Our racks are assembled, you can adjust them freely based on your actual requests, if need professional guidance, contact freely with our service team for some details.
6.Quotation for floor rail racking:
You can send us your CAD drawing,or pls let us know the following info and we will design drawings for U:
1).Size of your warehouse (Length x Width x Clear height,door location).If possile,pls send us your warehouse drawing.
2).Pallet Size(W*D*H) & the entry direction.
3).How many levels you would like.
4).Loading weight each level.
5).The aisle width for forklift.

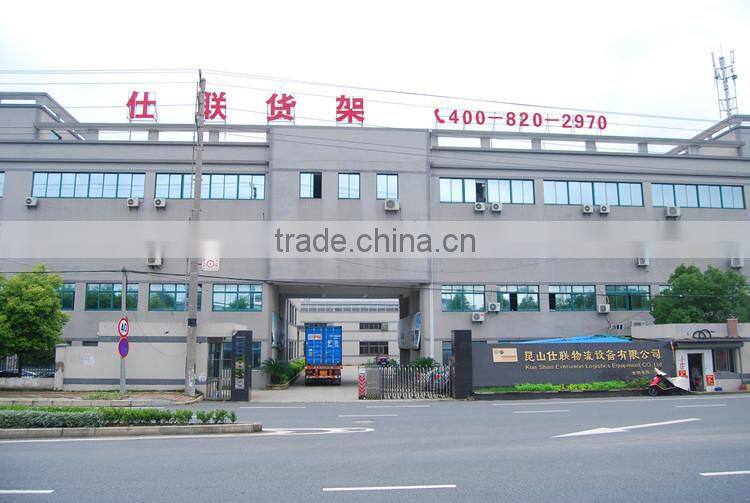

7.Company information:
Company Name |
Shanghai Everunion Logistics Equipment Co.,Ltd |
Location |
Factory is in Kunshan city,convenient transport |
Main products |
Standard pallet racking, Narrow aisle rack and other rack system.. |
Main markets |
Australasia,Europe,Asia,Central America,South America,North Africa ...(more than 80 Countries) |
Annual sales amount |
25 millions US dollar |
Quality |
ISO9001:2008 |
Safety standard |
AS4084 and FEM 10.202 |
Company Concept |
Personality is Product,Standard is Quality |
