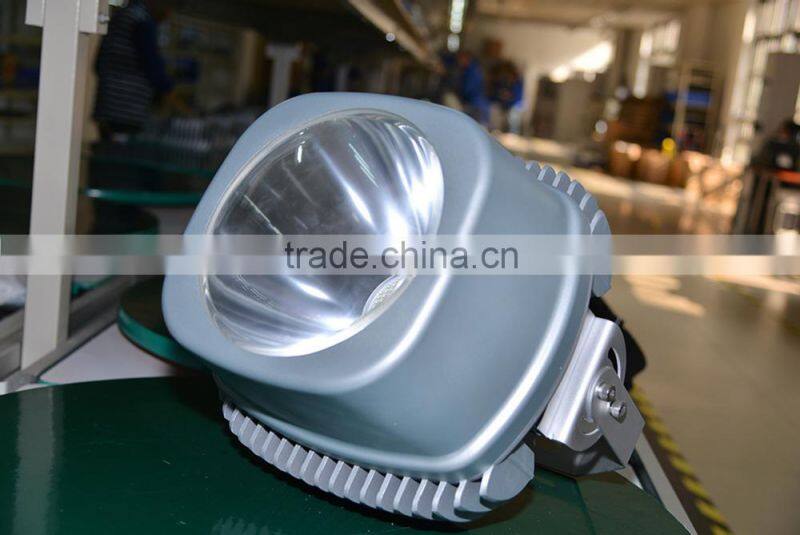

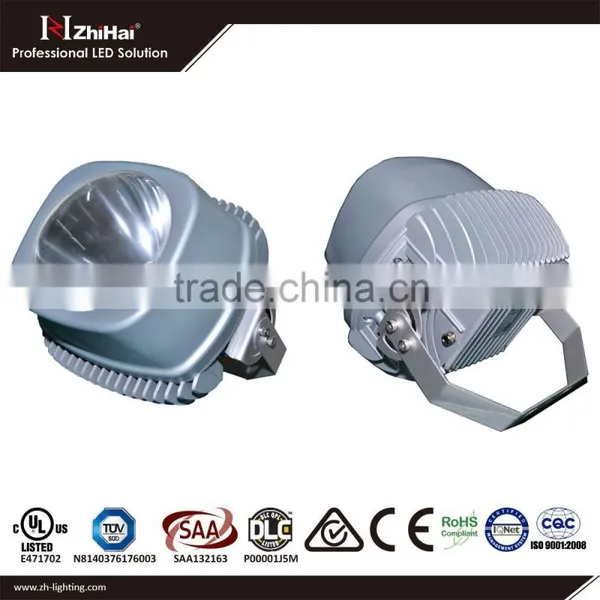

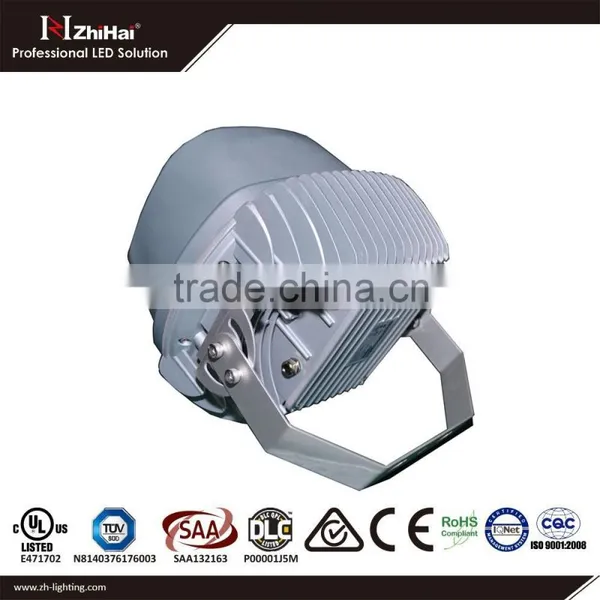

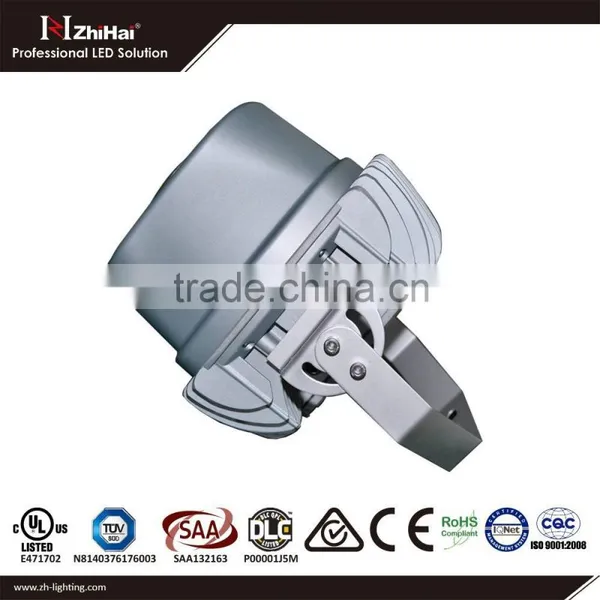

UL,TUV certificated waterproof all in one Newest design LED street Light:
Features & Characteristics of Newest design LED street Light:

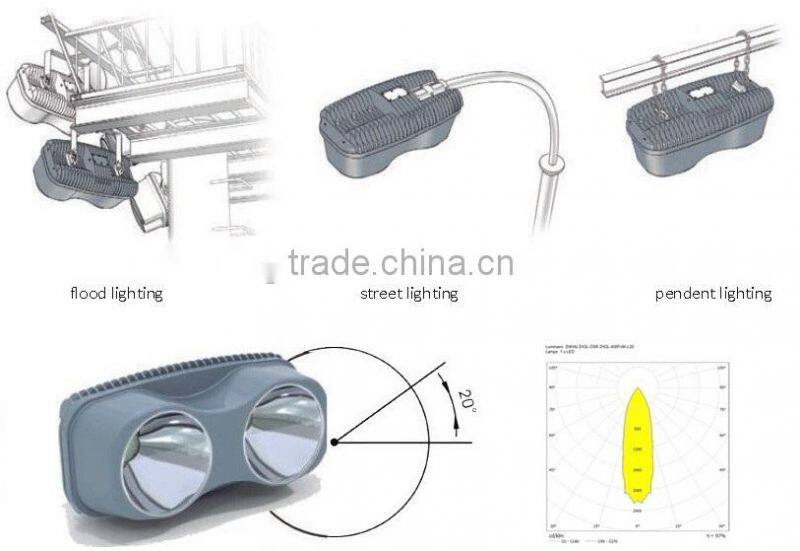

- Patent multi-function design; product can be used as Flood Light, Street Light and Pendant Light
- 20 degree narrow beam angle for long distance lighting, Product Size:670*370*300mm
- Osram OSLON Led Chip; 110l/w high luminous Efficiency ;
- 80% Lumen Maintenance over 50,000 Hours;
- DALI Operating System Available; PIR Motion Sensor Available
- 0-10Vdc Dimming Driver Available; Photocell Sensor System Available;
- Build-in Surge Protection; Thermal Protection; Maintenance Free; Mercury Free; No UV/IR;
- Universal Input Without Additional Adapter;
- Instant Start & Flicker Free;
- High Uniformity & Color Rending;
- DC 12V Or 24V Available for Solar Power;
- High Power Factor To Minimize Total Harmonic Distortaion;
- Newest design LED street Light 400w replace upto 1000W HID Bulbs Accordingly;

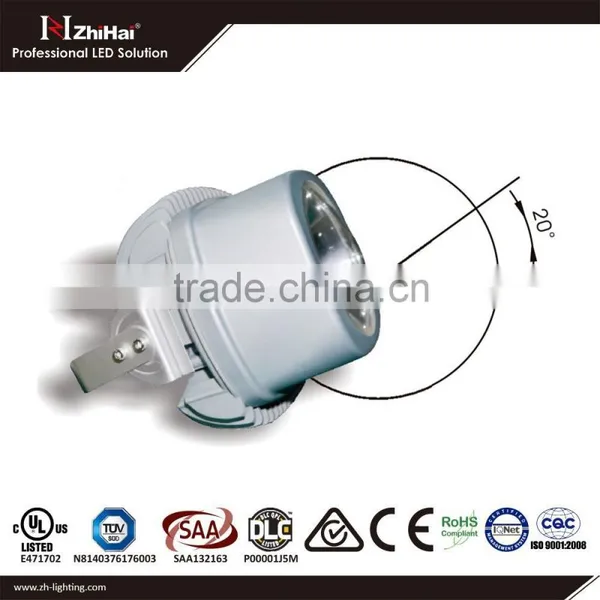

Zhihiai Genius Newest design LED street Light, 20 ° narrow beam angle, 44000lumen:

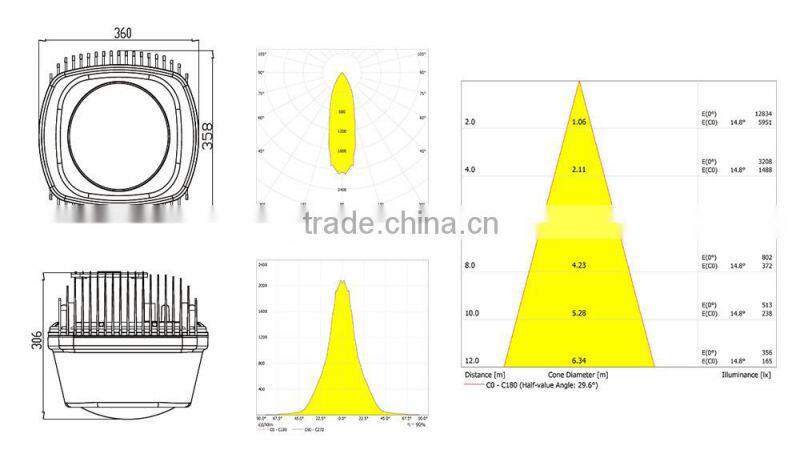

Sizes & Beam angle of high power Newest design LED street Light:

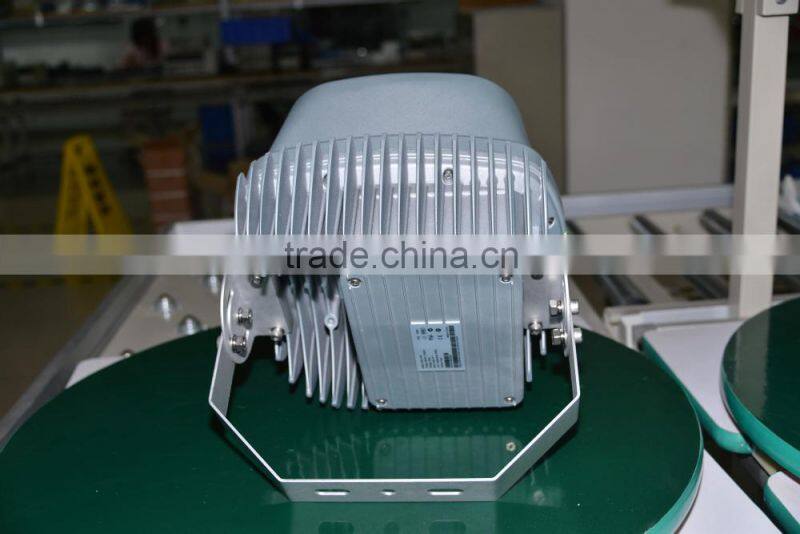

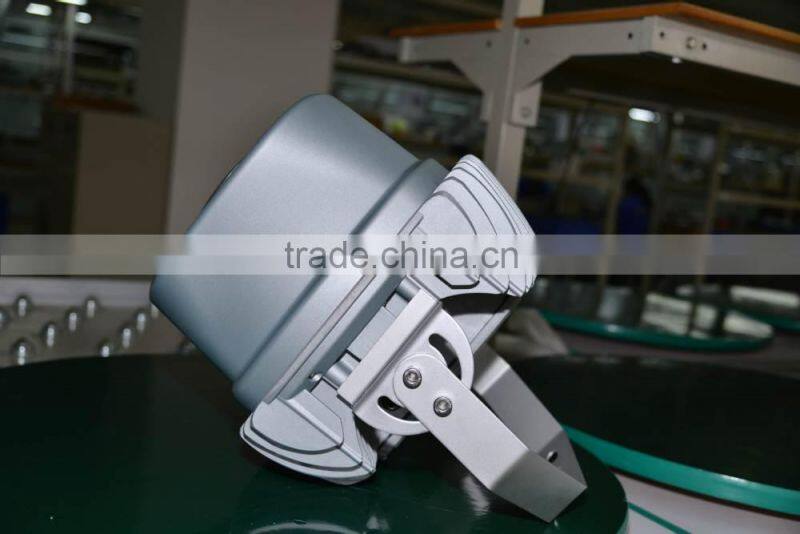

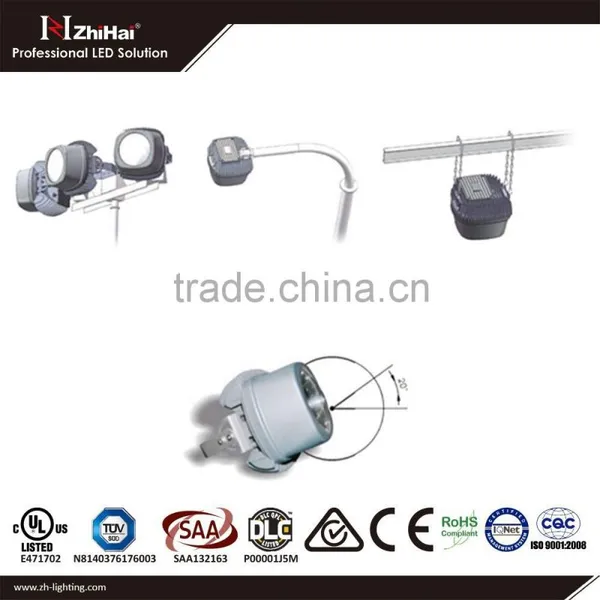

Flexible monting system:
| Model | ZHGL-30P | ZHGL-60P | ZHGL-90P | ZHGL-120P | ZHGL-150P | ZHGL-180P | ZHGL-210P | ZHGL-270P | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3300 lm | 6600 lm | 9900 lm | 13200 lm | 16500 lm | 19800 lm | 23100 lm | 29700 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |
| Dimension | 360x358x306mm | ||||||||
| Net Weight | 10kg (22lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||

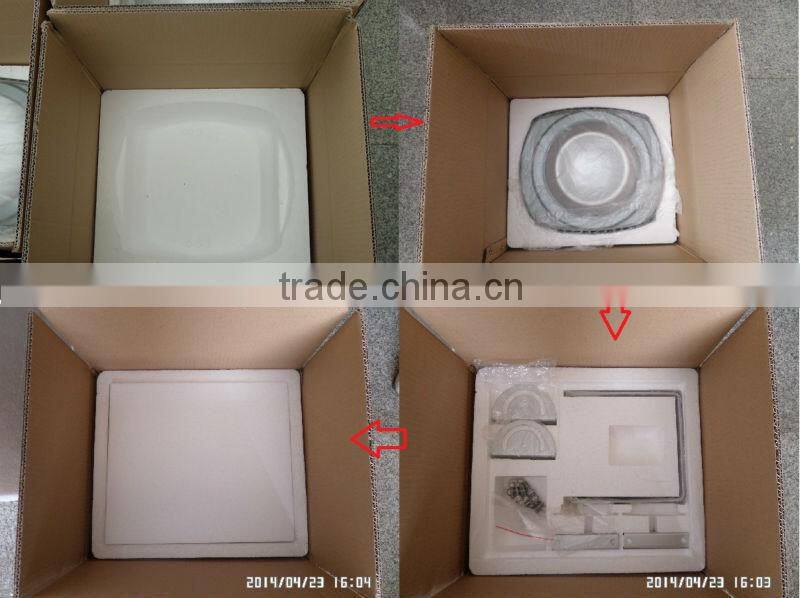

Packing information for Newest design LED street Light:
| Model | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-30P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-60P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-90P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-120P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-150P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-180P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-210P | 9.6 | 13/15 | 430*430*420 | 1 |
| ZHGL-270P | 9.6 | 13/15 | 430*430*420 | 1 |

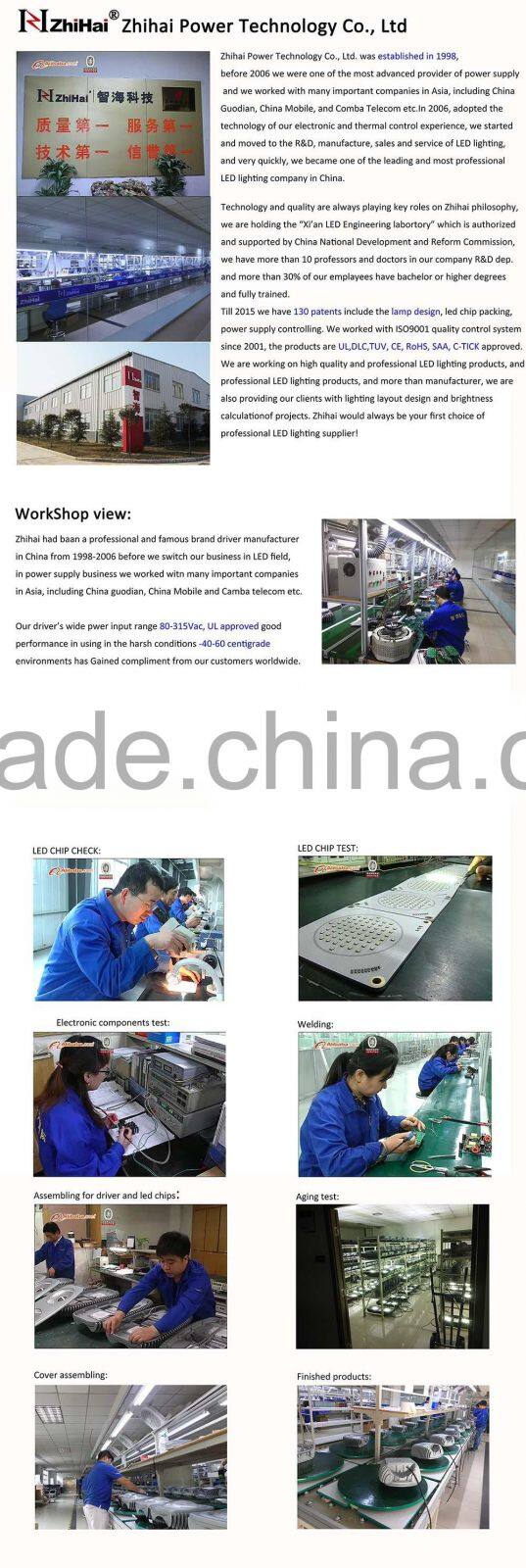

Company information of Newest design LED street Light:
Xian Zhihai Power Technology co., Ltd is a professional manufacturer and exporter of LED Industrial Lighting in China since 1998.
Our current main products including:
1- LED Flood Lighting Series
2- LED Street Lighting Series
3- LED High Bay Lighting Series
Zhihai Power already have regular customers from the U.S, U.K, Germany, France, Spain, Netherlands, Italy, Russia, Brazil, Colombia, Canada, Israel, Turkey, Indonesia, Egypt and 20 other western countries and regions.
We welcome more potential buyers to join us and establish friendly cooperation to get mutual benefits.
1. Why you should trust Zhihai?
1) Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company,
2) Zhihai Power is an officially registered company both in China and Hong Kong.
3)Zhihai Power hold one and only “LED Lighting Engineering Laboratory”which is authorized and supported by china national development and reform commission.
4) We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery..
2. Why choose Zhihai as your business partner?
1) Professionalism: Zhihai Power has 9+year's exportation experience in LED Industrial Lighting products in china. We provide you professional service one to one
2) Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
3) Fast delivery: The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment..
4) Warranty: We gurrantee our customer 3 or 5 years after sale service..
5) Competitive Prices: Xian Zhihai offers you competitive and reasonable market price.

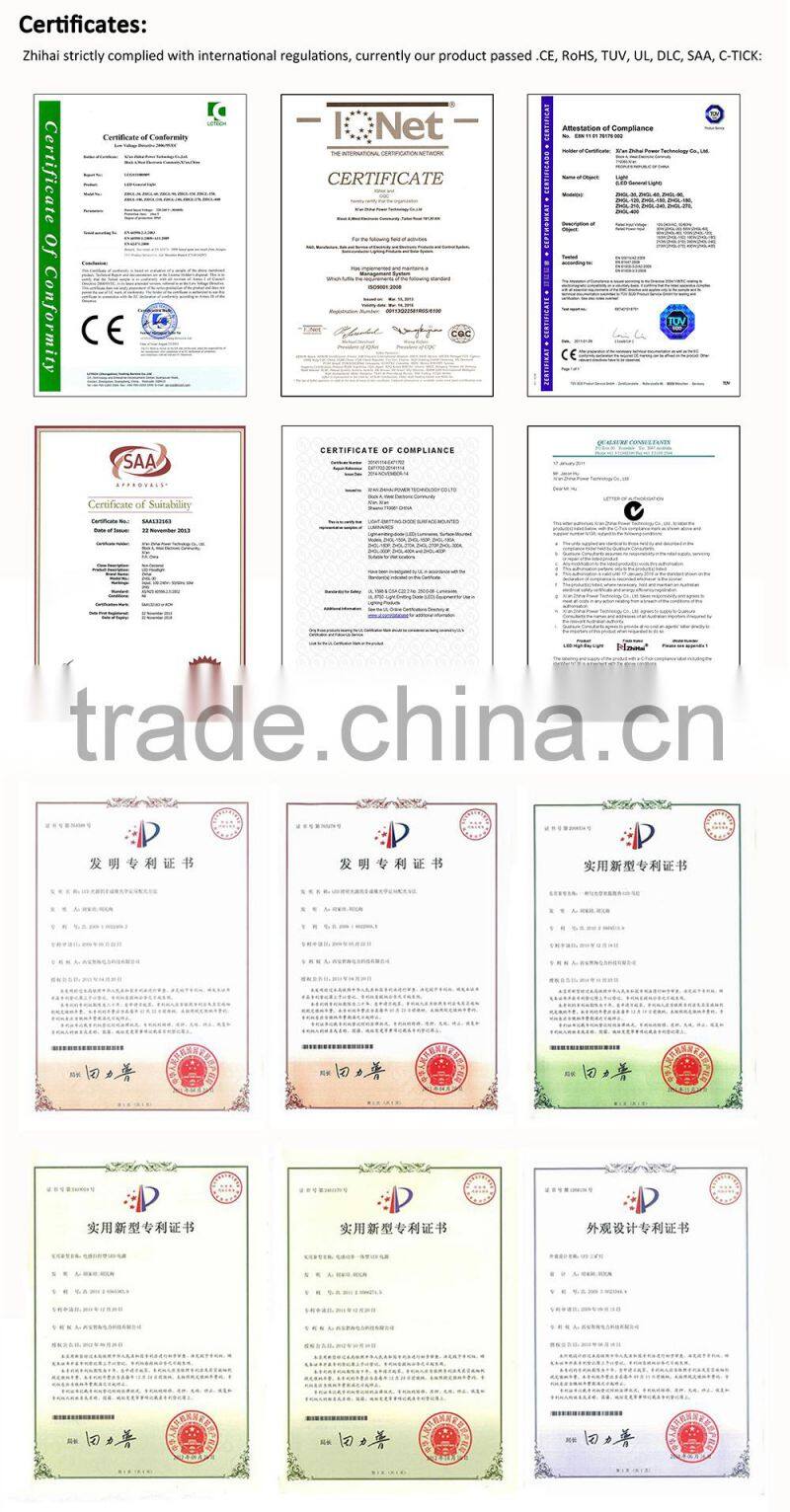

Certificates and patents of Newest design LED street Light:

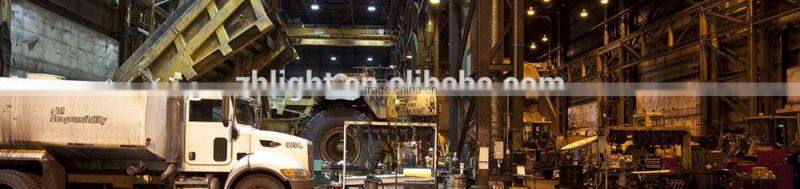

Project of Newest design LED street Light:

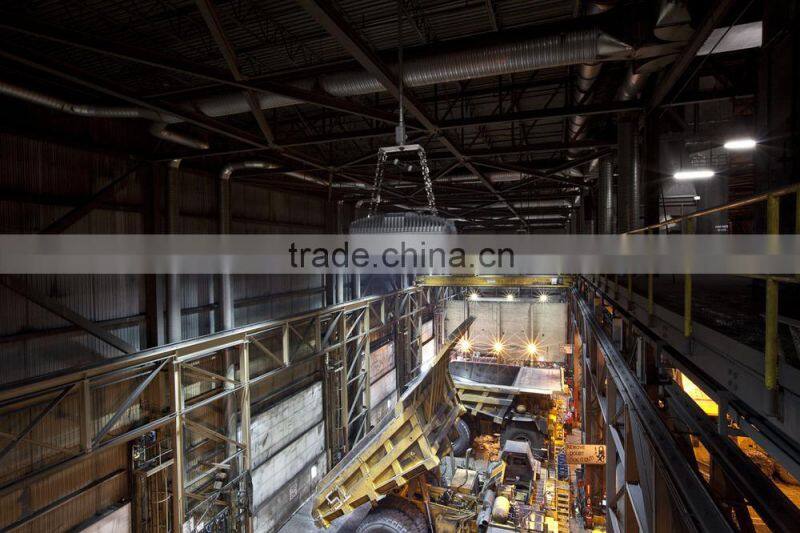

Project 1, Coal field in Australia.

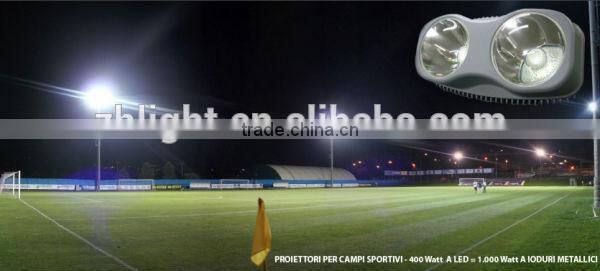

Project 2, football field.
Project 3, valencia port:
Order informatioins of Newest design LED street Light:
1. we have very skilled worker which can answer you with flunent english in 24 hours.
2.We provide free Dialux Lighting Design service.
3.Payment terms: EXW, FOB or CIF
4.Lead time: 4-15 working days according to the order quantity.
5.MOQ: 1 pcs.
6.Payment Terms: T/T, Western Union or Paypal for sample, T/T L/C for bulk order.
7.After Sale Service: 3 or 5 years option selectable and more than that, if any damage happened during the warranty period we will replace you a new part for free instaed of just repair to make sure you can resell it as a new model. .
Q1. Are you a trading company or factory?
We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001quality standard since 2001 and we are the TUV audited manufacturer.
Q2. How much will the shipping cost of Newest design LED street Light?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3. How can I make orders of Newest design LED street Light?
Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-15 days for bulk order
We accept mini order.
Q4.How do you ensure the quality of Newest design LED street Light?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q5.How do you deal with damaged product during your warranty period?
As a 8 years professional manufacturer, the most thing we always pursuing is to make brilliant product, in case any fault occured during the warranty period, we will replace you a new part and send to you for free.
Q6.Do you offer free sample of Newest design LED street Light?
Sample are not free, we charge the same price as bulk order.
Q7.How long can I get your reply?
We respond to every inquiry within 24 hours.
Dear Friend, here you have finished visiting the whole page of Newest design LED street Light, Please kindly let us know your need or leave us any inquiry or suggestion about our product or us, we will be pleased to be at your service!
Thanks for your visiting!
