Specifications
steel racks for steel plate with corbel1.ISO9001: 2008 certificated
2.first in last out
3.Space savable racks

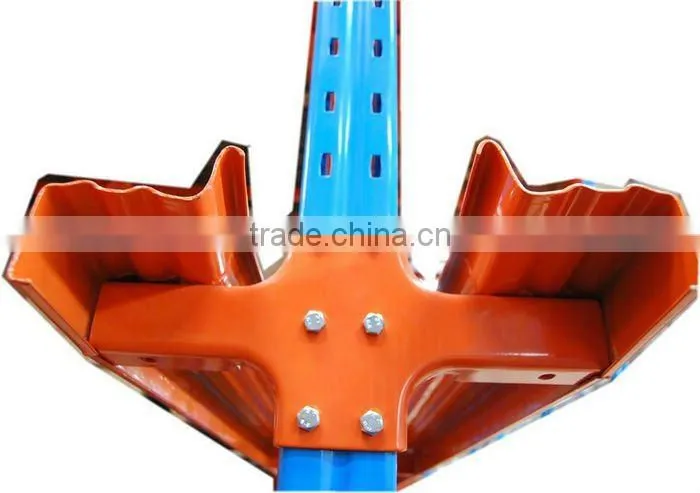

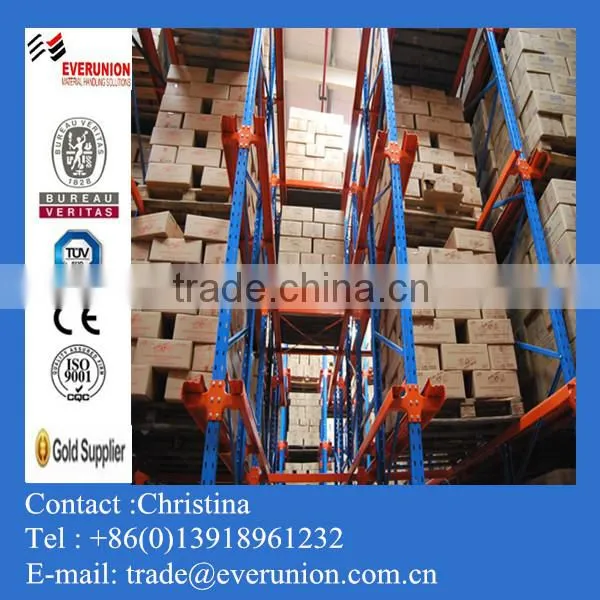

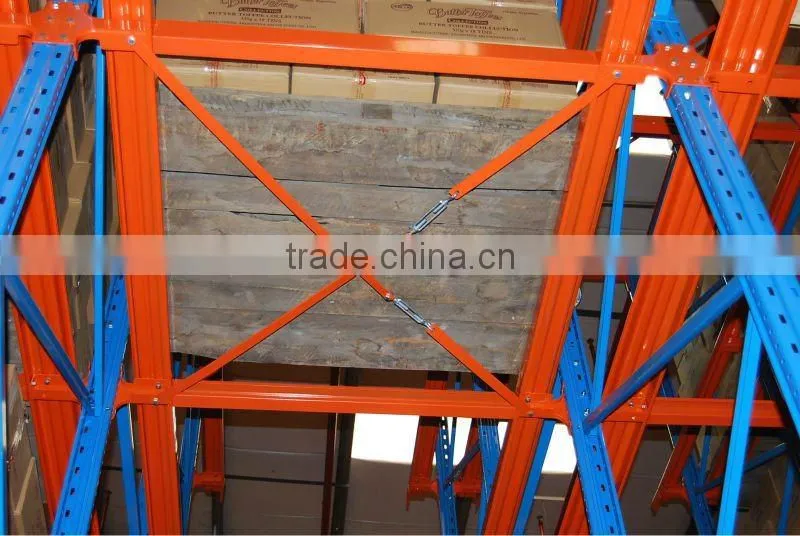

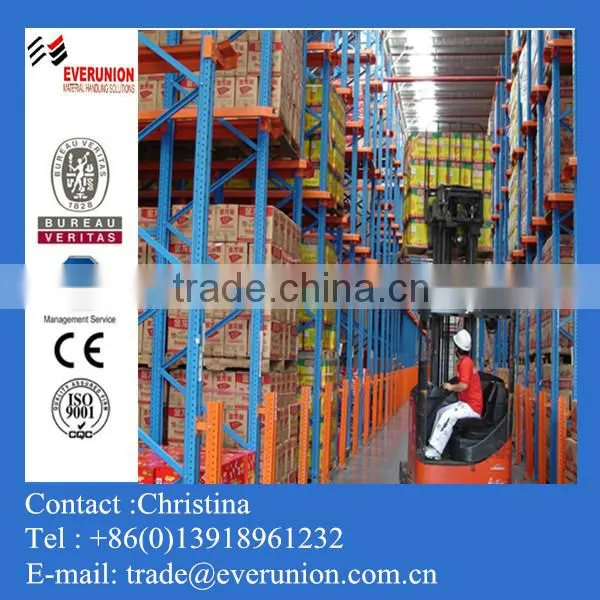

steel racks for steel plate with corbel
1."First in last out " storage style .
2.Forklift can drive through the aisle to pick and load pallets.
3.It can improve the storage sufficiency .
4.Guide rail should be installed on each level .
5.High storage sufficiency .
6.Slow picking but low cost.
7.Suitable for items with large quantity .
1. Quotation requirements: kindly inform us the info as below
- Drawing (ifavailable) of rack. or CAD design service
- Size ofyour warehouse (Length x Width x Clear height)
- Size(W*D*H) & weight of pallet (after loading)
- How many palletsin one deep you would like
- How manylevels you would like
2. Everunion - Specifications of drive-in racking
Frame |
Height (3-15m) |
Depth (800-1,200mm) |
Upright section: 90 x 70; 100 x 80; 120 x95mm | ||
Thickness: 1.8/2.0/2.3/2.5mm | ||
Guide rail |
Length (1500-9000mm) /2-7pallets deep |
|
Thickness: 2.0/2.3mm/2.5mm | ||
Load capacity |
1-3Tons/Layer |
|
Others |
-MOQ. 10 sets -Pitch: 75 or 76mm or 76.2mm -Delivery time: 7-20days -Payment term. T/T (30% down payment) or L/C at sight -Necessary accessories: for free(bracing, base plate, etc) -Packing: stretch film & carton - Surface treatment: powder coated -Production capacity: 800T/month -Main market: more than 40countries, such as Australia, Europe, Asia, Central America, South America, North Africa and etc. -Available in various colors/specifications/sizes |
|
1.steel racks for steel plate
welcome to our website www.cneverunion.en.china.cn
