ISO CE TUV drive in pallet racking

Specifications

ISO CE TUV drive in pallet racking
1).High density storage;
2).Picking goods by pallet;
3).First in last out;
4).One year w

1. Material is steel Q235, high-quality steel from shanghai everunion logistics equipment co.,ltd ., the top 5 steel manufacturer in China;

2. Samples could be supplied for you in 3 days;

3. Products could be customed as your request;

4. Warranty is one year if not artificial reasons!

5. Matters not mentioned herein, could be discussed! O(∩_∩)O

Drive in pallet rack requires fewer aisles, allowing you to store up to 75% more pallets in the same space.

Heavy Duty Drive-In pallet Rack for High-Density Storage:

Drive-In Rack allow a lift truck to enter the rack from one side to pick up or pull out pallets.

This is done because pallets can slide backwards on a continuous rail.

Forklifts drive into the rack to access pallets two or more deep.

You are limited in the depth of storage for a particular bay by the size of your facility.

Drive-In rack are typically subject to more abuse than selective racks due to the way they are utilized, so rack integrity and strength are important factors. It is ideal rack for cooler or freezer applications.

Last-in,first-out arrangement for your pallets

Drive-In rack offer the ability to store a large amount of similar loads in a smaller area. Selectivity is sacrificed, but storage density is outstanding. Drive In Rack can store up to 75% more pallets in the same space than selective racking -- depending on your application. It requires fewer aisles and is better cubic storage.



one side.

When should you specify Drive-In Pallet Rack?

1. Drive-In Warehouse Rack is used to store many pallets of a similar product. Lift trucks drive into the rack to extract the first pallet they come to. This is "Last-In, First-Out" storage.

2. Drive-In Rack are widely used in cold storage applications, due to the need to store as many pallets as possible in as little expensive freezer space as possible.

3. When you have seasonal items that move quickly out of your inventory.

4. When you have a large amount of similar items that can be stored in a single pallet position and accessed last-in, first-out

5.If you don't store a wide variety of loads in the rack.

Drive in Pallet Rack Load Rail Design:

Load Rails are constructed of durable structural angle steel, providing increased strength and abuse resistance. Standard features include:

1. Structural angle rails "guide" pallets, ease of use and durability

2. Flared rail entry ends allow easy bay access

3. Space-saver low profile arms increase clearance and decrease possible product damage

4. Welded rail stops prevent loads from being pushed off, improving safety

5.75mm vertical adjustability

6. Welded aisle-load arms to eliminate hazardous load projections into aisles

7. Grade 5 hardware



Feature of drive in pallet rack:
Surface treatment:	power coated;
Packing:	Neutral paper box or in bulk or upon clients requirements;
Size	As customer's request;
Container load:	10-15 ton per 1x20 container, 20-25 ton per 1x40 container
Payment terms:	TT/ Sight LC
MOQ:	1*20ft container
Delivery terms:	10 days for 1x20 container,  20 days for 1x40 container

Quick Instruction for Business of drive in pallet rack:

1.	Drawing (if available)
2.	Size of your warehouse
3.	Size of racking (H*W*L)
4.	How levels of the racking?
5.	Loading capacity of each level?
6.	(RAL) Color you want.

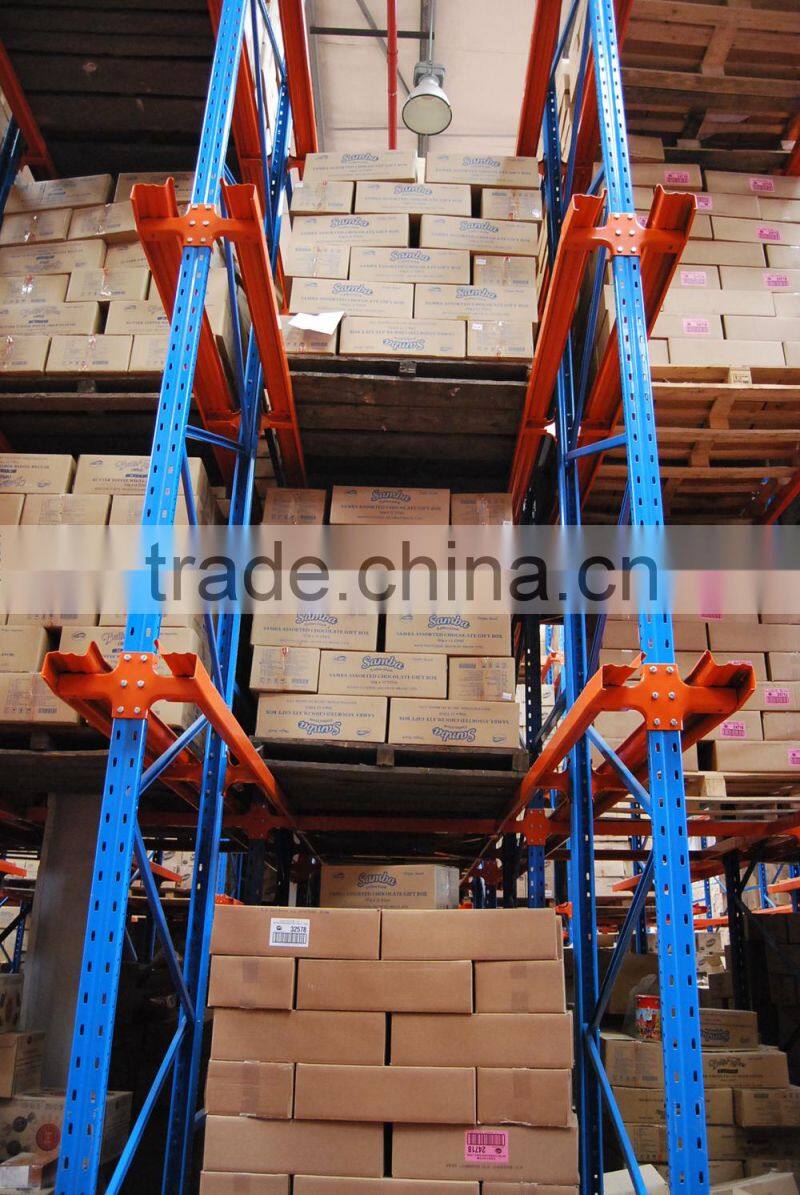

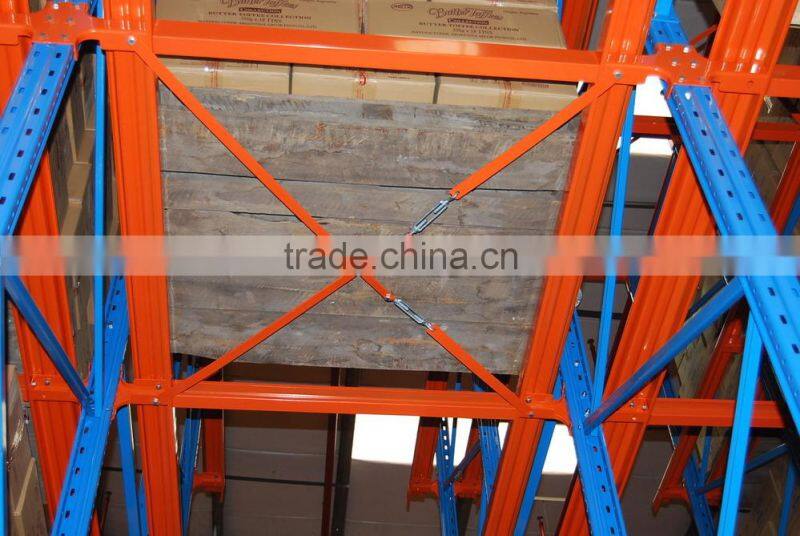

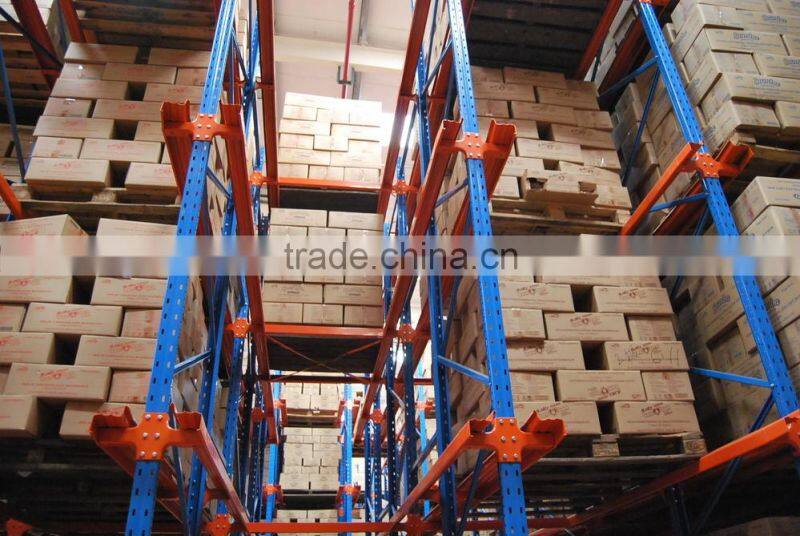

Drive in pallet rack Showcases:
