CE RoHS Super brightness 120W 150W Modular Design Led Street Light Fixtures:
Quick Details:
1. 30w-270w power range
2. 120lm/w luminous efficiency
3. UL, TUV, CE, RoHS, SAA, C-Tick approved
4. 3 or 5 Year warranty
Features & Characteristics for die cast aluminum led street light fixtures:
1. Patent multi-function design; product can be applied to flood light, street light and pendant light
2. Osram OSLON Led Chip;120l/w System Efficiency ;
3. 80% Lumen Maintenance over 50,000 Hours;
4. DALI operationg system, 0-10Vdc Dimming Driver Available; Photocell Sensor System are Available;
5. Build-in Surge Protection; Thermal Protection; Maintenance Free; Mercury Free; No UV/IR;
6. Universal Input Without Additional Adapter;
7. Instant Start & Flicker Free;
8. High Uniformity & Color Rending;
9. DC 12V Or 24V Available for Solar Power;
10. High Power Factor To Minimize Total Harmonic Distortaion;
11. die cast aluminum led street light fixtures replace upto 600-800W HID Bulbs Accordingly;
| Model | ZHGL-30A | ZHGL-60A | ZHGL-90A | ZHGL-120A | ZHGL-150A | ZHGL-180A | ZHGL-210A | ZHGL-270A | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3600 lm | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | 25200 lm | 32400 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |
| Dimension | 360x323x163mm | ||||||||
| Net Weight | 8kg (17.6lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||
Zhihai Genius die cast aluminum led street light fixtures:
Flexible monting system of die cast aluminum led street light fixtures:
Beam angle option of die cast aluminum led street light fixtures:
Packing and shipping information for die cast aluminum led street light fixtures:
| Model | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-30A | 8 | 12 | 430*430*320 | 1 |
| ZHGL-60A | 8 | 12 | 430*430*320 | 1 |
| ZHGL-90A | 8 | 12 | 430*430*320 | 1 |
| ZHGL-120A | 8 | 12 | 430*430*320 | 1 |
| ZHGL-150A | 8 | 12 | 430*430*320 | 1 |
| ZHGL-180A | 8 | 12 | 430*430*320 | 1 |
Company information of die cast aluminum led street light fixtures:
Xian Zhihai Power Technology co., Ltd is a professional manufacturer and exporter of LED Industrial Lighting in China since 1998.
Our current main products including:
1- LED Flood Lighting Series
2- LED Street Lighting Series
3- LED High Bay Lighting Series
Zhihai Power already have regular customers from the U.S, U.K, Germany, France, Spain, Netherlands, Italy, Russia, Brazil, Colombia, Canada, Israel, Turkey, Indonesia, Egypt and 20 other western countries and regions.
We welcome more potential buyers to join us and establish friendly cooperation to get mutual benefits.
Why you should trust Zhihai Power Technology Co., Ltd?
1 ) Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company,
2 ) Sharing Digital is an officially registered company both in China and Hong Kong.
3)Zhihai Power hold one and only “LED Lighting Engineering Laboratory”which is authorized and supported by china national development and reform commission.
4) We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery..
2. Why choose Zhihai Power Technology Co., Ltd as the business partner in the field of LED Industrial Lighting?
1 ) Professionalism: Zhihai Power has 9+year's exportation experience in LED Industrial Lighting products in china. We provide you professional service one to one
2 ) Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
3 ) Fast delivery: The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment..
4 ) Warranty: We gurrantee our customer 3 or 5 years after sale service..
5) Competitive Prices: Xian Zhihai offers you competitive and reasonable market price.
Certificates and Patents of die cast aluminum led street light fixtures:

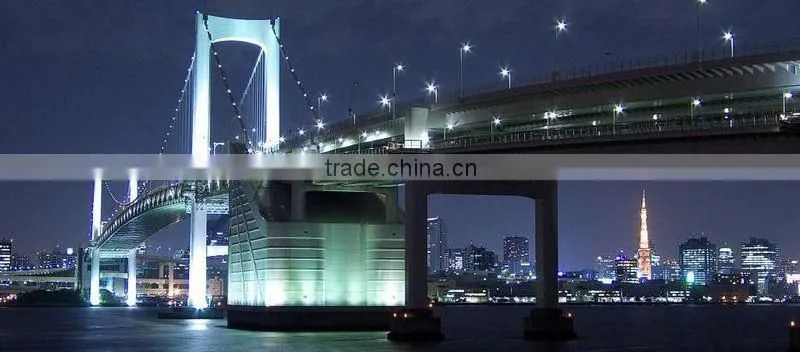

Projects for die cast aluminum led street light fixtures:
1. cross-sea bridge in Russia
2. Ice hockey field in Netherlands.
3. Warehouse wall mount in Australia.
Our service of die cast aluminum led street light fixtures:
1. we have very skilled worker which can answer you with flunent english in 24 hours.
2.We provide free Dialux Lighting Design service.
3.Payment terms: EXW, FOB or CIF
4.Lead time: 4-15 working days according to the order quantity.
5.MOQ: 1 pcs.
6.Payment Terms: T/T, Western Union or Paypal for sample, T/T L/C for bulk order.
7.After Sale Service: 3 or 5 years option selectable and more than that, if any damage happened during the warranty period we will replace you a new part for free instaed of just repair to make sure you can resell it as a new model. .
Q1. Are you a trading company or factory?
We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001quality standard since 2001 and we are the TUV audited manufacturer.
Q2. How much will the shipping cost of die cast aluminum led street light fixtures?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3. How can I make orders of die cast aluminum led street light fixtures?
Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-15 days for bulk order
We accept mini order.
Q4.How do you ensure the quality of die cast aluminum led street light fixtures?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q5.How do you deal with damaged product during your warranty period?
As a 8 years professional manufacturer, the most thing we always pursuing is to make brilliant product, in case any fault occured during the warranty period, we will replace you a new part and send to you for free.
Q6.Do you offer free sample of die cast aluminum led street light fixtures?
Sample are not free, we charge the same price as bulk order.
Q7.How long can I get your reply?
We respond to every inquiry within 24 hours.
Q8. Where to use your lamps?
Street, Bridge, Architecture, Warehouse, Stadium, Tunnel, Garden, Parking, Billboard, Plaza, Show Room, Factory, Shopping Mall, Petrol Station, Confenence Center, Cold Bridge or any please or application concerning industrial, architectural or sports.
Dear Friend, here comes the end of die cast aluminum led street light fixtures, what do you think of it, please leave us feed back by inquiry, we will be pleased to be at your service.
