Heavy duty drive in pallet racking with guide rail
1.Drive in rack is designed for the storage of homogenous products.
2.It accommodates a large number of pallets for each SKU(stock keeping unit).
3.This system makes better use of the floor area and height space than any other.
DIR is suitable for volume cargo with few categories, it consists of a continuous block of frames ,undivided by aisles.Trucks can drive right into the center of the block between any uprights on the front face to pick up pallets, can realize first in last out arrangement, maximize utility rate of warehouse space.This design does not require cross beams which would block entry.Instead the pallets are put on the continuous rails which are supported by cor-bels on each level.Top and back link bars are configured.
1.Upright: 3m-13m / 90 x 70, 100 x 90 & 120 x 95mm.
2.Thickness of upright: 1.8mm, 2.0mm, 2.3mm, 2.5mm
3.Material:Q235B
4.Guide beam: 80 x 50 x 1.5mm
5.good pre-sales and after-sale service
6.Depth: 800 to 2,400mm
7.Loading capacity of each level: 1,000 to 3,000kg
8.Strict QC department has been settled
9.This design does not require cross beams .
10.Pallets are put on the continuous rails .
Two way corbel & top crossing:
Company Name |
Shanghai Everunion Logistics Equipment Co.,Ltd |
Location |
Factory is in Kunshan city,convenient transport |
Main products |
Standard pallet racking and other type racks |
Main markets |
Australasia,Europe,Asia,Central America,South America,North Africa ...(more than 40 Countries) |
Annual sales amount |
25 millions US dollar |
Quality |
ISO9001:2008 |
Safety standard |
AS4084 and FEM 10.202 |
Company Concept |
Personality is Product,Standard is Quality |

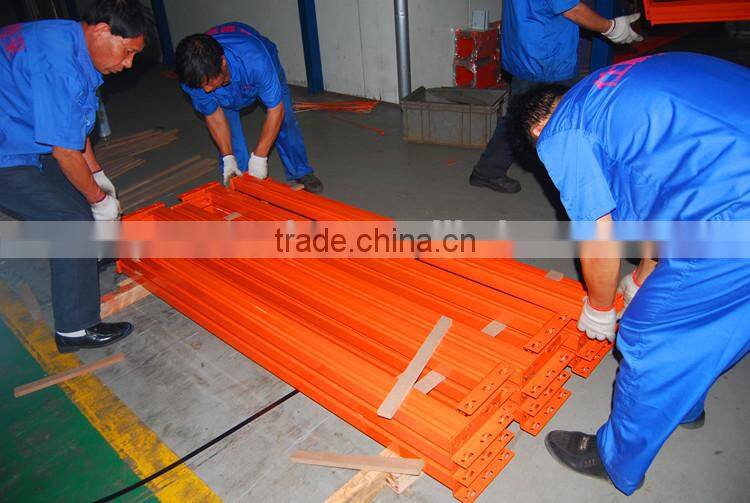

Experienced export packing:
(1)both uprights and beams end with cardboard ,then outside bundled tightly with plastic belts.
(2)paper cartons for accessories.
(3)according to your requirements.
