ISO9001:2008 direct factory double-deep pallet racking

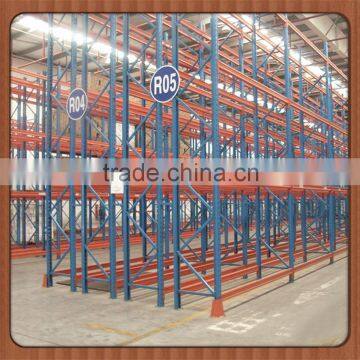

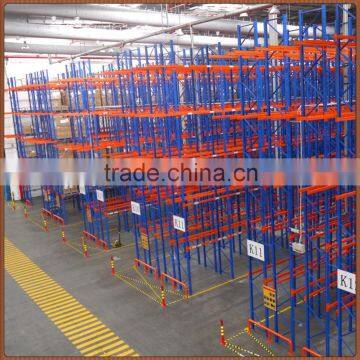

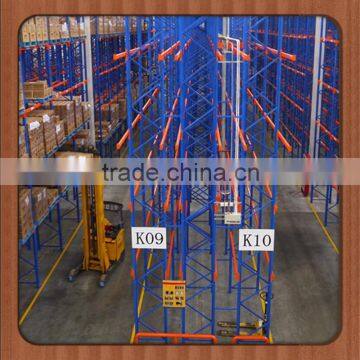

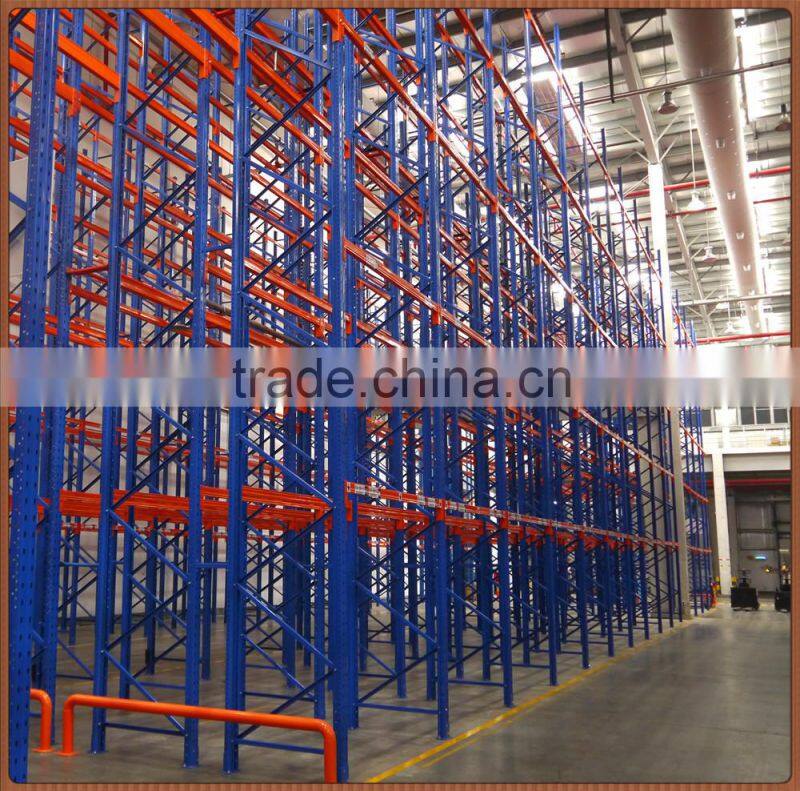

Double deep pallet racking system is constructed to store two pallets deep,or four pallets deep in a double entry rack.The system requires the use of a special reach truck with either dual pantograph or sliding fork attachments.
1.specifications:
| specification of racks | length | 1000-3900mm | |
| depth | 1200-4000mm | ||
| height | 2000-13000(mm) | ||
| Upright | 90*70& 100*80& 1120*95mm thickness:1.8, 2.0, 2.3, 2.5mm | ||
| Beam | 80*50& 100*50& 120*50 & 140*50mm thickness:1.5mm | ||
| thickness | 1.8mm-2.5mm | ||
| capacity/layer | 1-4tons/layer | ||
| remarks | 1. All racking shall be fixed onto the ground by means of Expansion bolts | ||
| 2. Each beam is secured by 2 safety pins | |||
| 3. There are link bars between two back-to-back rack rows. | |||
| 4. Protector is recommended to mount in the junction of over two directions | |||
2.Features:
1.It is constructed to store 2 pallets deep or 4 pallets deep in double entry rack .
2.It requires the use of a special reach truck with either dual pantograph or sliding fork attachments.
3.It offers an increase of storage density,ideal for storing homegeneous products.
4.Better use of the warehouse space due to the density of the loads stored and narrow aisle design.
5.It is significantly less costly than conventional pallet racks .
6.50% immediate pallet access provides reasonable stock rotation on a FILO(FIRST IN LAST OUT)
1. After long time’s usage, you can check if the bolts are still tight enough to make the racks more safety;

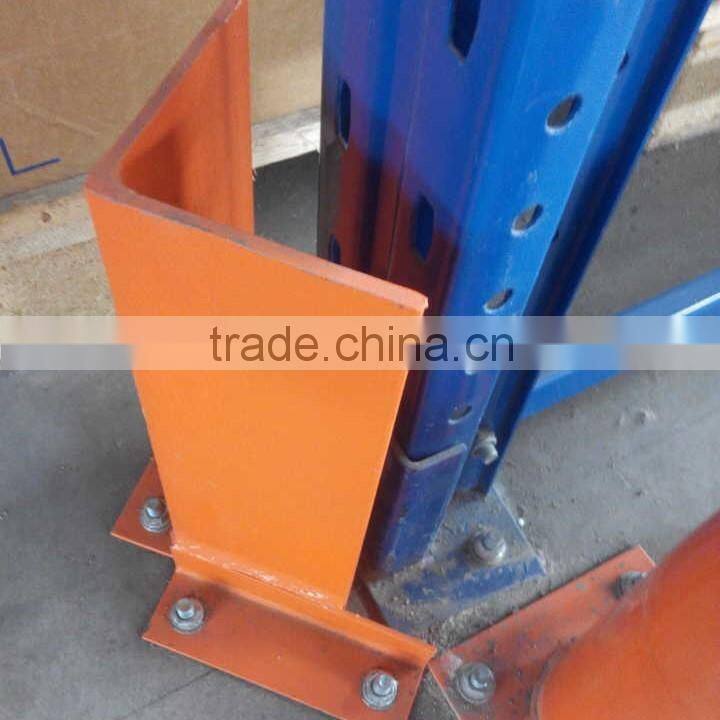

2. If there is some striking on the upright protector to make it distortion, you can rectify it or contact us for some new;
3. Our racks are assembled, you can adjust them freely based on your actual requests, if need professional guidance, c
ontact freely with our service team for some details.
If you are interested in our products,pls just tell us the following information:
1).Size of your warehouse (Length x Width x Clear height)
2).Size(W*D*H) & weight of pallet (after loading)
3).How many pallets in one deep you would like
4).How many levels you would like
Shanghai Everunion Logistics Equipment Co., Ltd. specializes in the production of pallet racks, which is one of the earliest rack manufacturers in China. The factory is located in kunshan city,jiangsu province , covering an area of more than 10,000 of sqm,with very convenient transportation .
We have our own import and export rights,in 2014 annual sales amount has exceeded 25 millions of US-dollars,the export orders have accounted for more than 50% of sales . We have passed
ISO9001:2008 international quality management system authentication,safety norm AS4084 and FEM 10.202 safety standard.
