Specifications
led pendant light1.CE TUV ROHS& Competitive price
2.outstanding energy saving performance
3.80-315V input without adapter
2015 Top quality modern battery operated led pendant light

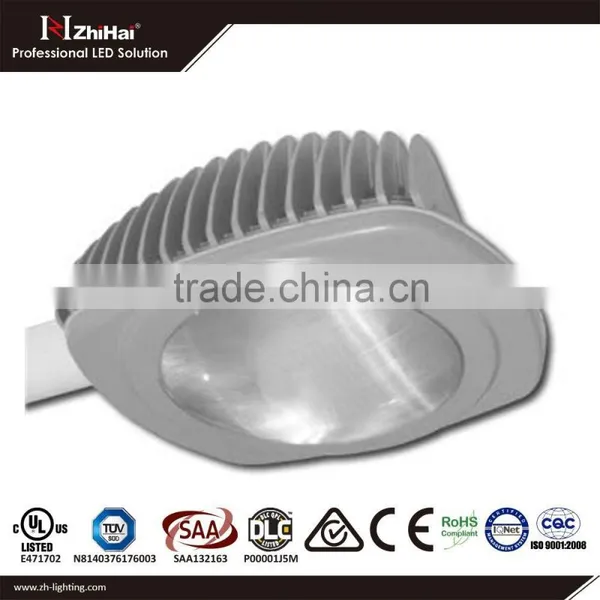

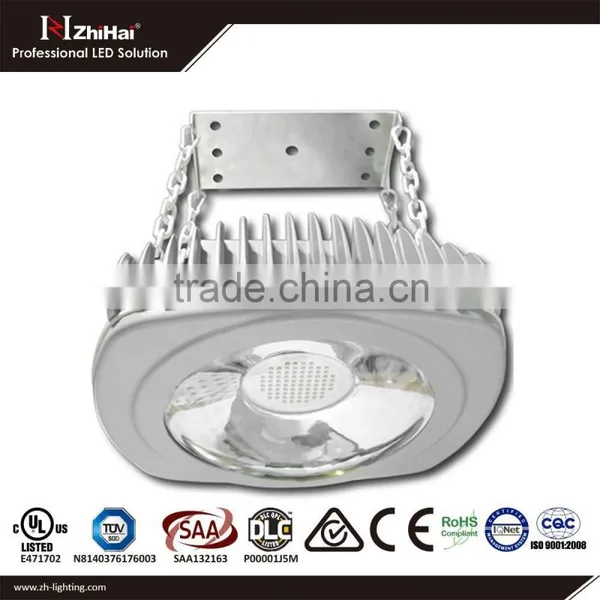

Photos of led pendant light
Beam Angel of led pendant light
Mounting type:
Typical Application of led pendant light
Highway | Main Street | Normal Road | Laneway | Bridge | Architecture | Park | Plant Area | Plaza | Stadium & Sports Field | Tunnel | Yard | Garden | Parking Area | Billboard | Warehouse | Show Room | Factory | Shopping Mall
Competitive Highlights of led pendant light
*Patented all-in-one design, ideal product for all project.
*Featuring CREE XPE LED chips, outstanding energy saving performance.
*Patented power supply technology, electricity surge and overheating auto-protection.
*Patented heat dissipation technology, 50000 hours long life with minimum luminous decay.
*Universal input voltage, AC / DC both work without any adapter or transformer.
*High power factor to minimize total harmonic distortion.
*Instant start and flicker free to reduce the eyestrain.
*Very even light distribution and high uniformity, no glare to eyes.
*Good color rendering, vivid colors under the light.
*Industry-leading 5-5-10 year warranty.
*DC 12V and 24V version also available for solar power and other applications.
Parameters of led pendant light
| Model of led working light | ZHGL-30A | ZHGL-60A | ZHGL-90A | ZHGL-120A | ZHGL-150A | ZHGL-180A | ZHGL-210A | ZHGL-270A | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3600 lm | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | 25200 lm | 32400 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |
| Dimension | 360x323x163mm | ||||||||
| Net Weight | 8kg (17.6lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||
| Model of 50w led flood light | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-30A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-60A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-90A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-120A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-150A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-180A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-210A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-270A | 8.1 | 12/13.5 | 430*430*320 | 1 |
Parameters of led pendant light
| Model of led pendant light | ZHGL-30A | ZHGL-60A | ZHGL-90A | ZHGL-120A | ZHGL-150A | ZHGL-180A | ZHGL-210A | ZHGL-270A | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3600 lm | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | 25200 lm | 32400 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |
| Dimension | 360x323x163mm | ||||||||
| Net Weight | 8kg (17.6lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||
Projects of led pendant light
Hong Kong Fair
We also provide our client with lighting layout design and brightness caclulation of projects ,Zhihai would be your first choice of professional Led lighting supplies.
We will always find a fastest solution,if your driver just defective ,we just send new driver.
We have 3 years or 5 years warranty for all models of our led flood light, In this meantime, if not man-made factors, we offer replacement new one.
Xian Zhihai Power Technology co., Ltd is a professional manufacturer and exporter of LED Industrial Lighting in China since 1998.
Our current main products including:
1- LED Flood Lighting Series
2- LED Street Lighting Series
3- LED High Bay Lighting Series
We already have regular customers from the U.S, U.K,
Germany, France, Spain, Netherlands, Italy, Russia, Brazil, Colombia, Canada, Israel,
Turkey, Indonesia, Egypt and 20 other western countries and regions.
We welcome more potential buyers to join us and establish friendly cooperat
ion to get mutual benefits.
Why you should trust Zhihai Power ?
1) Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company,
2) Zhihai Power is an officially registered company both in China and Hong Kong.
3) We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery..
4)Because all our Led light products have cUL & UL DLC or Canadian certificate, which prove that our Led product quality is in line with the Canadian and U.S. market sales requirements of first-class quality, the cUL & UL product certification requirements are the highest in the world.
5). Most of our Led lights are CREE chip inside and with Energy Star certificate. This is the mark of the best Led lighting products.
6). We are manufacturer direct selling. We guarantee that our products are the best quality and best price.
2. Why choose Zhihai Power as the business partner in the field of LED
Industrial Lighting ?
1) Professionalism: Zhihai Power has 9+year's exportation experience in LED Industrial
Lighting products in china. We provide you professional service one to one
2) Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, All goods are
100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then
bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
3) Fast delivery: The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment.
4) Competitive Prices: Xian Zhihai offers you competitive and reasonable market price.
Why didn't we use the Meanwell led driver?
1.Zhi Hai Power Technology Co.,ltd was established in 1998,
before 2006 were one of the most advanced provider of power supply and we worked with many important companies in
Asia,including China Guodian,China Mobile and Comba Telecom etc.
2.Our led driver is specially designed for our led modules ,
3.you know our led driver can be used for any nation in the world,it is heat resistant(even 100 degree) than Meanwell power supply
4.Our led driver have LVD UL Certificate.
5.Universal 0-347V input without additional adapter.
What is the warranty for lamp?
LABOR: For a period of three (3) years from the date of purchase, if the Product is determined to be defective, Zhihai will repair or replace the Product, at its option, at no charge, or pay the labor charges to any Zhihai authorized service facility.
PARTS:Zhihai will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of three (3) years.
This warranty is based on no more than 12 hours working time a day.
Are you manufacturer?
Yes ,of course
