Tipical Applications of High Lumen 210W LED High Bay Light Fixture:
Factory | Warehouse | Shopping Mall | Gymnasium | Show Room | Architecture | Plant Area | Petrol Station
Conference Centers | Cold Storage | Floodlighting
Features & Characteristic of High Lumen 210W LED High Bay Light Fixture :
* Patent multi- function design, suitable for all projects
* 5-5-10 year warranty
* OSRAM chips, 120 lm/w lamp efficiency *
* 80% lumen maintenance over 50,000hours
* 10Vdc dimmerable version available
* Built-in surge protection
* Built-in thermal protection
* Maintenance free
* Mercury free, No UV or IR
* Universal input without additional adapter ,80-315Vac, 80-400Vdc
* Instant start and flicker free
* High uniformity and color rendering
Specification:
| Model of 120lm/w High Lumen 120W LED High Bay Light | ZHHB-120A | |||||
| Power Consumption | LEDs: | 108W | ||||
| Driver: | 12W | |||||
| Total: | 120W | |||||
| Lamp Efficiency: | 14400lm | |||||
| Replace HID Lamp: | 250-300W | |||||
| Dimension: | Lamp Body:263*263*15mm/Lamp Shade:∅400mm | |||||
| Net Weight: | 8Kg(17.6lbs) | |||||
| Color Temperature: | 4000K(Warm White)/6000K(Cool White) | |||||
| Color Rendering: | ≥Ra80 | |||||
| Working Life: | ≥50000Hrs | |||||
| Housing: | Copper Free Aluminum | |||||
| Finish: | Cathode EPD | |||||
| IP Class: | IP65(Upgradeable To IP67) | |||||
| Insulation Class: | Class I (Upgradeable To Class II) | |||||
| Working Humidity: | 10%~95% | |||||
| AC Input: | 80~315Vac,(347Vac Available On Request) | |||||
| DC Input: | 80~400Vdc,(12Vdc,24Vdc And Other Input Available On Request) | |||||
| THD: | <10% | |||||
| Power Factor: | ≥0.98 | |||||
| Warranty | LED Module: | 5 Year | ||||
| Driver: | 5 Year | |||||
| Housing: | 10 Year | |||||

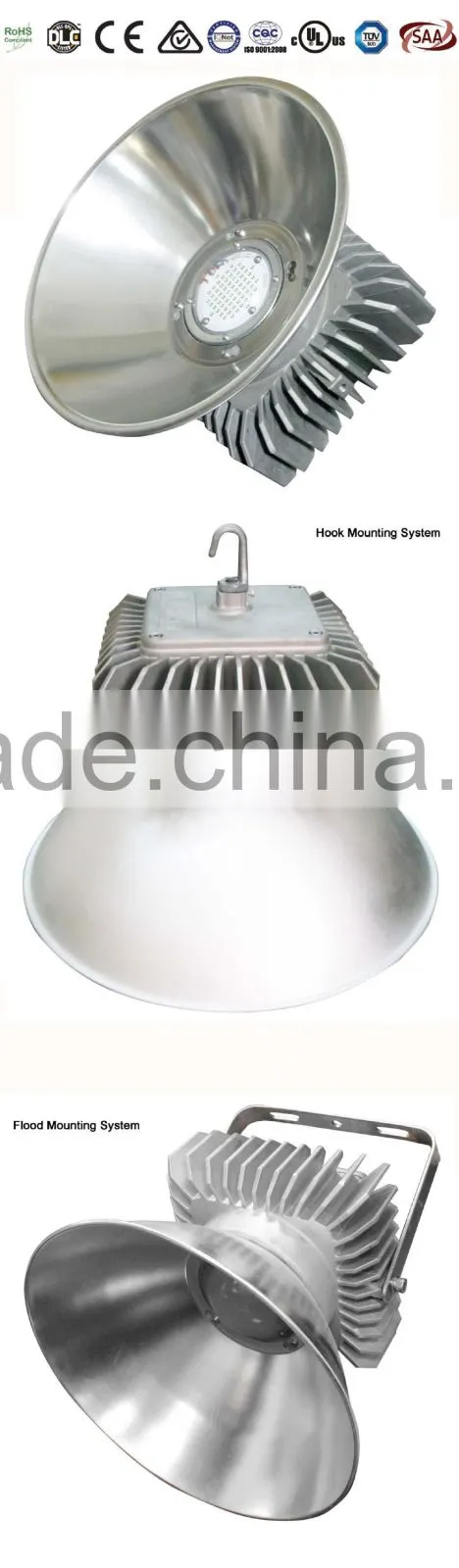

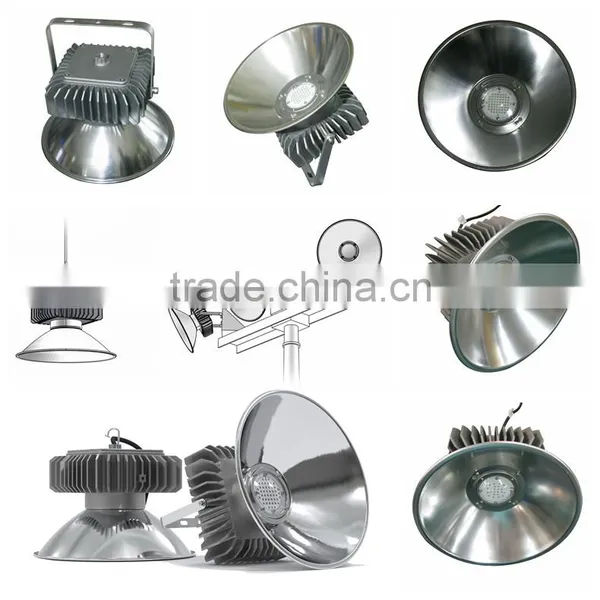

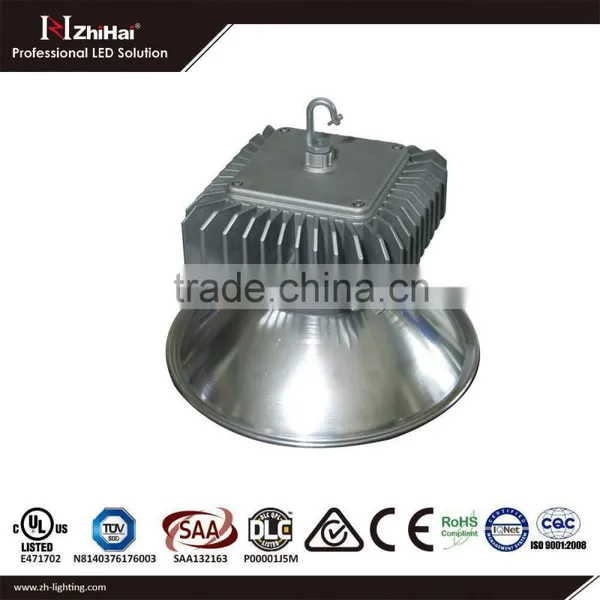

Reference Pictures of High Lumen 210W LED High Bay Light Fixture:

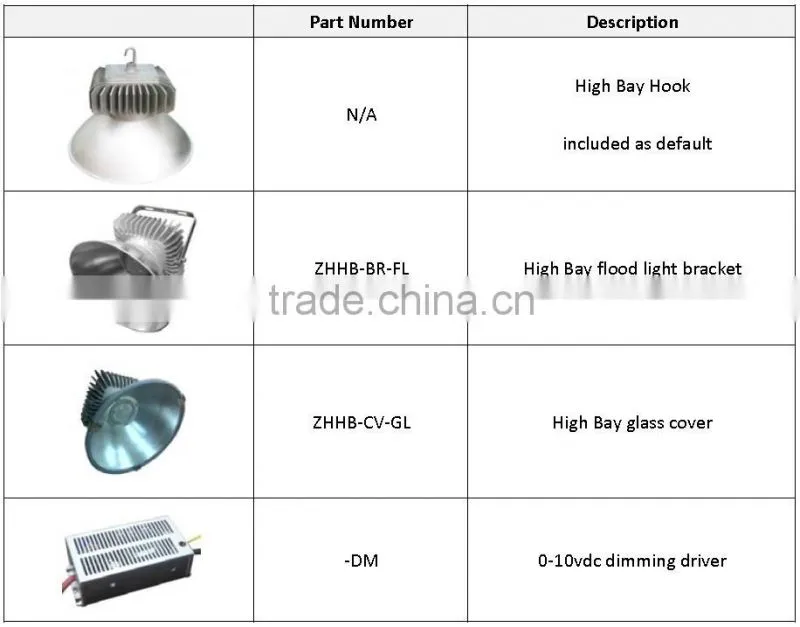

Accessories & Control Systems:

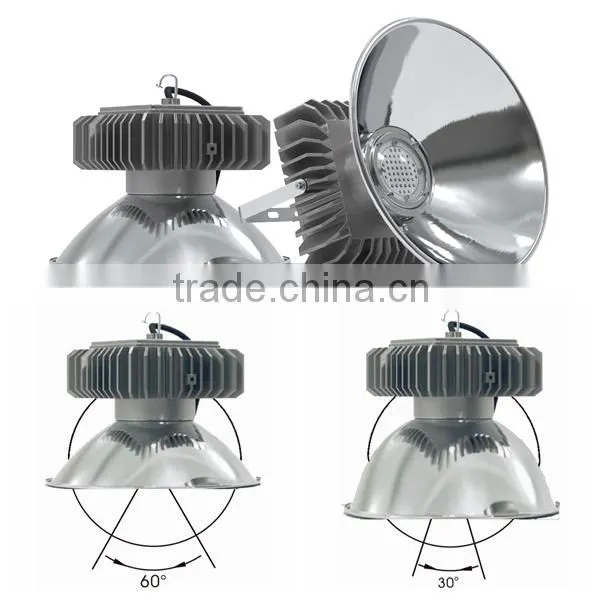

Beam Available:

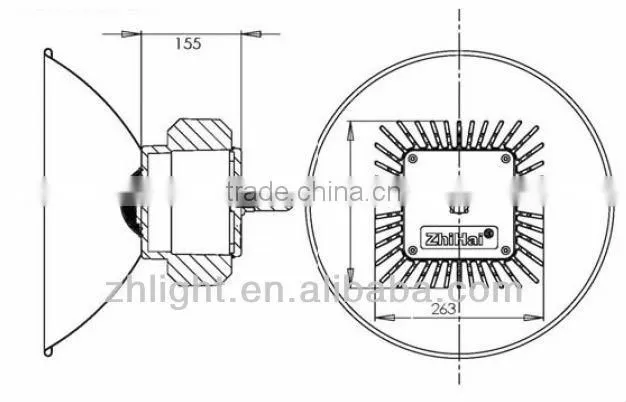

Dimension:

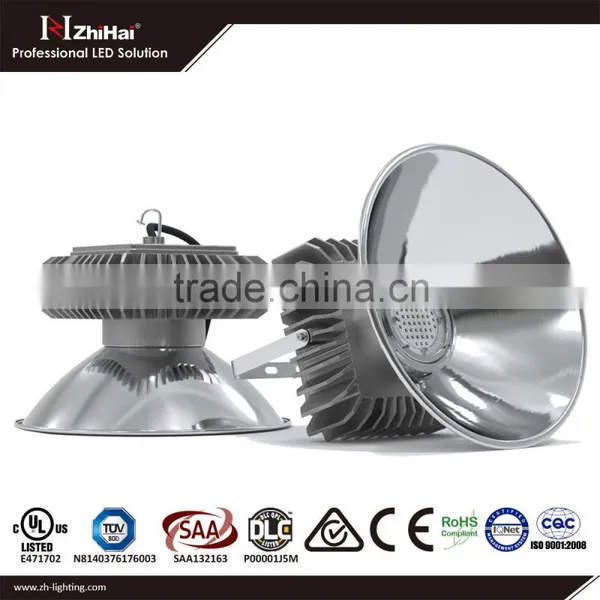

Certifications:
Project our lights fixturs engage in:

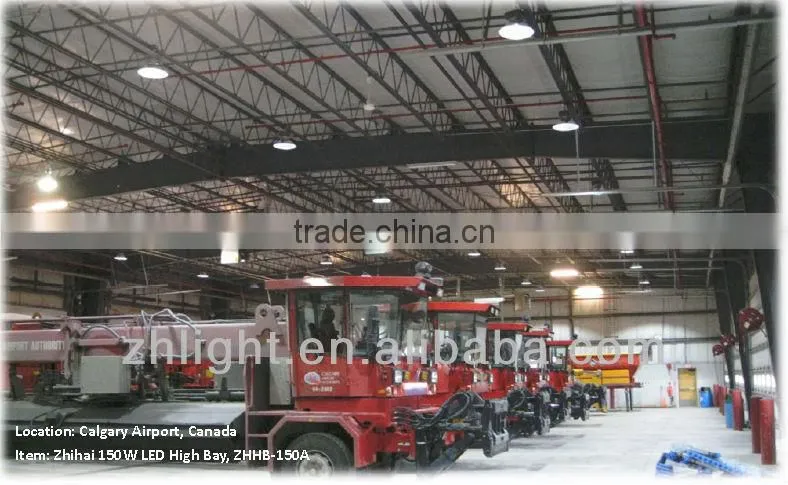

l Calgary International Airport Canada--ZHIHAI 150W LED HIGH BAY LIGHT; ZHHB-150A
l Hockey Club Germany –ZHIHAI400w GENIUS LED PROJECTION LIGHT; ZHGL-400P
l Vladivostok Russia—ZHIHAI 180W GENIUS LED STREET LIGHT;ZHGL-180A
l Volleyball Club Italy—ZHIHAI 150W GENIUS LED FLOOD LIGHT, ZHGL-150A
l Fox Studio Australia—ZHIHAI 70W GENIUS LED SPOT LIGHT;ZHFL-70A
l Ice Stadium France-ZHIHAI 150W GENIUS LED FLOOD LIGHT;ZHGL-150A
l ROTTERDAM Port The Netherland—ZHIHAI 400W GENIUS LED PROJECTION LGIHT;ZHGL-400P

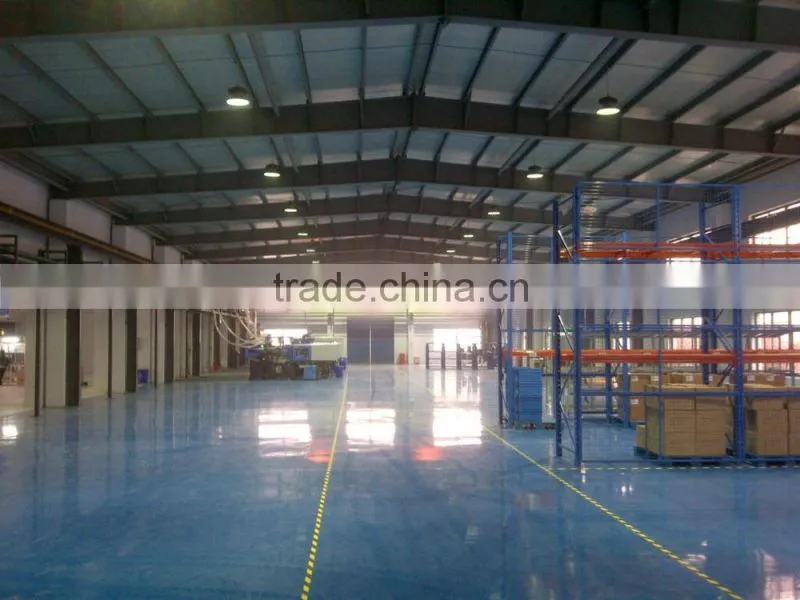

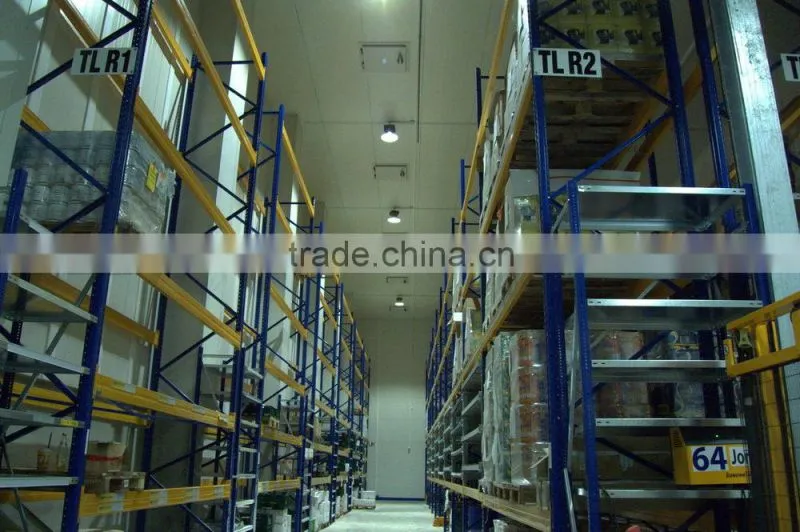

Projects Photos:
Shipping Data:
Model |
N.W(KGS) |
G.W(KGS) |
CTN SIZE(MM) |
PCS/CTN |
ZHHB-60A |
7.5 |
9.0/10 |
320*320*290 |
1 |
ZHHB-90A | ||||
ZHHB-120A | ||||
ZHHB-150A | ||||
ZHHB-180A | ||||
ZHHB LAMP SHADE |
4.0 |
5/6 |
480*480*290 |
10-15 |
Remark: 1,one set braket for 9kgs
2,whoel set braket for 10kgs
Packaging of High Lumen 210W LED High Bay Light Fixture:
Our Shipping:
We have cooperated with DHL,Fedex,TNT and UPS for 4 years.So we could give the competitiver freight costs and better services for you!
3~5Days for Samples;
7~7Days for Batch Products.
Our Service:
1. we have very skilled worker which can answer you with flunent english in 24 hours.
2.We provide free Dialux Lighting Design service.
3.Payment terms: EXW, FOB or CIF
4.Lead time: 4-15 working days according to the order quantity.
5.MOQ: 1 pcs.
6.Payment Terms: T/T, Western Union or Paypal for sample, T/T L/C for bulk order.
7.After Sale Service: 3 or 5 years option selectable and more than that, if any damage happened during the warranty period we will replace you a new part for free instaed of just repair to make sure you can resell it as a new model.
Warranty Service
Company Information:
Zhihai
Professional LED lighting solution supplier
Who we are
Zhihai Power Technology Co., Ltd. was established in 1998, before 2006 we were one of the most advanced provider of power
supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.
In 2006 we moved to LED lighting industry, adopting the technology and experience developed from our electronic and thermal
control towards the R&D, manufacture, sales and service of LED lighting. We quickly became one of the leading and most
professional LED lighting companies in China.
The Zhihai philosophy
Technology and quality are always playing key roles in the Zhihai philosophy, we are proud to hold the "Xi'an LED Lighting
Engineering Laboratory" which is authorized and supported by China National Development and Reform Commission. Alongside
this, we hold the "Shaanxi LED Lighting Technology and Research Center" which is authorized and supported by China National
Science and Technology Ministry.
Till 2014 we have 384 patents and more than 200 patents are pending, the patents include the LED chips packaging, power
supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are
UL, TUV, CE, SAA, C-tick and RoHS certificated.
To be professional is the key to success
We have more than 10 professors and doctors in our company R&D department, and more than 30% of our employees have
bachelor’s degree or higher. All of our staff receive the highest standard of training.
As experienced LED lighting specialists, we offer our customers more than just the delivery of reliable and top performance LED
lighting products. Our focus and the services we provide have enabled us to build an excellent relationship with our market.
Our team of lighting designers play an important role in this. The service consists of two different levels. The first level is our
basic service that we offer in providing lighting technical advice for our customers. And based on the profile (lighting scheme)
supplied, our specialists will present you a customized lighting plan by using the lighting calculation software.
Lighting the way
Whether it is an infrastructural project, port, motorway, tunnel, urban roads, residential area, underpass, parking area,
city center or even a greenhouse, all of your requirements will be taken into account and translated in a perfect lighting
performance solution, including Zhihai LED models, column distance and positioning and lighting class and most efficient energy
consumption.
We supply lighting products and service to many important projects around the world, Zhihai LED solutions have been used on
airports, sea ports, heavy industries, big commercial buildings, warehouses and logistic centers, streets, bridges, sport fields and
arenas and many other not only industrial and commercial applications but also demanding and harsh environment.
Zhihai will continue to expand our technology development and marketing reach, delivers more productivity and benefits to our
customers as we continue to grow and makes our brands more distinct for our customers.
Q1. Are you a trading company or factory?
We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001quality standard since 2001 and we are the TUV audited manufacturer.
Q2. How much will the shipping cost of LED light?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3. How can I make orders for LED light?
Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-15 days for bulk order
We accept mini order.
Q4.How do you ensure the quality of LED light?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q5.Do you offer free sample of LED light?
Sample are not free, however, sample price with be same with bulk order's.
Q6.How long can I get your reply?
We respond to every inquiry within 24 hours.
