Zhihai Factory Sales 120W industrial led high bay light Fittings:
Features and Specifications of led high bay light Fittings:
- Patent multi-function design, integrated flood light, street light and pendant light design, 5-5-10 Year Warranty;
- Osram OSLON Led Chip;120l/w System Efficiency ; 80% Lumen Maintenance over 50,000 Hours;
- 0-10Vdc Dimming Driver Available
- DALI lighting operating system available
- Photocell Sensor System Available;
- Build-in Surge Protection; Thermal Protection; Maintenance Free; Mercury Free; No UV/IR;
- Universal Input Without Additional Adapter;
- Instant Start & Flicker Free; High Uniformity & Color Rending;
- AC 80-315V, 347V for canada also avaiable
- DC 12V Or 24V Available for Solar Power;
- High Power Factor To Minimize Total Harmonic Distortaion;
- led high bay light Fittings Replace 400-500W HID Bulbs Accordingly;
| Model | ZHHB-60A | ZHHB-90A | ZHHB-120A | ZHHB-150A | ZHHB-180A | |
| Power Consumption | LEDs | 50W | 80W | 108W | 135W | 162W |
| Driver | 10W | 10W | 12W | 15W | 18W | |
| Total | 60W | 90W | 120W | 150W | 180W | |
| Initial Lumen Lamp(6000K) | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | |
| Replace HID Lamp | 100-150W | 150-250W | 250-300W | 300-400W | 400-600W | |
| Dimension | Lamp Body: 263x263x155mm/ Lamp Shade:Ø400mm | |||||
| Net Weight | 8kg (17.6lbs) | |||||
| Color Temperature | 4000K - 6000K | |||||
| Color Rendering | ≥Ra75 | |||||
| Working Life | ≥50000Hrs | |||||
| Housiong Material | Aluminum | |||||
| Coating | Zinc Rich Paint | |||||
| IP Class | IP 65 (Upgradeable to IP 67) | |||||
| Insulation Class | Class I (Upgradeable to Class II) | |||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |||||
| Working Humidity | 10% ~ 95% | |||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | |||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | |||||
| THD | <10% | |||||
| Power Factor | ≥0.98 | |||||
| Warranty | LED Module | 5 year | ||||
| Driver | 5 year | |||||
| Housing | 10 year | |||||

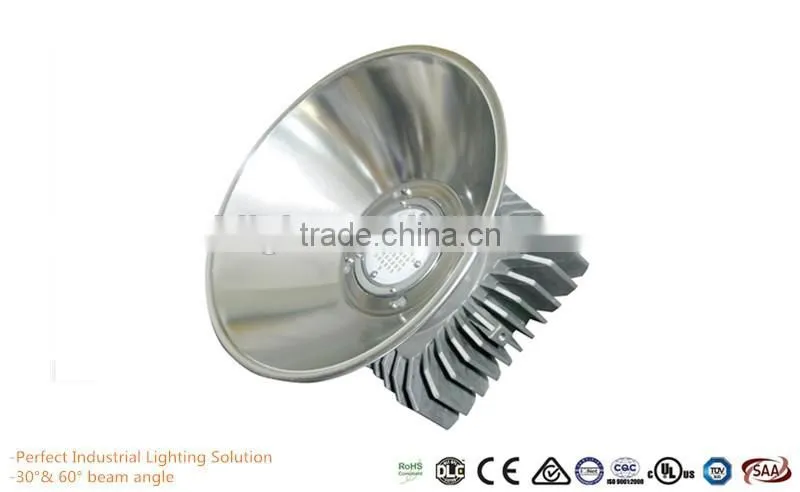

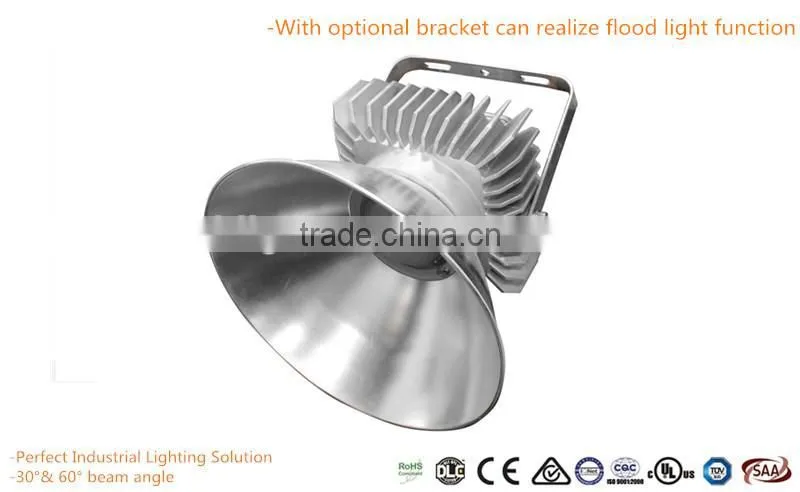

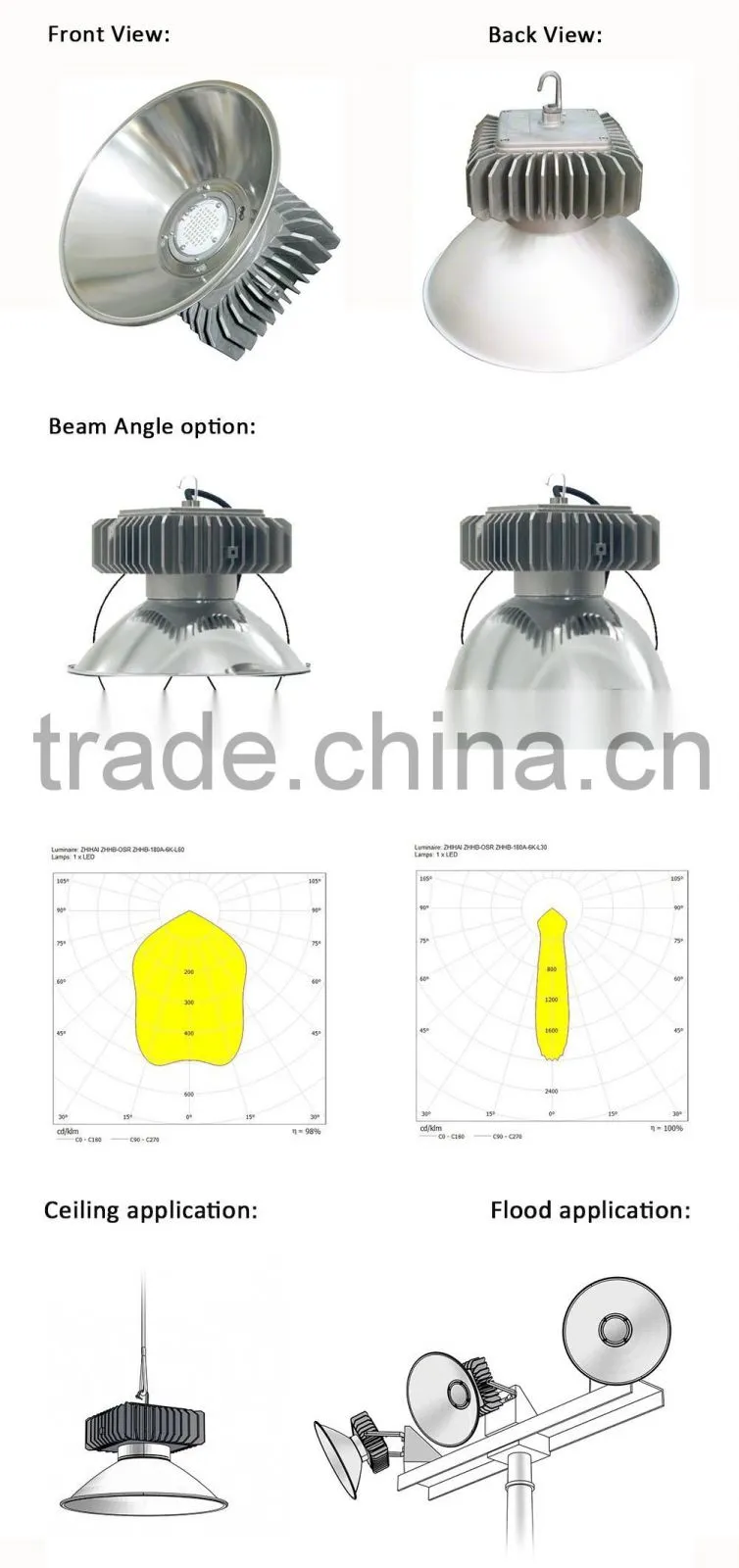

Product detailed view of led high bay light Fittings:
Our company information of led high bay light Fittings:
Xi'an Zhihai Power Technology Co., Ltd was established in 1998, with 3000 square meter's factory area, specializes in the development, manufacturer, sales and service of LED illumination and worked to ISO 9001 quality standard since 2001.
We have 125 patents till now and another 80 patents are pending, the patents include the LED chip packing, power supply, controlling and design of lamp housing. our product attained TUV, UL, DLC, CE, RoHS, SAA, C-tick etc.
Our current main products including:
1- LED Flood Lighting Series
2- LED Street Lighting Series
3- LED High Bay Lighting Series
Zhihai Power already have regular customers from the U.S, U.K, Germany, France, Spain, Netherlands, Italy, Russia, Brazil, Colombia, Canada, Israel, Turkey, Indonesia, Egypt and 20 other western countries and regions.
We welcome more potential buyers to join us and establish friendly cooperation to get mutual benefits.
Why you should trust Zhihai Power ?
1 ) Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company,
2 ) Zhihai Power is an officially registered company both in China and Hong Kong.
3)Zhihai Power hold one and only “LED Lighting Engineering Laboratory”which is authorized and supported by china national development and reform commission.
4) We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery..
2. Why choose Zhihai as your bueinsee partner?
1) Professionalism: Zhihai has 17 years exportation experience in LED Industrial Lighting products in china. We provide you professional service one to one.
2) Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
3 ) Fast delivery: The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment..
4 ) Warranty: We gurrantee our customer 3 or 5 years after sale service..
5) Competitive Prices: Xian Zhihai offers you competitive and reasonable market price.

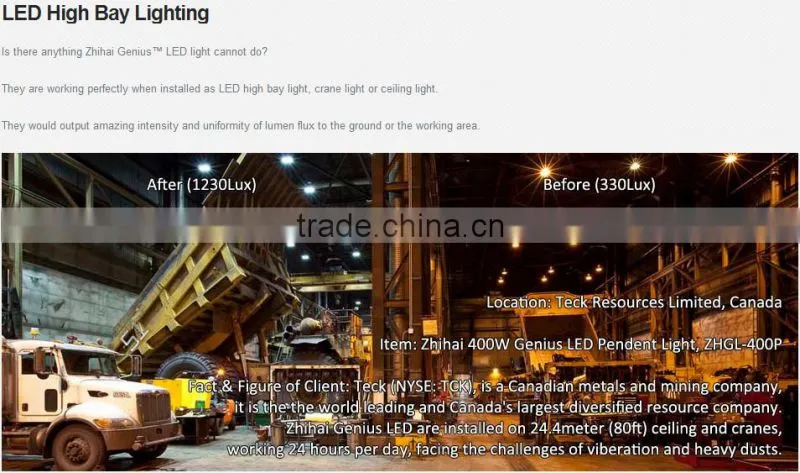

Project of led high bay light Fittings:
Packing information of led high bay light Fittings:
Model |
G.W(KGS) |
CTN SIZE(MM) |
PCS/CTN |
ZHHB-60A/180A |
9 |
320*320*290 |
1 |
ZHHB Lamp Shade |
5 |
480*480*290 |
10-15 |
Shipping method by Sea, air freight, or internationial express according to order quantity and your request!
Price term and conditions:
1. we have very skilled worker which can answer you with flunent english in 24 hours.
2.We provide free Dialux Lighting Design service
3.Delivery terms: EXW, CIF, FOB
4.Sample lead time: 3-4 working days after payment made
5.MOQ: 1pcs
6.Payment Terms: T/T, L/C, Paypal or Western Union.
7. Warranty period are 3 or 5 years as per selected.
We strictly complied with CE, RoHS, TUV, UL, DLC, SAA and C-tick.
Certificate of led high bay light Fittings:
Q1. Are you a trading company or factory?
We are the factory based in the ancitnt city Xi'an China since 1998.we acquired and worked to ISO9001quality standard since 2001 and we are the TUV audited manufacturer.
Q2. How much will the shipping cost of led high bay light Fittings?
We are committed to keeping shipping costs as low as possible. The shipping charges are calculated based on the ordered products. We ship to worldwide.
Q3. How can I make orders for led high bay light Fittings?
Please see the following order info:
•Delivery term: FOB Tianjin/Shanghai, EX-Work, CFR, CIF
•Payments terms: T/T, western union, PayPal and L/C
•Delivery time: 3-5 days for sample, 7-15 days for bulk order
We accept mini order.
Q4.How do you ensure the quality of led high bay light Fittings?
We are strictly focus on quality control. All goods are 100% inspected before shipping, we do at least 5 test, including In-coming raw material test, sample test then bulk produce, waterproof test, functional test, burn-in test, appearance inspection.
Q5.Do you offer free sample of led high bay light Fittings?
Sample will be same price bulk order's, not any surcharge.
Q6.How long can I get your reply?
We respond to every inquiry within 24 hours.
