Specifications
dimmable led ceiling light5-5-10 year warranty
OSRAM chips, 110 lm/w lamp efficiency
80% lumen maintenance over 50,000ho
2015 High quality meanwell 120w led tunnel light

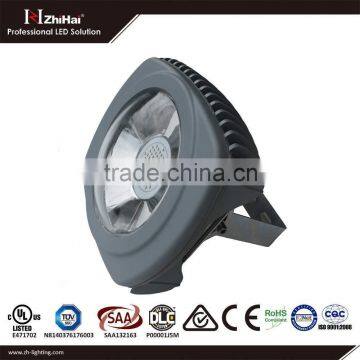

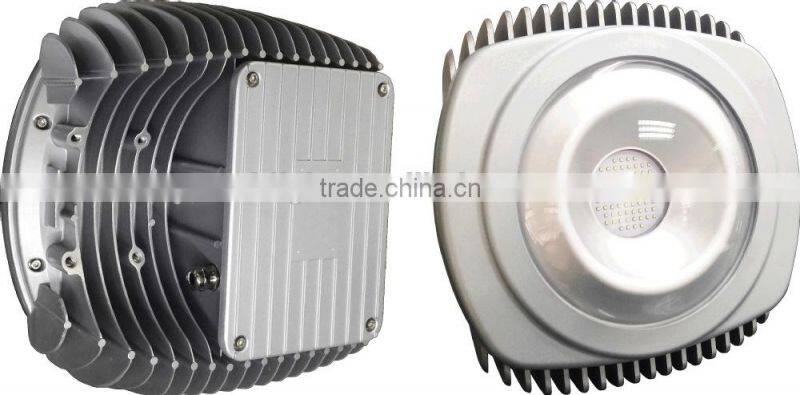

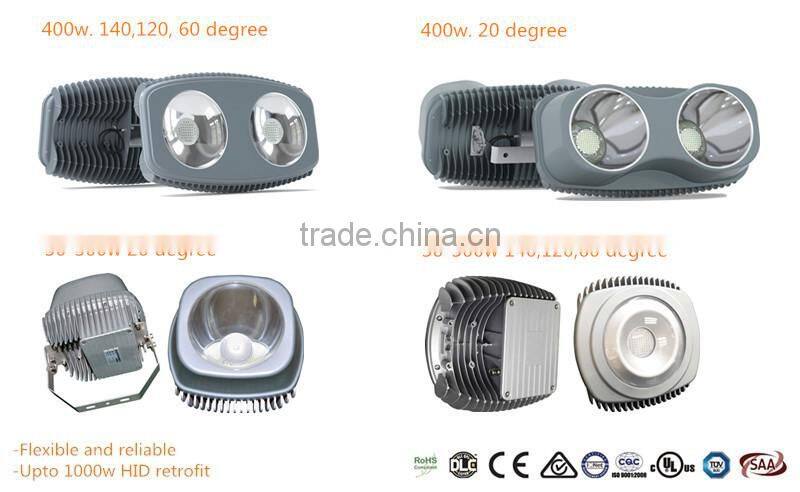

Product view of led tunnel light

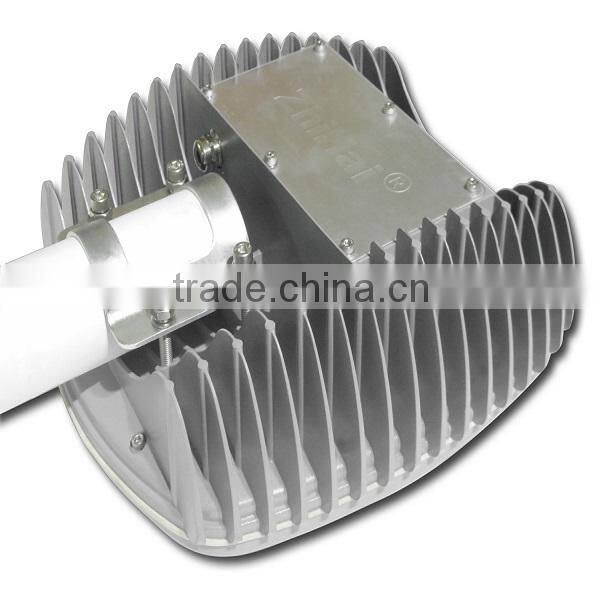

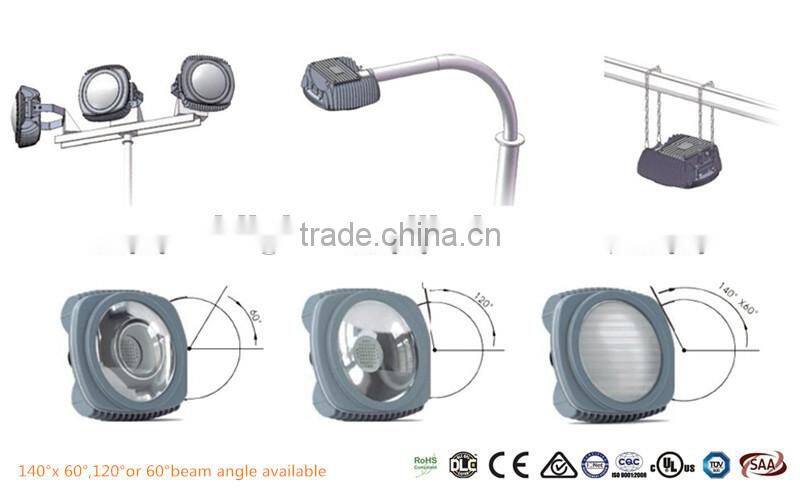

Beam angel and brackets of led tunnel light

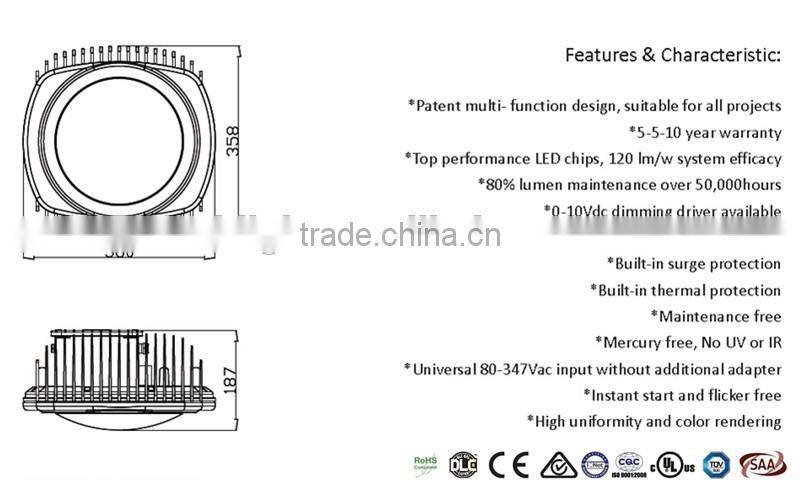

Dimension of led tunnel light
TYPICAL APPLICATIONS of led tunnel light
Highway | Main Street | Normal Road | Laneway | Bridge | Architecture | Park | Plant Area
| Plaza | Stadium & Sports Field | Tunnel | Yard | Garden | Parking Area | Billboard | Warehouse | Show Room | Factory | Shopping Mall
COMPETITIVE HIGHLIGHTS of led tunnel light
*Patented all-in-one design, ideal product for all project.
*Featuring CREE XPE LED chips, outstanding energy saving performance.
*Patented power supply technology, electricity surge and overheating auto-protection.
*Patented heat dissipation technology, 50000 hours long life with minimum luminous decay.
*Universal input voltage, AC / DC both work without any adapter or transformer.
*High power factor to minimize total harmonic distortion.
*Instant start and flicker free to reduce the eyestrain.
*Very even light distribution and high uniformity, no glare to eyes.
*Good color rendering, vivid colors under the light.
*Industry-leading 5-5-10 year warranty.
*DC 12V and 24V version also available for solar power and other applications.
Parameters of led tunnel light
| Model of led tunnel light | ZHGL-30A | ZHGL-60A | ZHGL-90A | ZHGL-120A | ZHGL-150A | ZHGL-180A | ZHGL-210A | ZHGL-270A | |
| Power Consumption | LEDs | 25W | 50W | 80W | 108W | 135W | 162W | 189W | 243W |
| Driver | 5W | 10W | 10W | 12W | 15W | 18W | 21W | 27W | |
| Total | 30W | 60W | 90W | 120W | 150W | 180W | 210W | 270W | |
| Initial Lumen Lamp(6000K) | 3600 lm | 7200 lm | 10800 lm | 14400 lm | 18000 lm | 21600 lm | 25200 lm | 32400 lm | |
| Replace HID Lamp | 50-100W | 100-150W | 150-250W | 250-300W | 300-400W | 400-500W | 500-600W | 600-1000W | |
| Dimension | 360x323x163mm | ||||||||
| Net Weight | 8kg (17.6lbs) | ||||||||
| Color Temperature | 4000K - 6000K | ||||||||
| Color Rendering | ≥Ra75 | ||||||||
| Working Life | ≥50000Hrs | ||||||||
| Housiong Material | Aluminum | ||||||||
| Coating | Zinc Rich Paint | ||||||||
| IP Class | IP 65 (Upgradeable to IP 67) | ||||||||
| Insulation Class | Class I (Upgradeable to Class II) | ||||||||
| Working Temperature | -40C ~ 60C / -40F ~ 140F | ||||||||
| Working Humidity | 10% ~ 95% | ||||||||
| AC Input | 80 ~ 315Vac, (347Vac available on request) | ||||||||
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | ||||||||
| THD | <10% | ||||||||
| Power Factor | ≥0.98 | ||||||||
| Warranty | LED Module | 5 year | |||||||
| Driver | 5 year | ||||||||
| Housing | 10 year | ||||||||
| Model of led tunnel light | N.W (KGS) | G.W (KGS) | CTN SIZE (MM) | PCS/CTN |
| ZHGL-30A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-60A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-90A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-120A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-150A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-180A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-210A | 8.1 | 12/13.5 | 430*430*320 | 1 |
| ZHGL-270A | 8.1 | 12/13.5 | 430*430*320 | 1 |

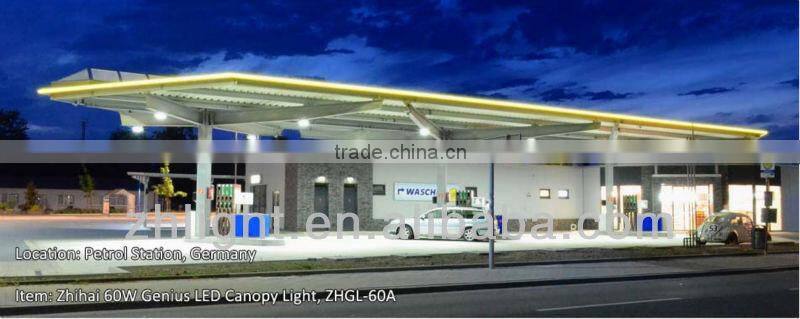

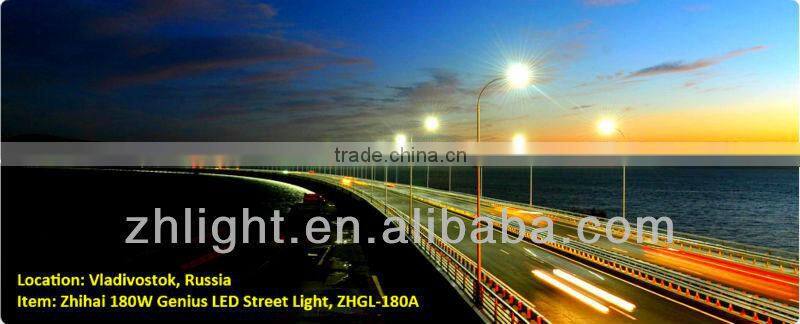

Projects of led tunnel light
Hong Kong lighting Fair
Warranty:We also provide our client with lighting layout design and brightness caclulation of projects ,Zhihai would be your first choice of professional Led lighting supplies.
We will always find a fastest solution,if your driver just defective ,we just send new driver.
We have 3 years or 5 years warranty for all models of our led flood light, In this meantime, if not man-made factors, we offer replacement new one.
Trade Terms:
1.Payment terms: 30% T/T deposit, the balance before delivery
2.Delivery time:
1) Sample in 3-7days after get sample charge.
2) 7-15 days for mass production.
3.Shipping port: Beijing airport or Tianjin seaport.
4.Quartor and Annual Rebate will provide to buyer.

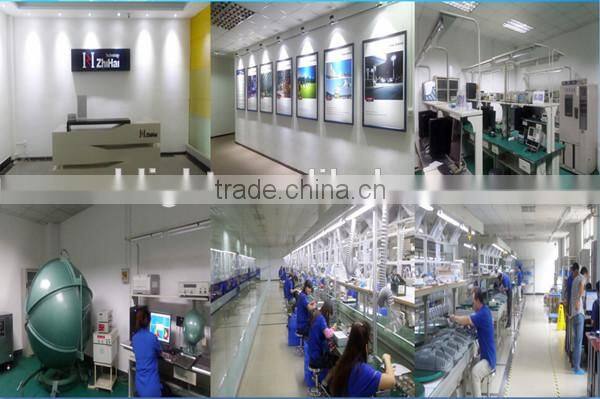

Zhihai Power Technology Co., Ltd. was established in 1998, before 2006 we were one of the most advanced provider of power supply and we worked with many important companies in Asia, including China Guodian, China Mobile, and Comba Telecom etc.
In 2006, adopted the technology of our electronic and thermal control experience, we started and moved to the R&D, manufacture, sales and service of LED lighting, and very quickly, we became one of the leading and most professional LED lighting company in China.
Till 2012 we have 125 patents and more than 80 patents are pending, the patents include the LED chips packaging, power supply controlling and design of lamp housing. We worked with ISO-9001 quality control system since 2001, the products are TUV, CE, SAA, C-tick and RoHS certificated, and we are also got CUL, UL.
We are working on high power LED lighting products, and more than manufacture, we are also providing our clients with lighting layout design and brightness calculation of projects. Zhihai would always be your first choice of professional LED lighting supplier.
1.Why you should trust Zhihai Power ?
1) Zhihai Power has been qualified by third party and awarded 7 year’s “Gold Supplier” in Alibaba Group company,
2) Zhihai Power is an officially registered company both in China and Hong Kong.
3) We accept Payment by PAYPAL and for regular customer the payment period can be 30/60 days after delivery..
4)Because all our Led light products have cUL & UL DLC or Canadian certificate,
which prove that our Led product quality is in line with the Canadian and U.S. market sales
requirements of first-class quality,the cUL & UL product certification requirements are the highest in
the world.
5). Most of our Led lights are Osram or CREE chip inside and with Energy Star certificate. This is the
mark of the best Led lighting products.
6). We are manufacturer direct selling. We guarantee that our products are the best quality and best price.
2. Why choose Zhihai Power as the business partner in the field of LED
Industrial Lighting ?
1) Professionalism: Zhihai Power has 9+year's exportation experience in LED Industrial
Lighting products in china. We provide you professional service one to one
2) Strictly Quality control system: Xian Zhihai has professional QC team for the quality control, All
goods are100% inspected before shipping, we do at least 5 test,including In-coming raw material
test, sample test then bulk produce, waterproof test, functional test,burn-in test, appearance inspection.
3) delivery: The products delivered to you within 4 days for sample, 7-15 days for mass order from the date of payment.
4) Competitive Prices: Xian Zhihai offers you competitive and reasonable market price.
Why didn't we use the Meanwell led driver?
1.Zhi Hai Power Technology Co.,ltd was established in 1998,
before 2006 were one of the most advanced provider of power supply and we worked with many important companies in Asia,including China Guodian,China Mobile and Comba Telecom etc.
2.Our led driver is specially designed for our led modules ,
3.you know our led driver can be used for any nation in the world,it is heat resistant(even 100 degree) than Meanwell power supply
4.Our led driver have LVD UL Certificate
5.Universal 0-347V input without additional adapter.
What is the warranty for lamp?
LABOR: For a period of three (3) years from the date of purchase, if the Product is determined to be defective, Zhihai will repair or replace the Product, at its option, at no charge, or pay the labor charges to any Zhihai authorized service facility.
PARTS: In addition, Zhihai will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of three (3) years.
This warranty is based on no more than 12 hours working time a day.
more
Q1:How about your delivery time ? Delivery Terms ?
A1:3-5 business days for sample ,order subjects to your quantity
Delivery terms as follows: FOB ,CIF,EXW ,etc.
Q2:Can I get some samples?
A2: We are honored to offer you samples.
Q3:How does your company do regarding quality control?
A3:we always attach great importance to quality controlling from the very beginning to the very end
Q4:Which kind ways of transportation you use ?
A4: By ocean ,air or express
Q5: Could you offer me the safest terms of payment?
A5: T/T ,PAYPAL, WESTERN UNION are available,you can choose the best way
Q6:What's about the packing details?
A6:Individual neutral packing for each lamp, and Customized packing is acceptable.
Q7:Are you manufacturer?
A7:Yes
