Home > Computer Products > Storage Device > Hard Disk > M.2 NGFF SSD 2242 SATA 3.0 6GB/s

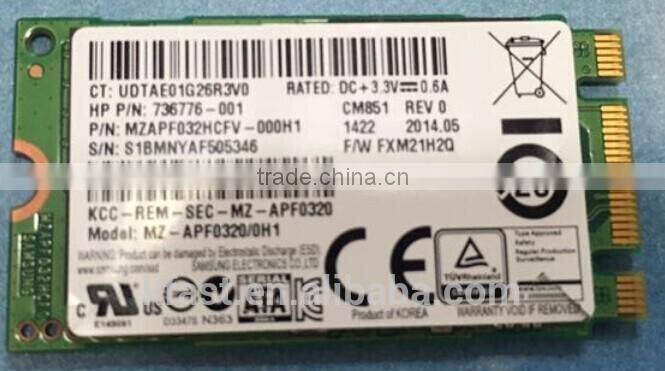

M.2 NGFF SSD 2242 SATA 3.0 6GB/s

US$ 16 - 30 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Products Status:

Stock

Application:

Laptop

Type:

Internal

Contact Supplier Request Quote Chat Now

Shenzhen New KingFast Storage Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Products Status Stock

Application Laptop

Type Internal

Style SSD

SSD Capacity Other, 32gb

Size Other, NGFF 22*42*3.73mm

Interface Type Other, NGFF SATA3.0

Speed Other, R/W:430/110MB/s

Cache Other

Brand Name M.2

Model Number M.2

Place of Origin Guangdong, China

1. Product Description

For Samsung M.2 SATA 6.0Gb/s SSD

1. Stable quality

2. Fastest delivery time

3. In stock ( with limited q'ty in stock)

2. Product Specification

CM851 Series:

PART NUMBER MZAPF016HCDD MZMPF024HCET MZMPF032HCFV -
Capacity1 16GB 24GB 32GB -
LBA 31,277,232 46,905,264 62,533,296 -
FEATURES RELIABILITY SPECIFICATIONS
• Serial ATA 6.0Gbps Interface • UBER 1 sector in 1015 bits
• Fully complies with Serial ATA 3.1 Standard • MTBF 1.5 Million Hours
• Fully complies with ATA/ATAPI-7 Standard
• Fully Complies with ATA/ATAPI-8 Mandatory Command ENVIRONMENTAL SPECIFICATIONS
• ATA Security Mode feature set • Temperature4
• Supporting Secure erase command set - Operating 0°C to 70°C
• Power Saving Modes: - Non-operating -40°C to 85°C
- Supporting HIPM (Partial / Slumber mode) • Humidity (non-condensing)
- Supproting DIPM (Slumber mode) - Non-operating 5 ~ 95 %
- Supproting DEVSLP • Linear Shock (1/2 sine pulse, 0.5ms)
• Support NCQ (Up to 32 depth) Command Set - Non-operating 1,500 G
• Support SSD Enhanced S.M.A.R.T. Feature Set • Vibration (swept sine, 10~2000Hz, 15min/axis, 3axes)
• Support TRIM Command - Non-operating 20G
• Synchronous Signal Recovery
• End-to-End Data Protection POWER REQUIREMENTS
• RoHS Compliant • Supply Voltage +3.3V ± 5%
• Voltage Ripple/Noise (max.) 100mV p-p
DRIVE CONFIGURATION • Active5 (typical) 1.22 W
• Capacity 16/24/32GB • Idle6 (typical) 31mW
• From Factor M.2 • DEVSLP (typical) 5mW
• Interface Serial ATA 6.0Gbps
• Bytes per Sector 512 Bytes PHYSICAL DIMENSION
• M.2
PERFORMANCE SPECIFICATIONS - Width 22.00 ± 0.15 mm
• Data Transfer Rate2 - Length 42.00 ± 0.15 mm
Sequential Read - Height Max 3.73 mm
(32GB)Up to 430 MB/s - Weight Max 5g
(24GB)Up to 410 MB/s
(16GB)Up to 410 MB/s
Specifications are subject to change without notice.
Sequential write
(32GB)Up to 110 MB/s 1 1MB = 1,000,000 Bytes, 1GB = 1,000,000,000 Bytes, Unformatted
Capacity. User accessible capacity may vary depending on operating
environment and formatting.
2 Transfer Rate measured using CrystalDiskMark 3.1
3 Data I/O Speed measured with CrystalDiskMark 3.1, 4KB data size and 32-Queue
depth and 1GB data size. Actual performance may vary depending on use
conditions and environment.
4 Case Temperature
5 Active power is measured during execution of BWBM
6 Idle power is measured on DOS idle status with DIPM on.
(24GB)Up to 90 MB/s
(16GB)Up to 90 MB/s
• Data I/O Rate3
Random Read
(32GB)Up to 21K IOPS
(24GB)Up to 21K IOPS
(16GB)Up to 18K IOPS
Random Write
(32GB)Up to 14K IOPS
(24GB)Up to 9K IOPS
(16GB)Up to 8K IOPS
