Fr4 or Aluminum Base Material Light Assembly Led Pcb

Welcome to EASTWIN

SHENZHEN OEM ONE-STOP ELECTRONIC PCB ASSEMBLY MANUFACTURER.Eastwin SMT PCB Assembly manufacturer offer PCB Fabrication,Components sourcing,PCB assembly,Through-hole assembly,Lead free and high quality.PCBA Samples within 15days with quality Guaranteed. China Trusted PCB Assembly Supplier.

Eastwin PCB&PCBA Contract Manufacturing Services Including Blows:

v Fast PCB Fabrication for Samples and Mass Production

v Electronic Components Sourcing Services

v PCBA Assembly Services:SMT,DIP,BGA...

v Function Test

v Stencil,Cable and Enclosure Assembly

v Reverse engineering service

v Standard Packing and On time Delivery

Main Products Application:

&Household

& Medical

& Automotive

& Industrial

& Communication(AVL/GPS/GSM)

& Consumer Electronics

PCB Details:

PCB Lead Time

PCB Board Processing Capability:

PCBA Manufacture Spefication:

PCB Assembly Details:

Standard Component Sourcing Service:

Supplier → Components Purchase → IQC → Protection Control → Material Supply → Firmware

Technical Requirement for PCB Assembly:

v Professional Surface-mounting and Through-hole soldering Technology

v Various sizes like 1206,0805,0603,0402,0201 components SMT technology

v ICT(In Circuit Test),FCT(Functional Circuit Test) technology.

v PCB Assembly With UL,CE,FCC,Rohs Approval

v Nitrogen gas reflow soldering technology for SMT.

v High Standard SMT&Solder Assembly Line

v High density interconnected board placement technology capacity.

PCB Assembly Manufacturing Procedures:

vProgram Management

    PCB Files → DCC → Program Organizing → Optimization → Checking

vSMT Management

    PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping

vPCBA Management

    THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → Checking → Package → Shipment

Reverse Engineering of Electronic Products

---We  has developed capabilities of generating the necessary manufacturing documentation from finished

products. Services include:

v Artwork and PCB Scanning

v Schematics and Gerber File Generation

v Bill of Material and Parts List Generation

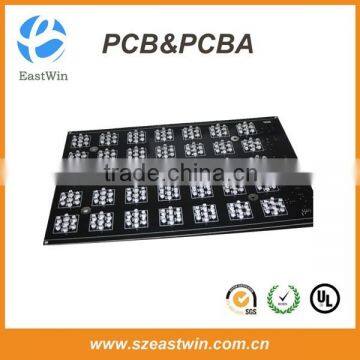

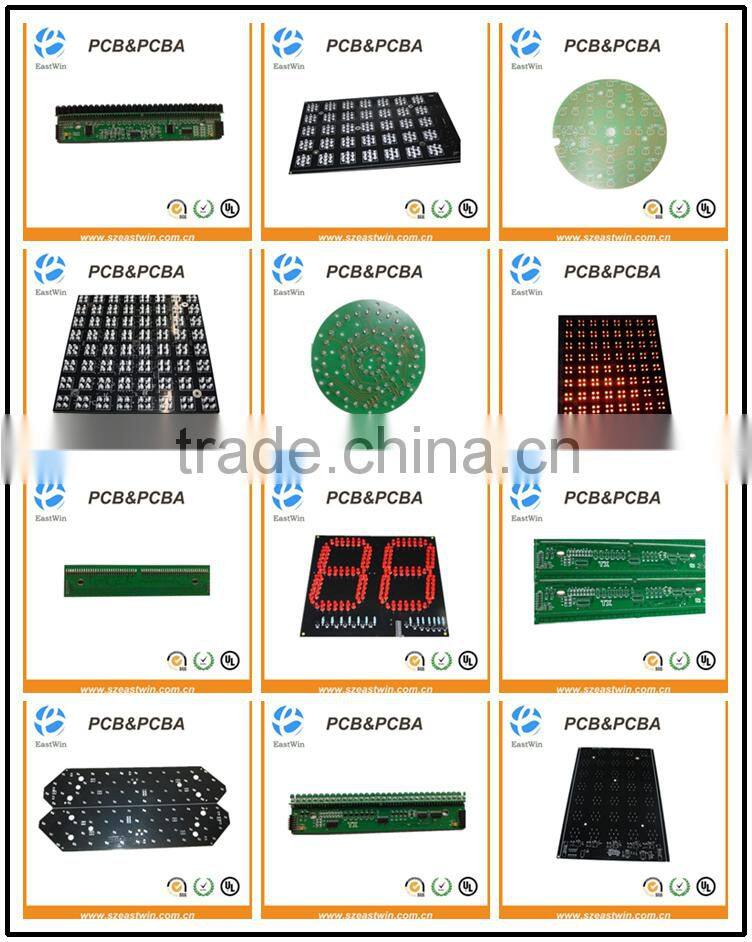

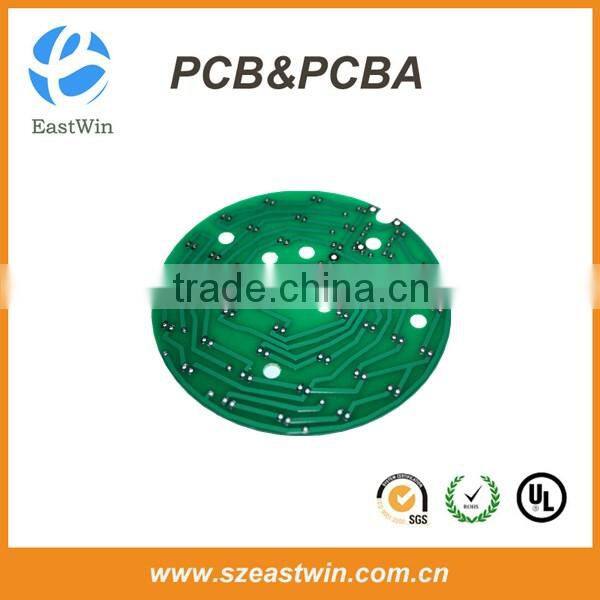

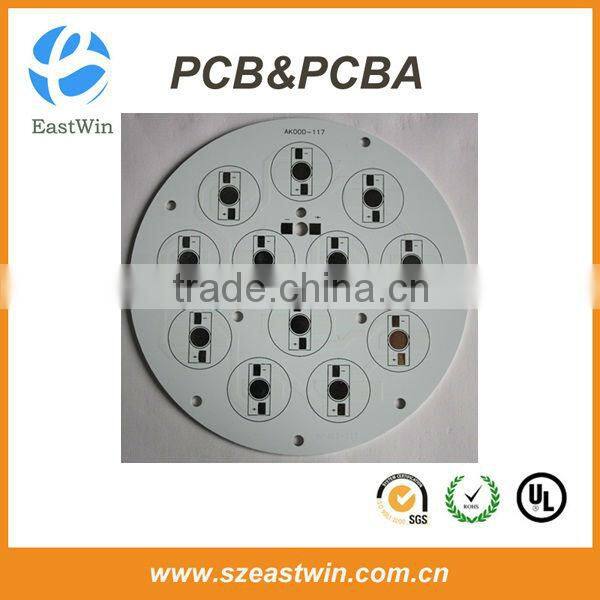

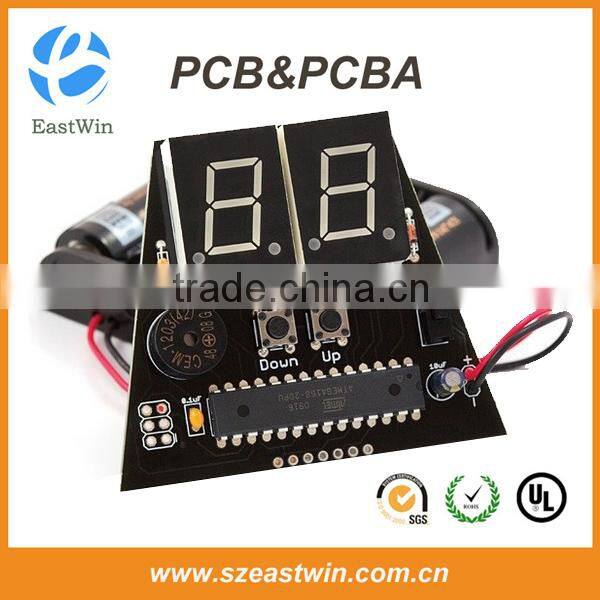

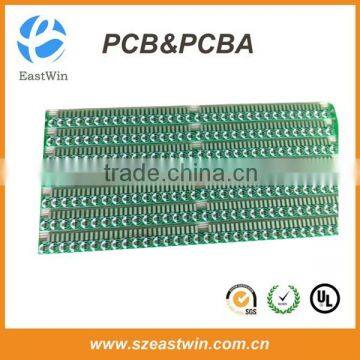

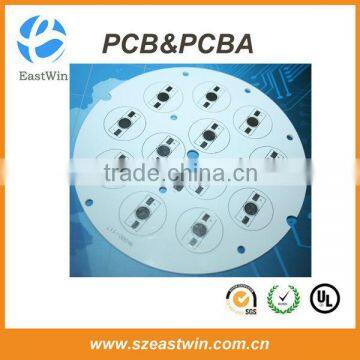

Led pcb /dip led pcb board view:

DIP led pcb / light assembly / pcb layout design :

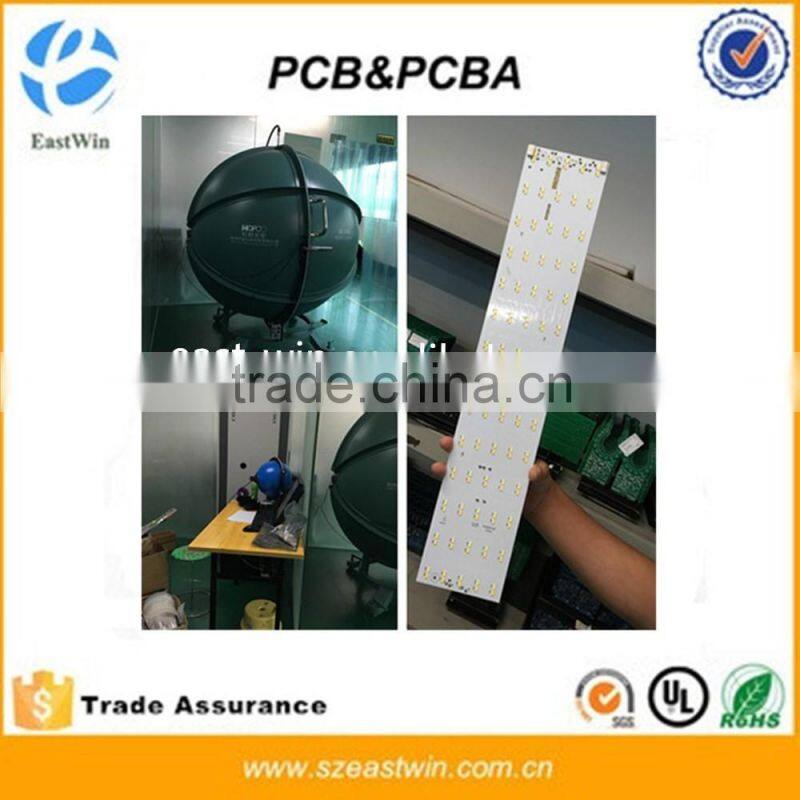

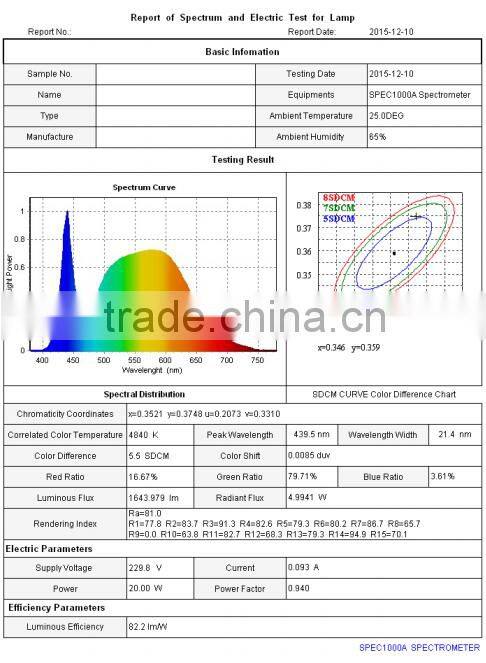

Intergrating Sphere function test with LED PCBA test report:

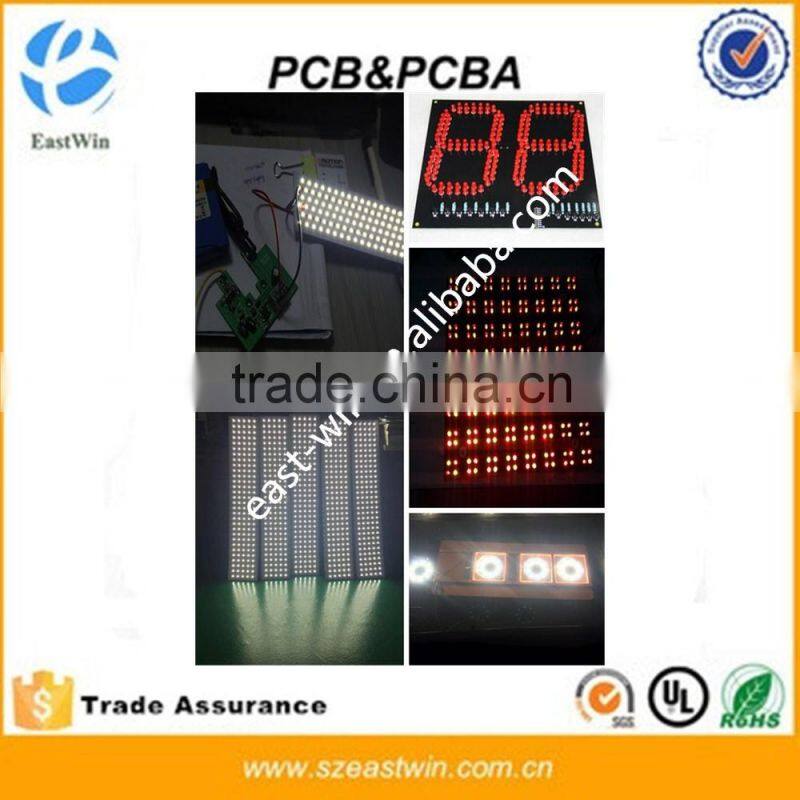

Led lighting test (contact with 220v voltage directly) view:

Payment Terms

30% or 50% Deposit of T/T,Western Union,Paypal,Trade Assurance

Packing&Shipment Methods

FAQ:

Q:I donnot have any design file,can i do turn-key from you?

A:Yes,we have led pcb design supplier,he can design FR4 LED PCB Board or Aluminum base led board,and will responsibility from design,led pcb manufacture,led function test etc.You only need tell us what led function you want get and what costs you want for this project.

Q:What files do you use in bare pcb fabrication?

A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG

Q:What format of Bom List you prefer?

A:We prefer in MS-Excel with Components Part No.,Manufacturer,Quantity,Value info, other format are also accepted.

Q:How can i know the processing about my PCBA order?

A:Each Customer will have a sale to contact with you. Eastwin working hours:AM 9:00-PM 6:00(Beijing Time) from Monday to Friday. we will reply your email in 2hours during our working time. And you also could contact with our sales by cellphone if urgent.

Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?

A: The quotation will be sent in less than 2 work days, for some special components, you also could recommend supplier to us.

Q:If all PCBAs will be tested before delivery if we provide the function testing method?

A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent with good quality.
