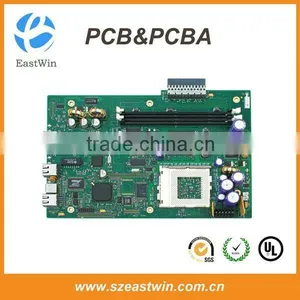

Help CenterElectronic Machine Components Pcb Assembly
Related Products
-
ROHS PCB SMT Assembly PCB DIP AssemblyUS$ 1.5 - 4.5MOQ: 10 Pieces -
Turnkey Bluetooth PCB Circuits Assembly for Wifi Bluetooth ModemUS$ 5.25 - 8.65MOQ: 10 Pieces
-
Fast OEM Circuit Board Pcba Assembly PCB & PCBAUS$ 1.5 - 4.5MOQ: 10 Pieces
-
Audio Player Circuit Assembly Audio Sound System Electronic ProjectUS$ 6.35 - 15.25MOQ: 1 Piece
-
GPS Tracking Pcb & Pcb Assembly With GPS Module SIM808 SIM800US$ 15.5 - 20.8MOQ: 5 Pieces
Specifications
1.PCB design,pcb assembly2.UL,SGS,Rohs Certificated PCB Board
4.OEM PCB service offered
5.PCB Board lead time:15 days
Welcome To Eastwin!
We are a profesional PCB and PCBA manufacturer in China, we can supply PCB Design,PCB Layout,PCB
Fabrication,PCBA Services for our customer. Pls contact us for more informations if you have any interests
in our products.
Our PCB board manufacture and PCBA service
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
Our PCB Process Capability:
| 1 | Layer | 1-30 layer |
| 2 | Material | FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2 |
| 3 | Board thickness | 0.2mm-7mm |
| 4 | Max.finished board side | 500mm*500mm |
| 5 | Min.drilled hole size | 0.25mm |
| 6 | Min.line width | 0.075mm(3mil) |
| 7 | Min.line spaceing | 0.075mm(3mil) |
| 8 | Surface finish/treatment | HALS/HALS lead free,Chemical tin,Chemical Gold,Immersion gold Inmersion Silver/Gold,Osp,Gold Plating |
| 9 | Copper thickness | 0.5-4.0oz |
| 10 | Solder mask color | green/black/white/red/blue/yellow |
| 11 | Inner packing | Vacuum packing,Plastic bag |
| 12 | Outer packing | Standard carton packing |
| 13 | Hole tolerance | PTH:±0.076,NTPH:±0.05 |
| 14 | Certificate | UL,ISO9001,ISO14001,ROHS,CQC |
| 15 | Profiling Punching | Routing,V-CUT,Beveling |
| 16 | Assembly Service | Providing OEM service to all sorts of printed circuit board assembly |
Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
View of Our Workshop
Our Superiority
1.High efficiency&Experience
We can provide one stop service.Established in 2004, with many years hard-working and constant innovation,we have
grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development
department and sophisticated quality control system
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether
it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality
contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'
needs.We take time to listen to your unique business needs and then set out to surpass them.
--------------------------------------------------------------------------------
If you are interested in products, please feel free to contact us for more detailed information.
We are looking forward to cooperating with you, and hope to be your reliable supplier in the near future.
