Specifications

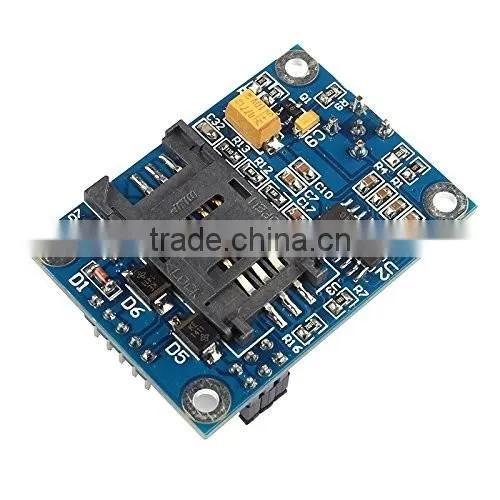

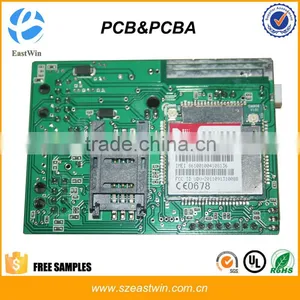

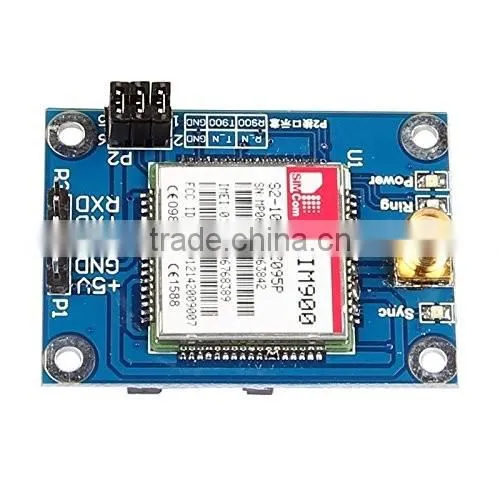

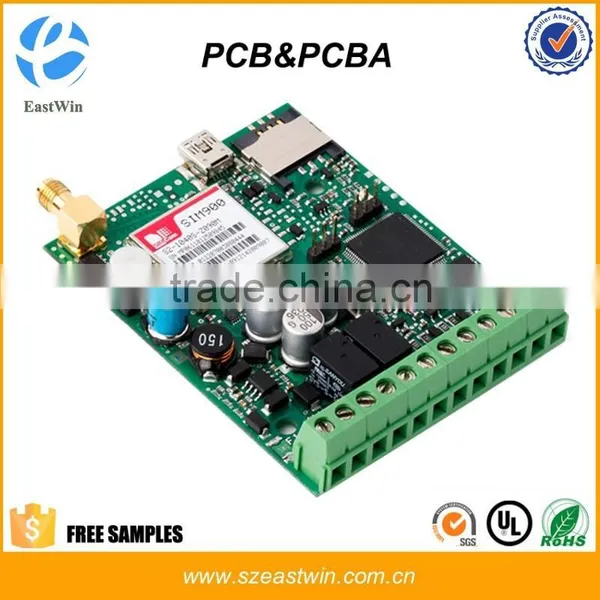

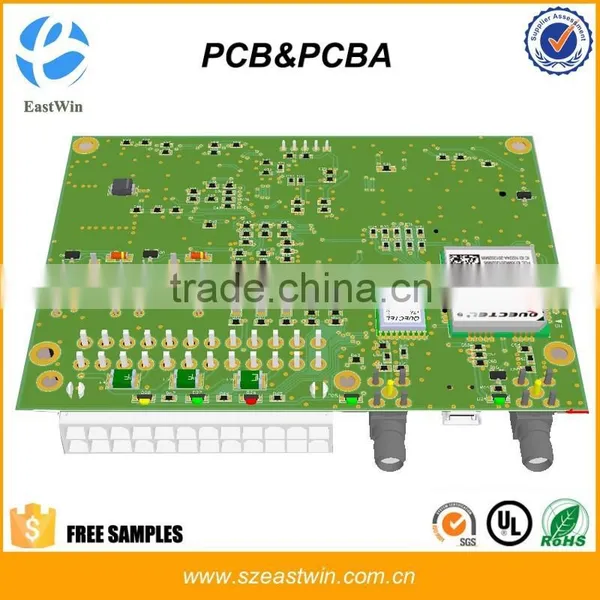

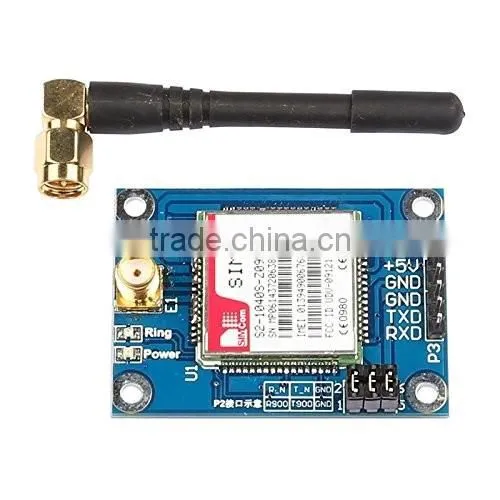

1.OEM Custom made gsm gprs gps module
2.ISO9001,ISO14001,UL,SGS,ROHS Certificate
3.Components purchasing,PCB,PCBA Turnkey service
4.PCB 24hours fast delivery,PCBA 12days delivery,LED PCB 10days fast delivery
SHENZHEN EASTWIN LTD.
| Technical Requirement | Professional Surface-mounting and Through-hole soldering Technology |
| Various sizes like 1206,0805,0603 components SMT technology | |
| ICT(In Circuit Test),FCT(Functional Circuit Test) technology | |
| PCB Assembly With UL,CE,FCC,Rohs Approval | |
| Nitrogen gas reflow soldering technology for SMT | |
| High Standard SMT&Solder Assembly Line | |
| High density interconnected board placement technology capacity | |
| Quote&Production Requirement | Gerber File or PCB File for Bare PCB Board Fabrication |
| Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly | |
| To reduce the quote time, please provide us the full part number for each components,Quantity per board also the quantity for orders. | |
| Testing Guide&Function Testing method to ensure the quality to reach nearly 0% scrap rate | |
| OEM/ODM/EMS Services | PCBA, PCB assembly: SMT & PTH & BGA |
| PCBA and enclosure design | |
| Components sourcing and purchasing | |
| Quick prototyping | |
| Plastic injection molding | |
| Metal sheet stamping | |
| Final assembly | |
| Test: AOI, In-Circuit Test (ICT), Functional Test (FCT) | |
| Custom clearance for material importing and product exporting | |
| Other PCB Assembly Equipments | SMT Machine: SIEMENS SIPLACE D1/D2 / SIEMENS SIPLACE S20/F4 |
| Reflow Oven: FolunGwin FL-RX860 | |
| Wave Soldering Machine: FolunGwin ADS300 | |
| Automated Optical Inspection (AOI): Aleader ALD-H-350B,X-RAY Testing Service | |
| Fully Automatic SMT Stencil Printer: FolunGwin Win-5 |
Certification
PCB PCBA LEADTIME
| ITEM | Sample | Trail Order | Mass order |
| Single layer | 24hours | 3days | 4-5days |
| Double side | 24-36hours | 4days | 5-7days |
| 4-10layer | 7-10days | 9-12days | 10-12days |
| Alu-base | 2days | 5days | 10-20days |
| PCBA | 12-15days | 15-20days | 25-30days |
PCB PCBA PACKAGE & SHIPPING
Q1: What’s your factory size?
We have factory area of 2000 SQM with total 326 employees.
Q2: How many production line in your factory?
We have 8 automatic SMT production lines,4 THT production line
Q3: what’s your test capacity?
Promise 100% AOI test, circuit test and function test for PCBA,X-RAY TEST for PCBA with BGA ICT tester,Flying Test for Bare PCB.Constant temperature and humidity led test machine.
Q4: what’s the requested files or information for quotation?And how long can get it?
BOM+Gerber files for PCBA,Gerber file or schematic for PCB,photos or samples for design project.
36-48hours for PCBA,24hours for PCB,2days for pcb design quotation.
Q5.What are the options for surface finish?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
Q6.What project can you design?
94v0/Aluminum LED Board with pcb,components on it,pcb assembly and case if needed.
94v0 PCB board with pcb design,pcb assembly with components assembled.
Simple GPS Tracker board with turnkey service(design with sample confirm & pcba manufacture)
3D printer board with Ramps,Mega2560,stepper,LCD board,Heated Board etc.
Feel free contact me if any pcb or pcba board questions any time,will reply asap!Thanks&Regards
