Bare rigid board PCB supplier
- 1000 Square Meter / Square Meters per Month
- Shenzhen Hongkong
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | OEM | Model Number: | EW-PCBA-J12061435 |
Base Material: | FR-4 | Copper Thickness: | 1oz | Board Thickness: | 1.6mm |
Min. Hole Size: | 0.25mm | Min. Line Width: | 0.075mm | Min. Line Spacing: | 0.075mm |
Surface Finishing: | Hasl |
Product Description
Specifications

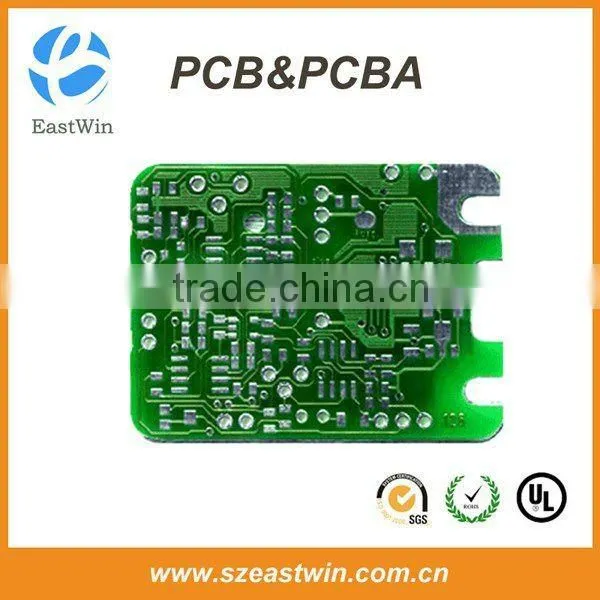

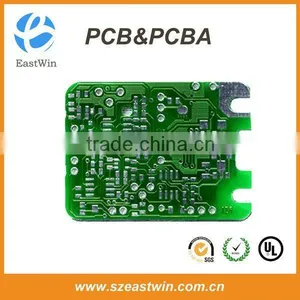

1.bare rigid board pcbfesional factory
3.best price
fessionalization.
5.1-2days sample
Eastwin is a professional export Rigid-flexible PCB .
Welcome to Eastwin!
Our PCB board manufacture and PCB Assembly service
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
Technical Specification For PCB
Number of Layer | 1,2,4 or 6,upto 18 layer |
Order Quantity | 1 to 50,000 |
Board Shape | Retangular,round,slots,cutouts,complex,irregular |
Board Type | Rigid, Flexible, Rigid-flexible |
Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
Board Cutting | Shear,V-score,Tab-routed |
Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
Copper Weight | 1.0, 1.5, 2.0 oz |
Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk Screen Min Line Width | 0.006'' or 0.15mm |
Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
Min Trace/Gap | 0.10mm, or 4mils |
Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
Board Thickness Tolerance | ±10% |
Copper Weight Tolerance | ± 0.25 oz |
Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
V-Score Depth | 20-25% of board thickness |
Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
PCB Assembly Capabilities
Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
Type of Assembly | SMT,Thru-hole |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
Components | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
Bare Board Size | Smallest:0.25*0.25 inches Largest:20*20 inches |
File Formate | Bill of Materials Gerber files Pick-N-Place file |
Types of Service | Turn-key,partial turn-key or consignment |
Component packaging | Cut Tape,Tube,Reels,Loose Parts |
Turn Time | Same day service to 15 days service |
Testing | Flying Probe Test,X-ray Inspection AOI Test |
PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Detailed Terms for Pcb Assembly
Technical requirement for pcb assembly:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement for pcb and pcb assembly:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Our Superiority
1.High efficiency&Experience
We can provide one stop service.Established in 2004, with many years hard-working and constant innovation,we have
grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development
department and sophisticated quality control system
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether
it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality
contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'
needs.We take time to listen to your unique business needs and then set out to surpass them.
