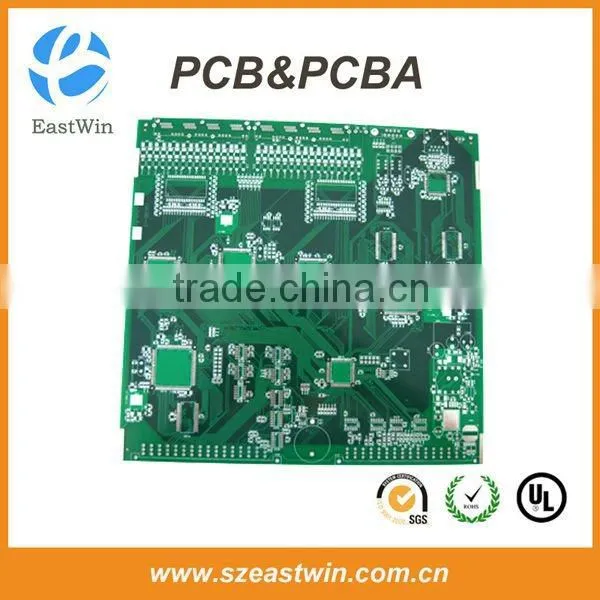

Help CenterOSP Rigid Bare Circuit Board Fr4 1.6mm PCB
Related Products
-
Fast FR4 Rigid&Flexible PCB Prototype Board ManufacturerUS$ 0.5 - 100MOQ: 1 Piece -
Inverter Welding Machine Circuit Board China ManufacutrerUS$ 0.1 - 100MOQ: 1 Piece
-
Professional ENIG/OSP UPS PCB Board ManufacturerUS$ 0.1 - 100MOQ: 1 Piece
-
OEM FR4 Aluminum PCB LED PCBA LED Driver BoardsUS$ 0.5 - 5MOQ: 1 Piece
-
Electronic Rigid Flex PCBUS$ 0.78 - 5MOQ: 100 Pieces
Specifications
1.OSP rigid bare circuit board fr4 1.6mm PCB2.UL,SGS,Rohs Certificated
3.Delivery in time
4.EMS/OEM PCB Board welcome
Welcome to Eastwin!
Our PCB board manufacture and PCBA service
* PCB board file with parts list provided by customers
* PCB board made, circuit board parts purchased by us
* PCB board with parts assembled
* Electronic testing circuit board or PCBA
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-free
* One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
PCB process capability:
Item |
Parameter |
||
Double sided |
Multilayer |
||
Number of Layers |
2 |
4~16 |
|
Copper Thickness |
0.25~3.0OZ |
0.5~3.0OZ |
|
Base Board Thickness |
0.3~3.2mm |
0.6~3.2mm |
|
Incombustibility |
94V-0 |
94V-0 |
|
Peelable resistance |
12.3N/cm |
12.3N/cm |
|
Twist |
≤0.5% |
≤0.5% |
|
Insulation resistance |
≥1011Ω |
≥1011Ω |
|
Test voltage |
10-300V |
10-300V |
|
Finished board area |
560×970mm |
560×970mm |
|
Min. Line Width and Spacing |
0.1/0.1mm |
0.1/0.1mm |
|
Copper thickness in hole |
≥25.0um |
≥25.0um |
|
Mini. pad diameter |
Inner layer |
|
0.05mm |
Out layer |
0.076mm |
0.076mm |
|
Mini. Hole Diameter |
0.25mm |
0.20mm |
|
Hole tolerance |
PTH |
±0.076mm |
±0.076mm |
NPTH |
±0.05mm |
±0.05mm |
|
Hole location tolerance |
±0.076mm |
±0.05mm |
|
profile tolerance |
Routing |
±0.1mm |
±0.1mm |
Punching |
±0.13mm |
±0.13mm |
|
Solder mask bridge ability |
≥0.1mm |
≥0.075mm |
|
Solder mask rigidity |
6H |
6H |
|
Solderable test |
245 Degrees Centigrade 5 second |
245 Degrees Centigrade 5 second |
|
Thermal cycling ability |
288 Degrees Centigrade 10 second |
288 Degrees Centigrade 10 second |
|
Surface Finishing |
OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger |
OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger |
|
Detailed Terms for Pcb Assembly
Technical requirement:
1) Professional Surface-mounting and Through-hole soldering Technology
2) Various sizes like 1206,0805,0603 components SMT technology
3) ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL,CE,FCC,Rohs Approval
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line
7) High density interconnected board placement technology capacity.
Quote requirement:
1)Gerber file and Bom list
2)Clear pics of pcba or pcba sample for us
3)Test method for PCBA
Send Inquiry to This Supplier
