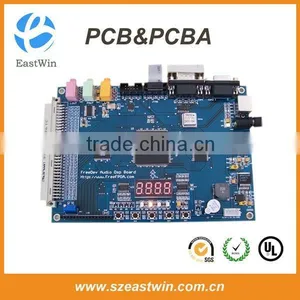

Rgid Flex PCB Board

Specifications

1.Rigid Flrx PCB Board
2.UL,SGS,Rohs Certificate
3.X-ray&AOI Test
4.Fast delivery for PCB

Welcome to Eastwin!



Shenzhen Eastwin Specialize in electronic pcb fabrication and pcb assembly manufacture.We are able to provide competitive price and fast lead time with high standard product as you desired.



Our PCB board manufacture and PCB assembly service:
o PCB board file with parts list provided by customers
o PCB board made, circuit board parts purchased by us
o PCB board with parts assembled
o Electronic testing circuit board or PCBA
o Fast delivery, anti-static package
o RoHS Directive-compliant, lead-free
o One stop service for PCB design, PCB layout, PCB manufacture, components purchasing,

PCB assembly, test, packing and PCB delivery



Technical Specification For PCB

Number of Layer	1,2,4 or 6,upto 18 layer
Order Quantity	1 to 50,000
Board Shape	Retangular,round,slots,cutouts,complex,irregular
Board Type	Rigid, Flexible, Rigid-flexible
Board Material	FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc.
Board Cutting	Shear,V-score,Tab-routed
Board Thickness	0.2-4.0mm, Flex 0.01-0.25mm
Copper Weight	1.0, 1.5, 2.0 oz
Solder Mask	Double-sided green LPI,Also support Red,White,Yellow,Blue,Black
Silk Screen	Double-sided or single-sided in white,yellow,black,or negative
Silk Screen Min Line Width	0.006'' or 0.15mm
Max Board Dimensions	20 inch*20inch or 500mm*500mm
Min Trace/Gap	0.10mm, or 4mils
Min Drill Hole Diameter	0.01'',0.25mm, or 10mils
Surface Finish	HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc.
Board Thickness Tolerance	±10%
Copper Weight Tolerance	± 0.25 oz
Minimal Slot Width	0.12'', 3.0mm, or 120mils
V-Score Depth	20-25% of board thickness
Design File Formate	Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG



PCB Assembly Capabilities

Quantity	Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000
Type of Assembly	SMT,Thru-hole
Solder Type	Water Soluble Solder Paste,Leaded and Lead-Free
Components	Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement
Bare Board Size	Smallest:0.25*0.25 inches Largest:20*20 inches
File Formate	Bill of Materials Gerber files Pick-N-Place file
Types of Service	Turn-key,partial turn-key or consignment
Component packaging	Cut Tape,Tube,Reels,Loose Parts
Turn Time	Same day service to 15 days service
Testing	Flying Probe Test,X-ray Inspection AOI Test
PCB assembly process	Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing



Detailed Terms for Pcb Assembly

Technical requirement for pcb&pcb assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
----ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
----PCB Assembly With UL,CE,FCC,Rohs Approval
----Nitrogen gas reflow soldering technology for SMT.
----High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.

Quote requirement for pcb&pcb assembly:
----Gerber file and Bom list
----Clear pics of pcba or pcba sample for us
----Test method for PCBA



Our PCB Assembly Shows

View of Our Workshop
