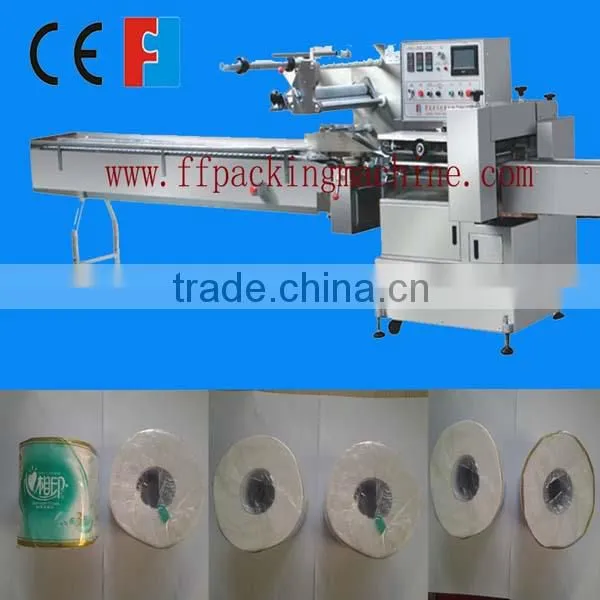

toilet roll paper horizontal packing machine

Specifications

roll paper packing machine adopts servo motor with higher control precision

  roll paper packing machine adopts servo motor with higher control precision





Model	FFA-450/99	FFA-450/120	FFA-450/150	FFA-450/180	FFA-590/120	FFA-590/150	FFA-590/180
Max film width(mm)	450	450	450	450	590	590	590
Packaging speed(bag/min)	30-220	30-220	30-220	30-220	30-200	30-200	30-200
Bag length(mm)	70-450	70-450	90-450	100-450	80-450	90-450	100-450
Bag width(mm)	10-150	10-150	10-150	10-200	10-200	10-200	10-200
Product height(mm)	5-45	5-65	5-85	5-120	5-65	5-85	5-120
Power voltage(v)	220	220	220	220	220	220	220
Total installed power(kw)	3.5	3.6	3.6	3.6	4	4	4





   Features:



   1. the appliaction of Omron PLC and servo motor, easy to operate and maintain.



   2. adopt world famous electronic parts like Omron, Panasonic, ensure the quality of our machine.



   3. colour marks tracing system makes sure precise cutting



   4. high speed and good stability.



   5. large colour touch screen digitally display the cut-off length, packing spped and turnout.



   6. date coder, automatic feeding system, automatic film splicer are optional, customization is available
