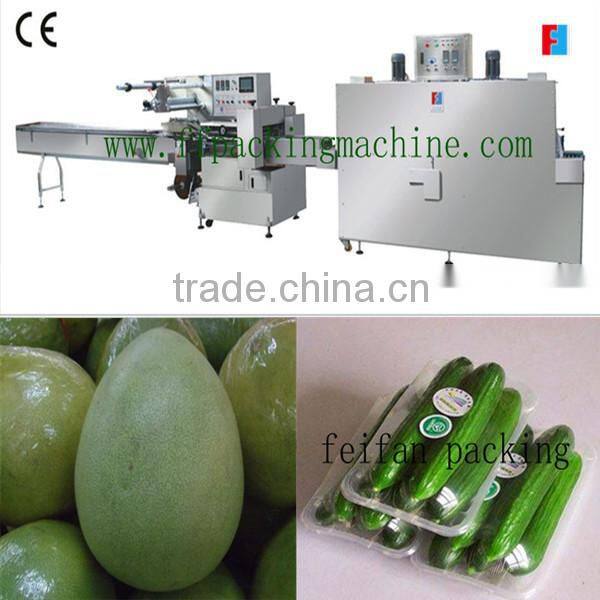

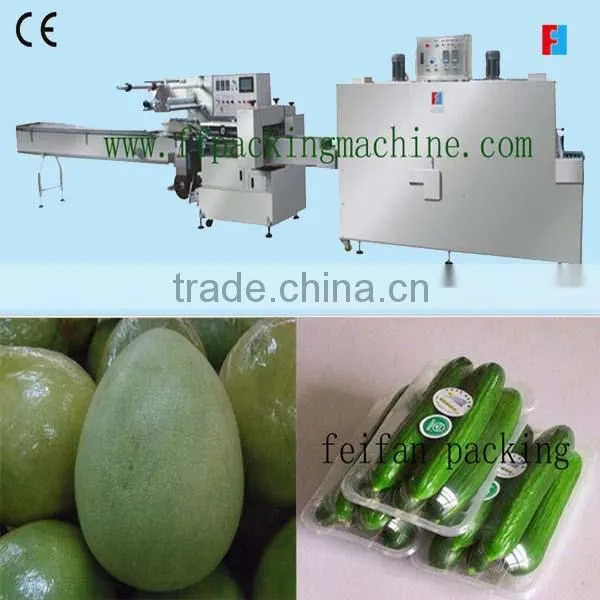

FFB Series Food Tray Wrap Machine for Fruit and Vegetable

FFB Series Food Tray Wrap Machine for Fruit and Vegetable thumbnail-1
FFB Series Food Tray Wrap Machine for Fruit and Vegetable photo-1
US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Wrapping, Sealing
Application:
Food
Contact Supplier Request Quote Chat Now
Qingdao Feifan Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Wrapping, Sealing
Application Food
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 3.6kw
Place of Origin Shandong, China
Brand Name FEIFAN
Model Number FFB
Dimension(L*W*H) 5700*1050*1700mm
Certification CE, ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

food tray wrap machine adopts servo motor and PLC controlled system, touch screen interface, easy to operate.

food tray wrap machine adopts servo motor and PLC controlled system, touch screen interface, easy to operate.

Technical Data



Model
Spec		 FFB4512 FFB4515 FFB4518 FFB5912 FFB5915 FFB5918 FFB5921
Film Width(mm)  450  450 450  590  590  590  590
Size of Package
L: Length(mm)
B: Width(mm)
H: Height(mm)		 L: 70-400
B: 10-150
H: 5-45		 L: 80-450
B: 10-150
H: 5-65		 L: 90-450
B: 10-150
H: 15-85		 L: 70-450
B: 10-200
H: 5-65		 L: 80-450
B: 10-200
H: 5-85		 L: 90-450
B: 10-200
H: 30-75		 L: 100-450
B: 10-200
H: 15-140
Packing Speed
(Bag/min )		 30-220 30-150 30-130 30-180 30-150 15-120 30-120
Dimension (mm) 5700× 1050× 1700 5700× 1250× 1800
Weight(kg) 1000 1000 1000 1000 1200 1200 1200
Main Power Single phase 220V, 50HZ
Total Power 3.6KW 3.6KW 3.6KW 4KW 4KW 4KW 4KW

 FFB series food tray wrap machine for fruit and vegetable





Features:



1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and  saving films.

2. human-machine operation, convenient and quick parameter setting

3. Self diagnosis failure function, clear failure display..

4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate..

5. Separate PID control to temperature, suitable for various packing materials..

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film..

7. Simple driving system, reliable working, convenient maintenance..

8. All the controls are achieved by software, convenient for function adjusting and upgrading



Packing sample



Why choose us:



FFB series food tray wrap machine for fruit and vegetable

Deatail of our machine

 FFB series food tray wrap machine for fruit and vegetableFFB series food tray wrap machine for fruit and vegetable

FFB series food tray wrap machine for fruit and vegetable
