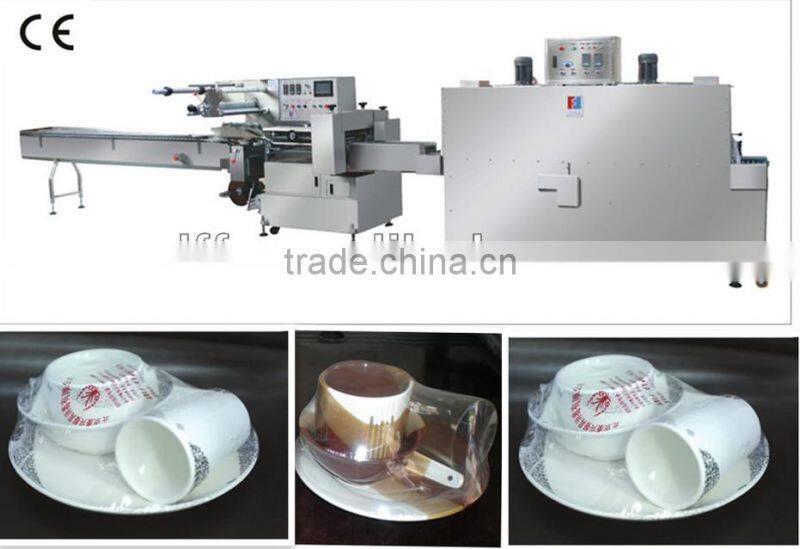

Disposable dinnerwares automatic shrink wrapping machine

Specifications

Disposable tableware automatic shrink wrapping machine:1.Servo motor system 2.with 24year experience 3.Based on Japan technology

This FFB automatic shrink wrapping machine is suitable for packing the disposable tablewares, bottles,such as the cosmetic bottles,such as shampoo bottles,lotion bottle,etc.



It has the followed specification:

1.Single servo motor with high control precision realizedstep-less control.

2.Large color touch screen store,pick up,automatically adjust,track,find cutting point,alarm,indicate barriers,accumulatively count packs, bag length and speed automatic display, which can realize precise cut and seal.
3.With photo-cell detecting the color mark and dual-tracing system, this machine can effectively eliminate any packing error and avoid materials waste.
4.New type vertical sealing design makes the seal at low temperature, which effectively reduces the film burning and packing wastes.
5.Adjustable bag former and pitches enable the change of packing products more conveniently.
6.With timing belt transmission, this machine has appearance, lower noise and less shake.
7.Double temperature area in shrink stove can achieve automatic temperature control.
8.Efficient air circulation ensures the quality of contraction.
9.Redundant film resection and recovery device.

Main Technical Data

Parameter	FFB590/210	FFB450/99	FFB450/120	FFB450/150		FFB590/120	FFB590/150		FFB 590/180
Max Film idth(mm)	590	450	450	450	590		590	590
Pack Speed(bag/min)	50-150	50-150	50-150	50-150	50-150		50-150	50-150
Pack Size(mm)	L:150-400 W:30-200 H:50-140	L:90-400 W:10-150 H:5-40	L:120-400 W:10-150 H:5-60	L:90-400 W:10-150 H:30-90	L:90-400 W:30-200 H:15-60		L:90-400 W:30-200 H:30-90	L:150-400 W:30-200 H:20-120
Dimensions(L*W*H)mm	5000*1105*1750	5000X965X1750				5000X1105X1750
Pack Material	POF	POF. PVC. OPP etc.
Total Power	Packaging machine:3.6kw.shrink stove:16.5kw Packaging machine: 3.6 KW					Shrinker Stove: 16.5KW
Electric Power Voltage	Packaging Machine: 220VAC,50HZ					Shrinker: 380VAC,50HZ
