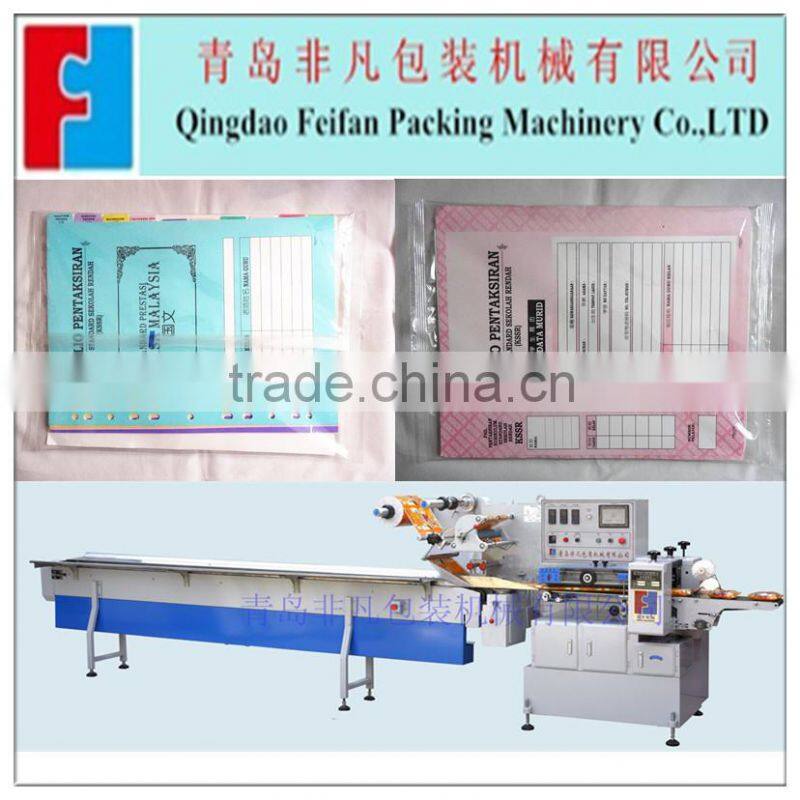

FFA Multifunction Automatic Flow Paper Packaging Machine
- Qingdao Port
- T/T D/P D/A
You May Like
-
FFA Automatic Multifunction Flow Crisps Packaging Machine
-
FFA Multifunction Flow Automatic Candy Packaging Machine
-
FFA Flow Automatic Protein Bars Packaging Machine
-
FFA Flow Automatic Chocolate Packaging Machine
-
FFA Multifunction Automatic Pillow Screw Packaging Machine
-
Multifunction Automatic Pillow Popsicle Packaging Machine
Product Details
| Condition | New | Application | Chemical, Commodity, Medical | |
| Packaging Type | Film | Packaging Material | Plastic | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Power | 3.6 -4 kw | |
| Place of Origin | Shandong, China | Brand Name | FEIFAN | |
| Model Number | FFA | Dimension(L*W*H) | 5700*1050*1700mm | |
| Weight | 1000KG | Certification | ISO9001-2008;CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

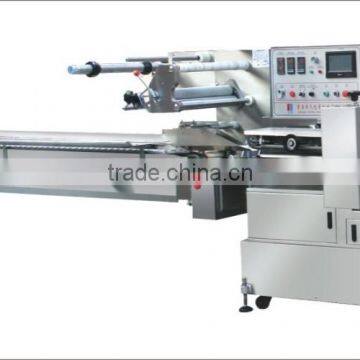

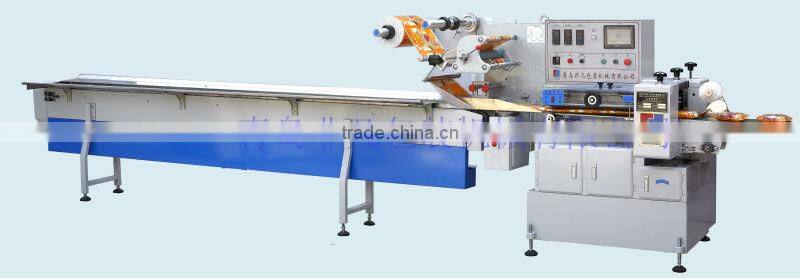

FFA multifunction automatic flow paper packaging machine with CE certificate
Japan technology and original drawings,Life time more than 15 years. Qingdao FEIFAN Packing Machinery maily focus on R&D,producing,marketing and service of packing machines and related products. |
The top equipement in the flow paper packaging machine area with more than 20 years experiences.
Special design customized .
The principal of our company is Safety,Eco-friendy,High Efficiency and Cost-saving.
Introduction:
1. Servo motor system.
2.CERTIFICATE IS09001:2008.
3. Electrical Parts of pillow packing machine from Japan & Germany.

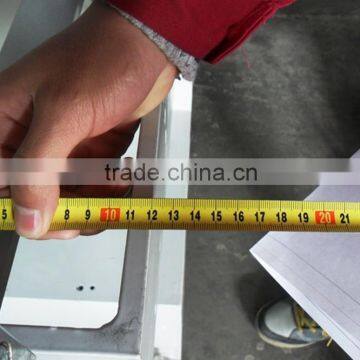

4.12mm steel plate.
Qingdao FEIFAN Packing Machinery FFA Series Pillow Packing Machine

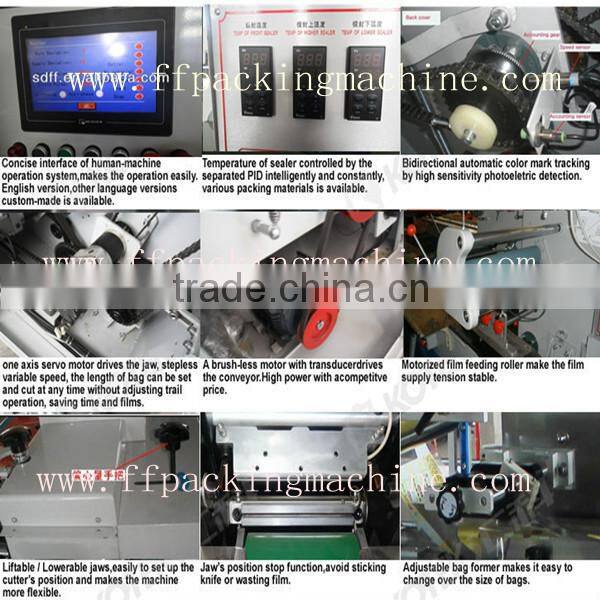

1. Reliable and stable system, low maintenance, programmable controller.

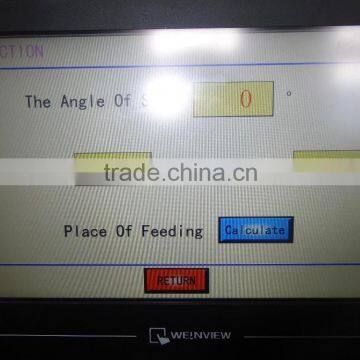

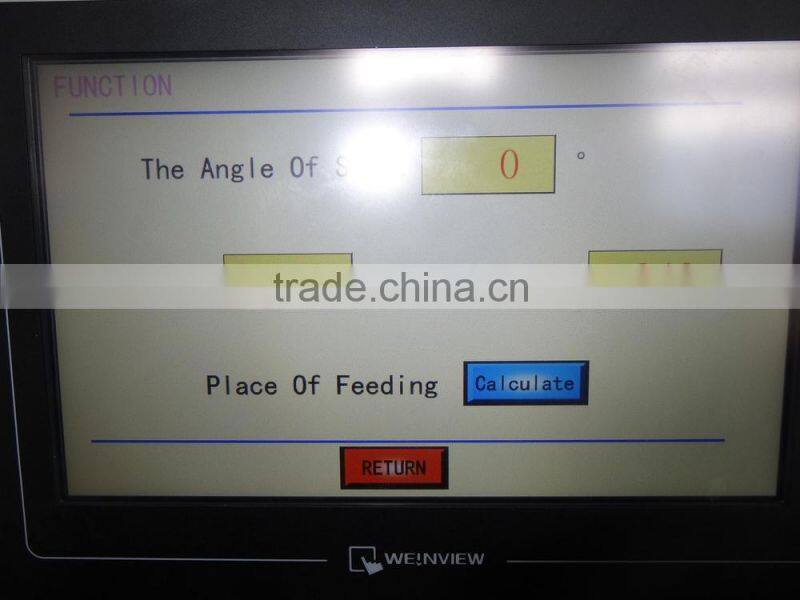

2. Video-display contains length of packing film, speed, output, temperature of packing etc.
3. Adopt PLC control system, reduce mechanical contact.
4. Frequency control, convenient and simple.
5. Bidirectional automatic tracking, color control patch by photoelectric detection
6. The main electrical elements adopt well-known international brands.
FFA Parameter:
Model | FFA-450/99 | FFA-450/120 | FFA-450/150 | FFA-450/180 | FFA-590/120 | FFA-590/150 | FFA-590/180 |
Max film width(m) | 450 | 450 | 450 | 450 | 590 | 590 | 590 |
Output speed(bag/min) | 30-220 | 30-220 | 30-220 | 30-220 | 30-200 | 30-200 | 30-200 |
Bag length(mm) | 70-450 | 70-450 | 90-450 | 100-450 | 80-450 | 90-450 | 100-450 |
Bag width(mm) | 10-150 | 10-150 | 10-150 | 10-200 | 10-200 | 10-200 | 10-200 |
Product height(mm) | 5-45 | 5-65 | 5-85 | 5-120 | 5-65 | 5-85 | 5-120 |
Power voltage(v) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Total power(kw) | 3.5 | 3.6 | 3.6 | 3.6 | 4 | 4 | 4 |
Weight(kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
Dimensions (LxWxH) mm | 5700x1050x1700 | 5700x1250x1800 | |||||
Application:

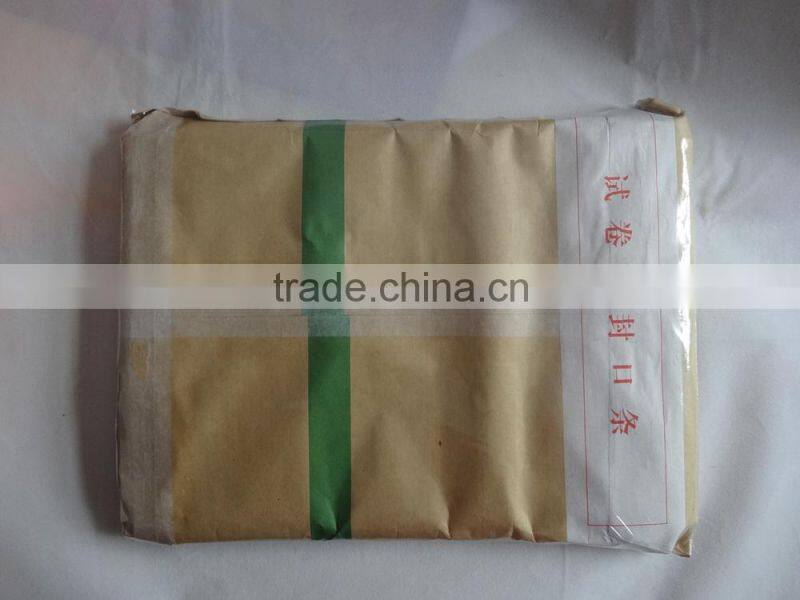

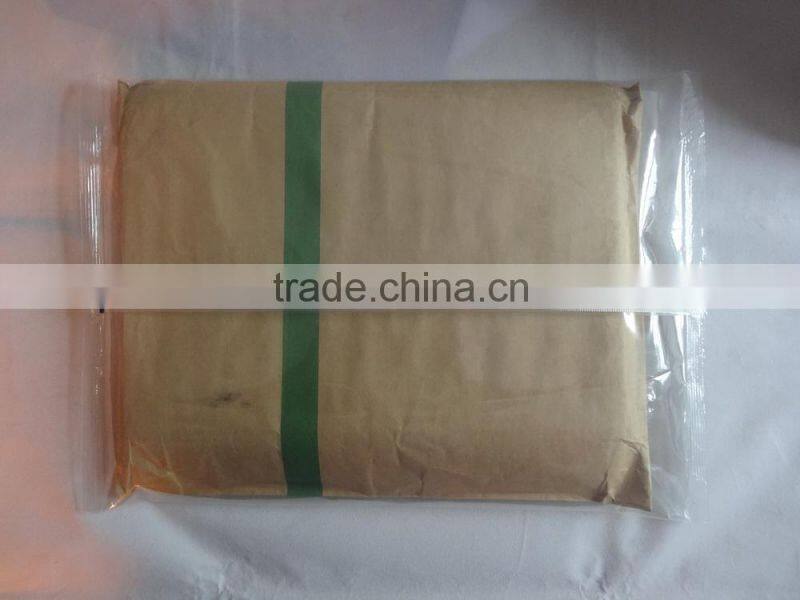

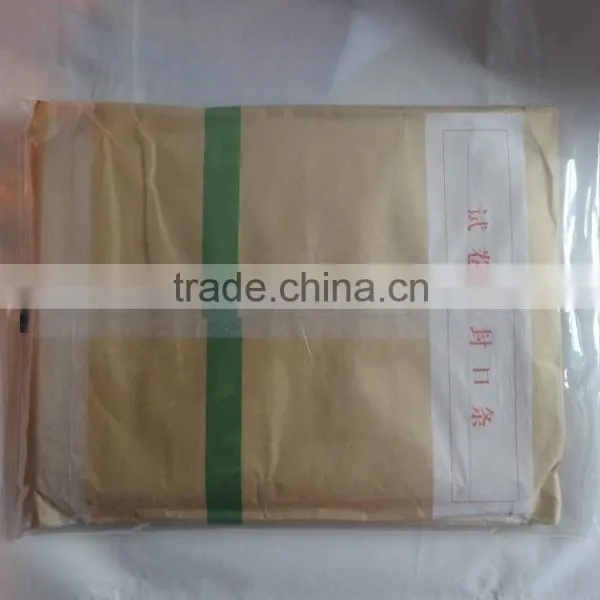

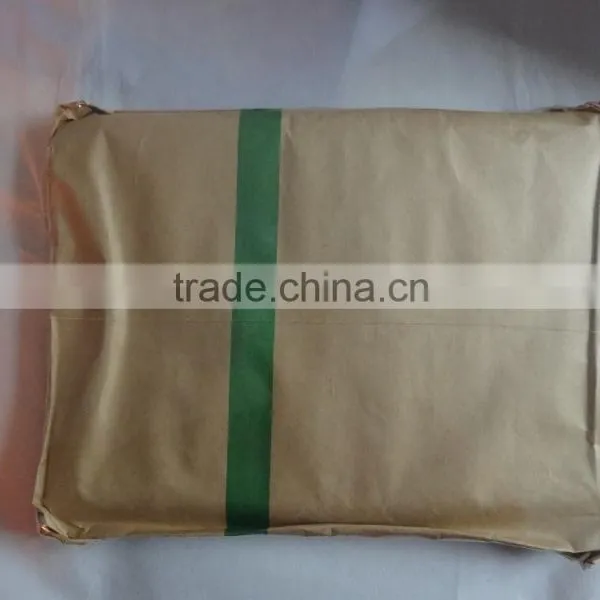

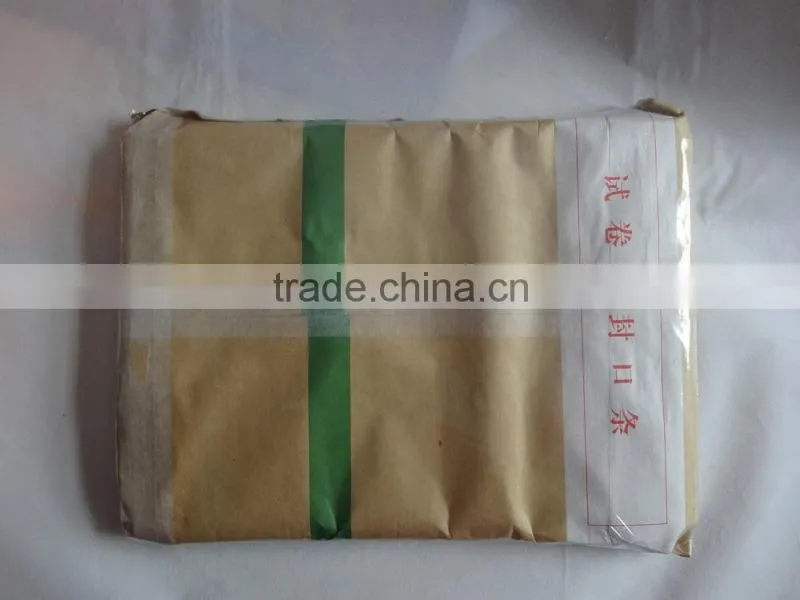

Model FFA packaging machine ,mainly for packaging books,testing paper, exercise books,soaps,food,bread, croissant,cake,pasta, and so on bakery products, especially for packaging from small bread to big bread,the bag former mode is adjustable ,with perfect package.
