Specifications

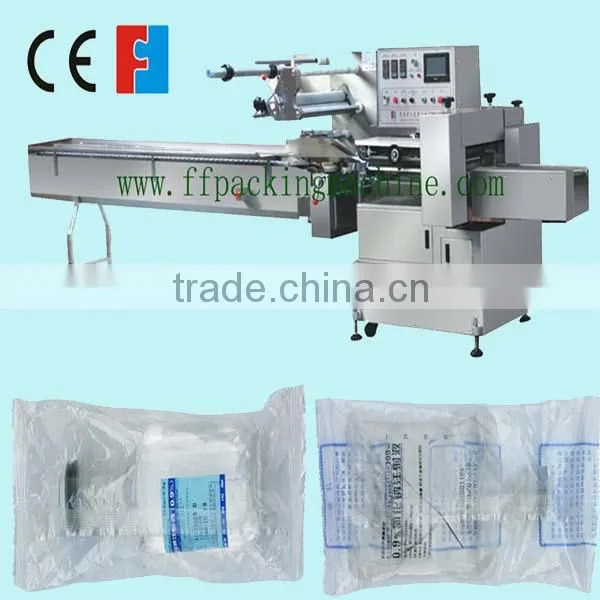

medical infusion bag packing machine adopts PLC control large colour touch screen, easy to operate
medical infusion bag packing machine is controlled by touch screen PLC controller with human-machine interface, and is easy to set parameter, works in high speed with high efficiency.
Parameter:
Model |
FFA-450/99 |
FFA-450/120 |
FFA-450/150 |
FFA-450/180 |
FFA-590/120 |
FFA-590/150 |
FFA-590/180 |
||
Max film width(mm) |
450 |
450 |
450 |
450 |
590 |
590 |
590 |
||
Packaging speed(bag/min) |
30-220 |
30-220 |
30-220 |
30-220 |
30-200 |
30-200 |
30-200 |
||
Bag length(mm) |
70-450 |
70-450 |
90-450 |
100-450 |
80-450 |
90-450 |
100-450 |
||
Bag width(mm) |
10-150 |
10-150 |
10-150 |
10-200 |
10-200 |
10-200 |
10-200 |
||
Product height(mm) |
5-45 |
5-65 |
5-85 |
5-120 |
5-65 |
5-85 |
5-120 |
||
Power voltage(v) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
||
Total installed power(kw) |
3.5 |
3.6 |
3.6 |
3.6 |
4 |
4 |
4 |
||
Weight(kg) |
1000 |
1000 |
1000 |
1000 |
1200 |
1200 |
1200 |
||
Dimensions(LxWxH)mm |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1050*1700 |
5700*1250 |
||||
Features:
1. PLC controller, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
