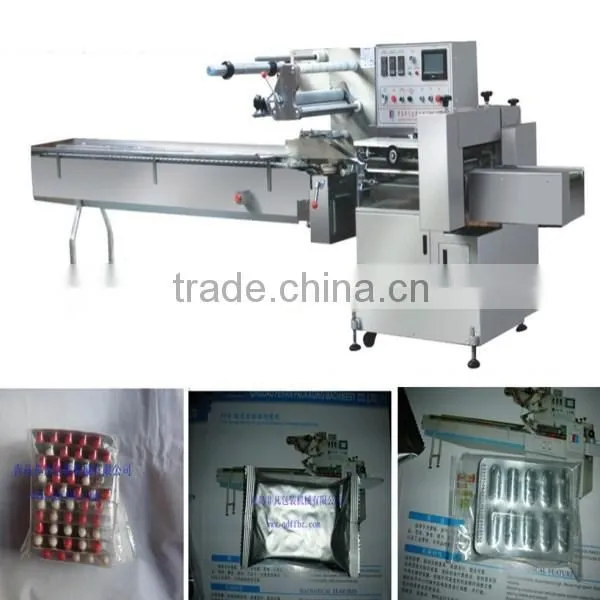

Rotary Type Full Automatic Pharmaceutical Blister Flow Packaging Machine
- 20 Set / Sets per Month
- QINGDAO CHINA
- T/T PayPal
-
Without electricity waste tire doubling and tripling machine scrap tyre packing unpacking machine
-
MK60S Semi Automatic Strapping Machine
-
Mastek Strapping Head
-
MK900 Fully Automatic Strapping & Wrapping All In One Machine
-
Chocolate Candy Foil Folding Wrapping Machine
-
chicken/bouillon cube Wrapping machinery /cube packaging machinery
Product Details
| Condition: | New | Application: | Food | Packaging Type: | Film |
| Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220v | Power: | 3.6kw | Place of Origin: | Shandong, China |
| Brand Name: | FEIFAN | Model Number: | FFA | Dimension(L*W*H): | 5700x1050x1700mm |
| Weight: | 1000KG | Certification: | ISO9001 CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
High quality automatic pharmaceutical blister flow packing machine with PLC control
Qingdao Feifan Packing Machinery Co., Ltd can supply all kinds of packaging machines for pharmaceutical blister, medical blister with cheap price and good quality.
1.FFA model PLC control
2.With CE approved
3.Servo motor contol
Model | FFA-450/99 | FFA-450/120 | FFA-450/150 | FFA-450/180 | FFA-590/120 | FFA-590/150 | FFA-590/180 |
Max film width(m) | 450 | 450 | 450 | 450 | 590 | 590 | 590 |
Package rate(bag/min) | 30-220 | 30-220 | 30-220 | 30-220 | 30-200 | 30-200 | 30-200 |
Bag length(mm) | 70-450 | 70-450 | 90-450 | 100-450 | 80-450 | 90-450 | 100-450 |
Bag width(mm) | 10-150 | 10-150 | 10-150 | 10-200 | 10-200 | 10-200 | 10-200 |
Product height(mm) | 5-45 | 5-65 | 5-85 | 5-120 | 5-65 | 5-85 | 5-120 |
Power voltage(v) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Total installed power(kw) | 3.5 | 3.6 | 3.6 | 3.6 | 4 | 4 | 4 |
Weight(kg) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
Dimensions(LxWxH)mm | 5700*1050*1700 | 5700*1050*1700 | 5700*1050*1700 | 5700*1050*1700 | 5700*1250*1800 | 5700*1250*1800 | 5700*1250*1800 |
Feature
1. PLC controller, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.
As an integrated manufacturing company, Qingdao Feifan Packing Machinery Co., Ltd mainly focus on R&D, production, marketing and service of packing machines and related products. Our products includes:
Horizontal packing machines
Shrink wrapping machines
Box-motion type packing machines
Cellophane overwrapping machines
Biscuit on edge packing machines
Static shrink wrapping machines
End-folded X-fold biscuit on edge packing machines
Pre-made bag giving packing machines
Your any questions or inquiries are welcome here.
For more details, please contact us freely.
