Automatic Inner Tyre Packing Machine

Automatic Inner Tyre Packing Machine thumbnail-1
Automatic Inner Tyre Packing Machine photo-1
US$ 15,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Function:
Wrapping
Application:
Other, Machinery & Hardware
Contact Supplier Request Quote Chat Now
Qingdao Feifan Packing Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO CHINA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Function Wrapping
Application Other, Machinery & Hardware
Packaging Type Film
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 3.6KW
Place of Origin Shandong, China
Brand Name FF
Model Number FFA
Dimension(L*W*H) 5700x1050x1700mm
Certification BV, CE,SGS,BV
After-sales Service Provided Engineers available to service machinery overseas

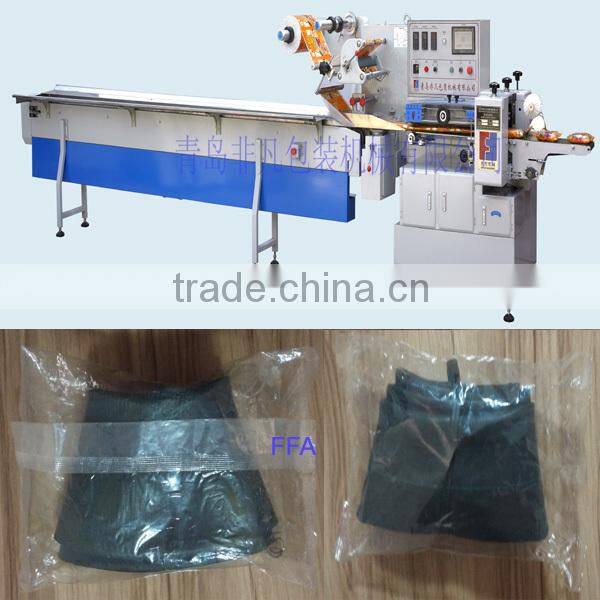

Automatic Inner Tyre Packing Machine ,is specially made for packing tire, with special made feeding conveyor on the packing machine ,it is the best tire packing machine.







Automatic inner tyre  packing machine Technical Data



Model
FFA-450/120
FFA-450/150
FFA-590/120
FFA-590/150
FFA-590/180
Max film width(mm)
450
450
590
590
590
Packaging rate(bag/min)
30-150
30-150
30-120
30-120
30-120
Bag length(mm)
70-450
80-450
70-450
80-450
90-450
Bag width(mm)
10-150
10-150
10-200
10-200
10-200
Product height(mm)
5-45
5-65
5-65
5-55
5-120
Power voltage(v)
220
220
220
220
220
Total installed power(kw)
3.6
3.6
4
4
4
Weight(kg)
1000
1000
1200
1200
1200
Dimensions(LxWxH)mm
5700*1050*1700
5700*1050*1700
5700*1250*1800
5700*1250*1800
5700*1250*1800





Automatic inner tyre packing machine  Features:



1. transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films.



2. human-machine operation, convenient and quick parameter setting.



3. Self diagnosis failure function, clear failure display..



4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate..



5. Separate PID control to temperature, suitable for various packing materials..



6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.



7. Simple driving system, reliable working, convenient maintenance..



8. All the controls are achieved by software, convenient for function adjusting and upgrading



code printer,automatic feeding system, automatic film splicer,punching system are optional, customization is



available.
