Specifications
blister packaging machinePLC control
large colour touch screen
blister packaging machine adopt full servo motor control, full automatic easy operation
Parameter:
Model |
FFC-M590 |
FFC-M680 |
Max film width(mm) |
590 |
680 |
Packaging rate(bag/min) |
30-100 |
30-100 |
Bag length(mm) |
80-500 |
80-500 |
Bag width(mm) |
10-250 |
10-300 |
Product height(mm) |
5-240 |
5-240 |
Power voltage(v) |
220 |
220 |
Total installed power(kw) |
4 |
4 |
Weight(kg) |
1200 |
1200 |
Dimensions(LxWxH)mm |
5700*1250*1800 |
5700*1350*1800 |
Features of Blister Packaging Machinery:
1. PLC controller, flexible bag length cutting, operator needn’t to adjust the unloading working, saving time and saving films.
2. Human-machine touch screen, Chinese or English displaying, convenient and quick parameter setting.
3. Self diagnosis failure function, clear failure display.
4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.
5. Separate PID control to temperature, suitable for various packing materials.
6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.
7. Simple driving system, reliable working, convenient maintenance.
8. All the controls are achieved by software, convenient for function adjusting and upgrading.

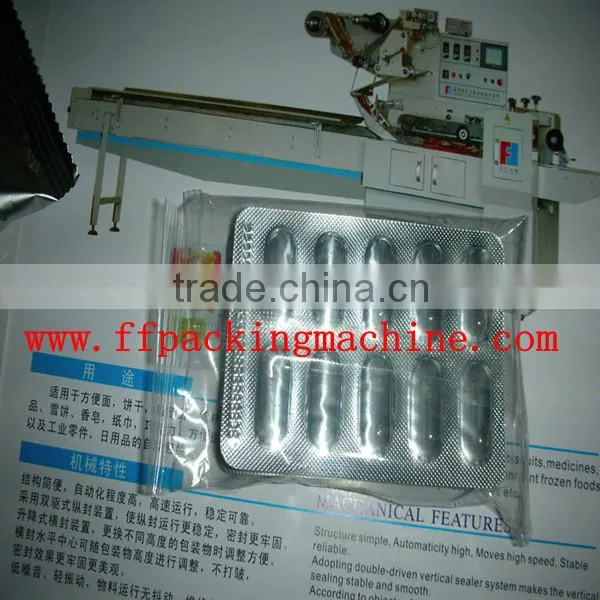

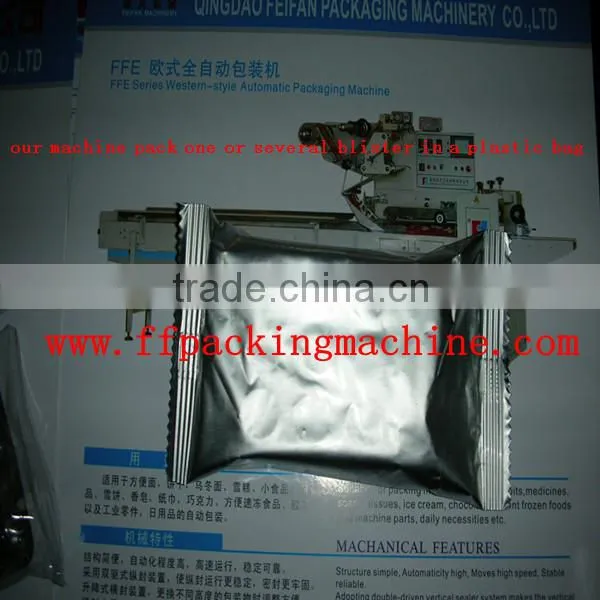

Packing sample

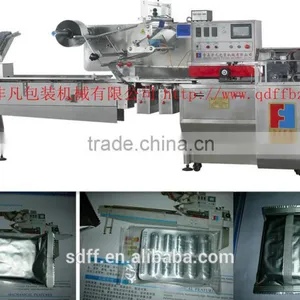

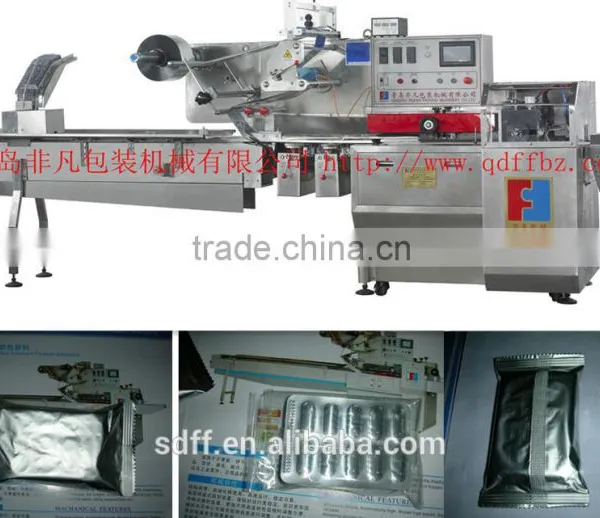

Detail of our machine
