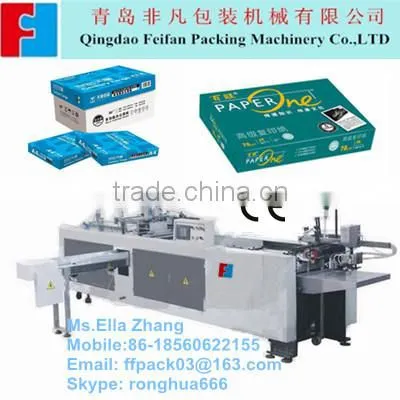

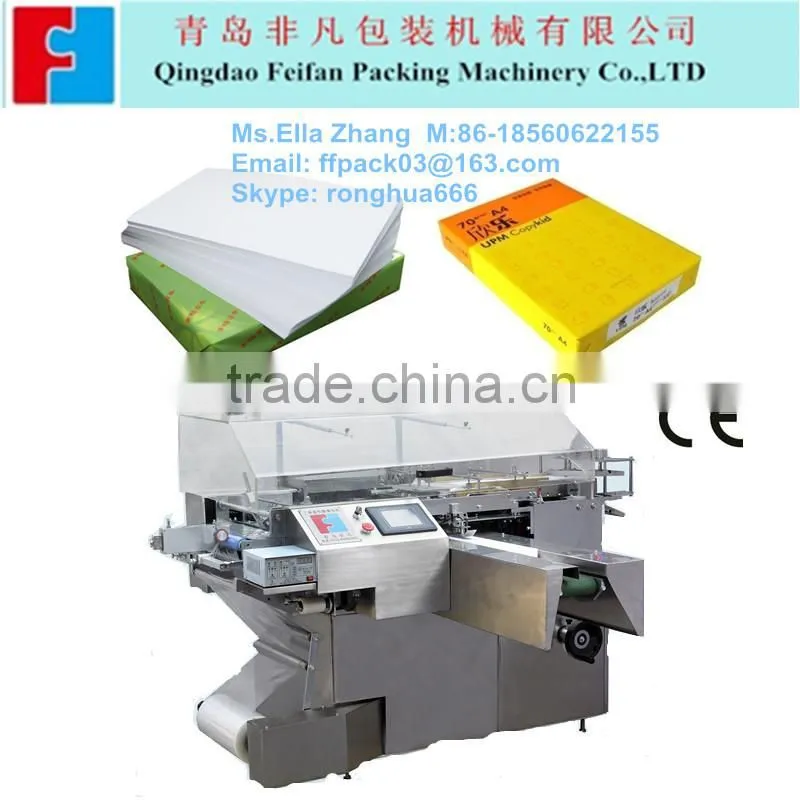

FFT automatic a4 paper cutting & packaging machine
Japan advanced techonogy and original drawngings
Over 20 years experiences and constant innovation
Make the best quality machine and provide the best machine
Parameter:
| Specification: | |
| packing size | (80-340)mm*(70-150)mm*(30-130)mm |
| packing speed | (20-40)big bag/min |
| packing material detail | 75mm/0.021-0.028mm |
| gas consumption(kw) | (20-30)L/min |
| power(TN-S) | 2.25KW |
| power consumption (kw) | 1.5kw |
| general noise(A) | <65db(A) |
| dimension(L*W*H) | 1300mm*1250mm*1050mm |
| weight(kg) | 1000kg |
| voltage | 50HZ/AC220V/50HZ/AV220V(two phase,three wire system) |
Brief Introduction:
The machine can pack A4 copy sheets(210*297mm),B5 copy sheets(182*257mm) and 16K copy sheets(195*270mm).The most advanced automatic gluing spraying system is equipped.And the packaging costs can be greatly reduced,and packaging veracity,effect,sealing capacity are increased.
Product Features:
1.The cellophane automatic packing machine adopts PLC and large touch screen .
2.Dual frequency conversion makes the operation easy and simple.
3.Bag length can be set and cut in one step, saving time and film.
4.The packing process is anti-moisture,dustproof and anti-forging.
5.Adopts self fault diagnosis syatem and display packing faults clearly.
6. Photo cell color tracing with high sensitivity, showing the cutting and sealing position more accurately.
7.Position stop function, without sticking knife or wasting film.
8.Suitable for various package sizes.
9.Reasonable and construct design, easy to operate and maintain.
