Specifications
stationary dry concrete batching plant1.ISO&CE approved
2.use for road building
3.good price
4.With centre control room

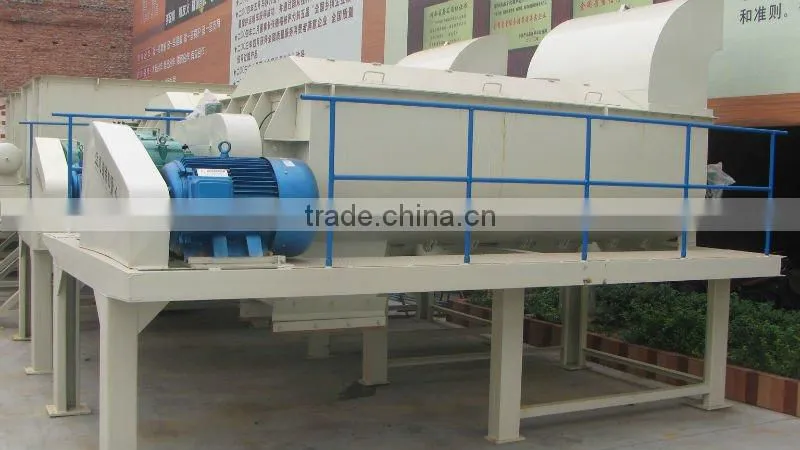

WBZ300T
stationary dry concrete batching plant
WBZ300T volume measuring electromagnetic adjustable speed type stabilized mixing plant mainly uses in construct project the and so on first-class highway, urban road,airport, harbor the construction. The equipment has the characteristic as follows:
1.The machine has volume measuring and electromagnetic speed regulation.
2.The mixer is advanced performance and high- class seal technique. The seal of end of axes is easy to replace. 3.There is overhaul door on the side of machine. The mixer is big capacity and high productivity.
4.The batching system of aggregate adopts speed regulation belt conveyer and volume measuring. The powder batching system adopts stellated feeding device. It is stabile and credibility and change prescription rapidly.
5.There is manual and automatic control. It is good credibility and easy to operate. The operation is controlled on the console.
6.It adopts electromagnetic speed regulation. The main electrical component is from France Schneider Company.
7.The transportation of finished product material adopts advanced loop rubber belt. It is large capacity and runs reposefully.
8.The machine is module type structure. It is easy to assemble,disassemble and transport.
parameter
Items |
WBZ300 |
WBZ400 |
WBZ500 |
Rated productivity |
≥300t/h |
≥400t/h |
≥500t/h |
Aggregate diameter |
≤60mm |
≤60mm |
≤60mm |
|
Capacity of aggregate Silo |
3x9m3 |
3x12m3 |
4x12m3 |
Capacity of finished products |
6m3 |
6m3 |
8m3 |
Error of aggregate metage |
<+–2% |
<+–2% |
<+–2% |
Error of cement metage |
<+–1% |
<+–1% |
<+–1% |
Speed of mixing shafts |
70.8r/min |
73.8r/min |
63r/min |
Total power |
90.25kw |
105kw |
150.5kw |
Total mass |
39000kg |
41000kg |
51000kg |
