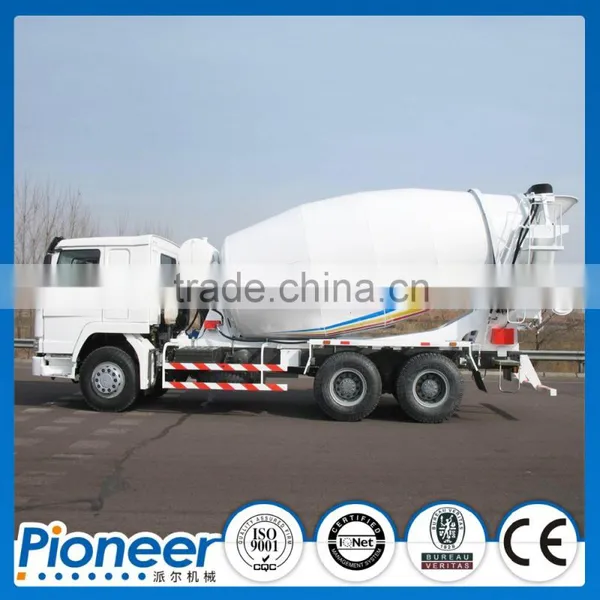

Custom Brand New Electric Concrete Mixer Truck Specifications Manufacturer
US$ 60,000 - 65,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Pioneer
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Manufacturer Howo Chassis Concrete Mixer Truck 5m3-16m3 for SaleUS$ 60,000 - 65,000MOQ: 1 Unit -
10 Cubic Meters Concrete Mixer Truck With Best Price for SaleUS$ 60,000 - 65,000MOQ: 1 Unit
-
High Quality Concrete Mixer Truck in Good Condition for SaleUS$ 60,000 - 65,000MOQ: 1 Unit
-
Diagram of 9 Cubic Meters Concrete Mixer Truck For SaleUS$ 60,000 - 65,000MOQ: 1 Unit
-
Low Price High Quality Mobile Concrete Mixer TruckUS$ 60,000 - 65,000MOQ: 1 Unit
Condition
New
Place of Origin
Henan, China
Brand Name
Pioneer
Model Number
HDT5259GJB Cement Mixing Truck 9m3
Weight
13T, 13205(kg)
Dimension(L*W*H)
9200mm*2490mm*3800mm
Power(W)
247kw
Certification
CCC/ISO9001
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Custom Brand New Electric Concrete Mixer Truck Specifications Manufacturer
Feature of Diagram of Custom Brand New Electric Concrete Mixer Truck Specifications Manufacturer
1. The hydraulic system adopts Germany Rexroth, Italy ARK, America Sauer;
2. Double screw blades make sure the concrete mix very thoroughly and continuous discharge and not segregation;
3. The mixing drum is made from the special close grain high-hardness steel plate B520JJ which is produced by Shanghai Baosteel and its service life can last 8-10 years;
4. With the minor angle inclination, the gravity of the whole truck is low and stable;
5. Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
6. With the discharge downspouting to pave the way for the quick and clean discharging;
7. The optimized design of mixing drum and no dead angles to ensure the concrete residue ratio is less than 1%;
8. With the pedal, security barrier and anti-skid design to ensure personal safety;
Technical Parameter of Custom Brand New Electric Concrete Mixer Truck Specifications Manufacturer
| Model | SDX52 53GJB |
SDX5 254GJB |
SDX5 255GJB |
SDX5 256GJB |
SDX52 58GJB |
SDX53 11GJB |
SDX53 12GJB |
|
| Operation Data |
Geometric volume of mixing drum (m3) |
16.2 | 13.4 | 13.4 | 13.4 | 14.9 | 18.47 | 20.81 |
| Mixing volume (m3) | 10 | 8 | 8 | 8 | 9 | 12 | 14 | |
| Stuffing rate(%) | 61.7% | 59.7% | 59.7% | 59.7% | 60.4% | 65% | 57.7% | |
| Remains(%) | <1 | <1 | <1 | <1 | <1 | <1 | <1 | |
| Rotate speed of mixing drum (r/min) |
1~14 | 1~14 | 1~14 | 1~14 | 1~14 | 1~14 | 1~14 | |
| Obliquity of mixing drum(°) | 11.5 | 13 | 13 | 13 | 12 | 12 | 10 | |
| Overall dimen sion(mm) |
9400x2500 x3850 |
8650x2500 x3780 |
8204 x2496 x3850 |
8204x 2496 x3850 |
8950x 2500 x3945 |
8950x 2500 x3945 |
11150x 2495 x3998 |
|
| Weight(kg) | 13205 | 12605 | 12800 | 12800 | 13100 | 14700 | 15400 | |
| Way of water supply | Water pump | Water pump | Water pump | Water pump | Water pump | Water pump | Water pump | |
| Water tank capacity(L) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | |
| Reduction gearbox | From Italy | From Italy | From Italy | From Italy | From Italy | From Italy | From Italy | |
| Hydraulic pump | EATON /5423-518 Italy ARK / PV89 MHR20 |
EATON /5423-518 Italy ARK / PV89 MHR20 |
Rexroth A4VTG90/ EATON/5423-518 Italy ARK / PV89MHR20 |
Rexroth A4VTG90/ EATON/6423-279 Italy ARK / PV89MHR20 |
||||
| Motor | EATON /5433-138 Italy ARK / MF89V20 |
EATON /5433-138 Italy ARK / MF89V20 |
Rexroth AA2FM80/ EATON/5433-138 Italy ARK / MF89V20 |
Italy AA2FM90/ EATON/6433-042 Italy ARK / MF89V20 |
||||
| Chassis parameter | Series | HOWO-7 | STRW | HOWO-7 | HOWO-7 | AUMAN | HOWO-7 | HOWO-7 |
| Model | ZZ1257 N3847C |
ZZ1256 N3246C |
ZZ1257 M3247C |
ZZ1257 N3247C |
BJ5257 GMPJB-S |
ZZ1317 N3268W |
BJ5313 GPF JC-S |
|
| Wheel base(mm) |
3825+1350 | 3225+ 1350 |
3225 +1350 |
3225+ 1350 |
3575 +1350 |
1800+ 3200 +1350 |
1800+ 3450 +1350 |
|
| Motor model discharge(L) |
WD61 5.95E(9.726) |
WD615. 95E (9.726) |
WD61 5.95E (9.726) |
WD615. 93E (9.726) |
WP10 .336 |
WD 615.95E (9.726) |
WD6 15.96E (9.726) |
|
| Output power/rotate speed (kW/RPM) |
247/ 2200(336hp) |
247/2200 (336hp) |
247/ 2200 (336hp) |
213/2200 (290hp) |
247/2200 (336hp) |
247/ 2200 (336hp) |
276/ 2200 (375hp) |
|
| Max. speed(km/h) | 90 | 75 | 90 | 90 | 81 | 86 | 77 | |
