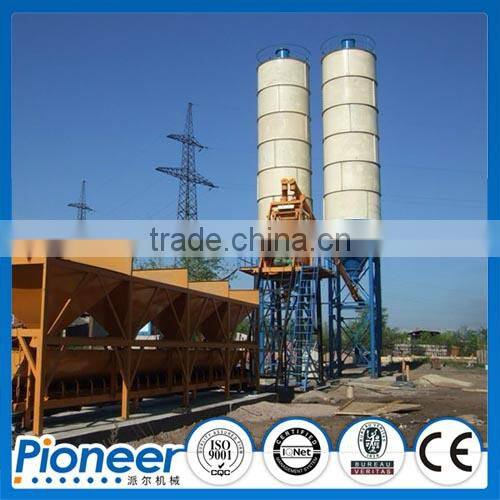

Popular Building Mixing Plant HZS75 Concrete Batching Plant

  HZS75 75m3H 1000L twin horizontal shaft mixer with hooper feeding stationary type concrete mixing machine

 Features:

1. Stability and Durability: adapt and apply the most advanced technologies around the world;

2. Reliability: 30 years of experiences in manufacturing concrete mixing plants;

3. Stationary modular structure, fast and easy installation

4. Sicoma mixer, excellent mixing performance with high efficiency and high productivity

5. Double computers with double controls, easy operatio

6. Excellent environmental protection, dust collection system and anti-noise design.

HZS75  concrete mixing plant
Products profile:
HZS75 concrete  mixing  plant ,with feature of small floor area coverage and easy installation and moving from site to
site. It is suitable for water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf
and so on.
Parameter of HZS75  concrete mixing plant:
1.MIXING SYSTEM
   Concrete Mixer:JS1500
   Discharge Capacity:1500L
   Charging Capacity:2400L
   Productivity:75 m3/h
   Mixing Motor Power:60kw
   Dimensions:5058*2250*2440mm
2.AGGREGATE SYSTEM
   Batching Machine:PLD2400
   Volume:4*12m3
   Capacity:120m3/h
   Power:11kw
   Weight:10500kg
   Dimensions:13000*2840*3900mm
3.WEIGHING SYSTEM
1>Aggregate Weighting:1 unit
     Weighing Capacity:4000kg
     Accuracy:±2%
2>Cement Weighint:1 unit
     Weighing Capacity:1000kg
     Accuracy:±1%
3>Water Weighing :1 unit
     Weighing Capacity:400kg
     Accuracy:±1%
4>Additive Weighing:1 unit
     Weighing Capacity:50kg
     Accuracy:±1%
4.CEMENT SYSTEM(OPTIONAL)
   Cement silo:2 units
   Capacity:60T/set
5.SCREW CONVEROY SYSTEM(OPTIONAL)
   Screw conveyor:2 units
   Diameter:Φ219
   Lenght:8m
6.CONTROL SYSTEM
1>PLC Control operation
2>With air-conditioned control room
3>Main electrical components:Schneider or Simense
