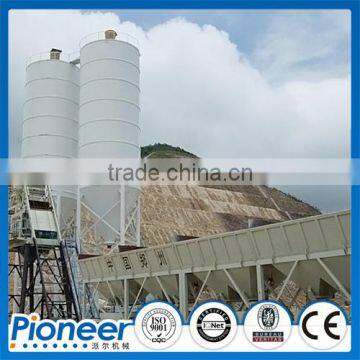

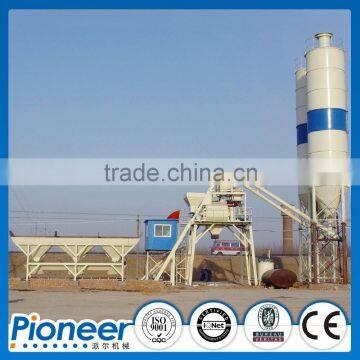

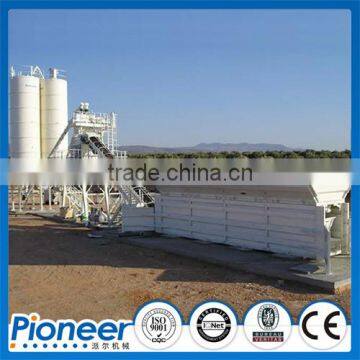

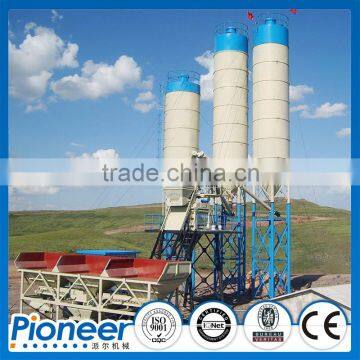

Help Center2016 Optional Type HZS150 Concrete Mixing Plant
Related Products
-
HZS25(,HZS35,HZS50, HZS75,HZS90,HZS120 ) Ready Mixed Concrete Plant for SaleUS$ 30,000 - 39,000MOQ: 1 Set -
High Quality HZS25(,HZS35,HZS50, HZS75,HZS90,HZS120 ) Ready Mixed Cement Batching PlantUS$ 30,000 - 39,000MOQ: 1 Set
-
HZS25(,HZS35,HZS50, HZS75,HZS90,HZS120 ) Ready Mixed Cement Batching PlantUS$ 30,000 - 39,000MOQ: 1 Set
-
High Quality HZS25(,HZS35,HZS50, HZS75,HZS90,HZS120 ) Ready Mixed Cement Plant for SaleUS$ 30,000 - 39,000MOQ: 1 Set
-
High Quality HZS25(,HZS35,HZS50, HZS75,HZS90,HZS120 ) Ready Mixed Concrete Batching PlantUS$ 30,000 - 39,000MOQ: 1 Set
HZS150 twin horizontal shaft mixer with hooper feeding stationary type concrete mixing machine
Model |
HZS25 |
HZS35 |
HZS50 |
HZS75 |
HZS100 |
HZS150 |
|
Theoretical Productivity (m3/h) |
25 |
35 |
50 |
75 |
100 |
150 |
Mixer |
JS500 |
JS750 |
JS1000 |
JS1500 |
JS2000 |
JS3000 |
|
Batching System |
PLD1200 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
|
Discharging Height(m) |
1.7-3.8 |
2.5-3.8 |
3.8 |
3.8 |
4 |
4 |
|
The Max. Diameter of the aggregates (mm) |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
60-80 |
|
Automatic Cycle Period(s) |
60 |
60 |
60 |
60 |
60 |
60 |
|
Weighing precision of Aggregate |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
|
Weighing precision of Cement |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Weighing precision of Water |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
|
Weighing precision of Additive |
±1% |
±1% |
±1% |
±1% |
±1% |
±1% |
Power(kw) |
50.25 |
64.4 |
105 |
139 |
186
|
260
|
Features:
1. Stability and Durability: adapt and apply the most advanced technologies around the world;
2. Reliability: 30 years of experiences in manufacturing concrete mixing plants;
3. Stationary modular structure, fast and easy installation
4. Sicoma mixer, excellent mixing performance with high efficiency and high productivity
5. Double computers with double controls, easy operatio
6. Excellent environmental protection, dust collection system and anti-noise design.
HZS75 concrete mixing plant
Products profile:
HZS75 concrete mixing plant ,with feature of small floor area coverage and easy installation and moving from site to
site. It is suitable for water conservancy , the electric power , the railroad, the road , the tunnel, the arch of bridge , the harbor-wharf
and so on.
Parameter of HZS75 concrete mixing plant:
1.MIXING SYSTEM
Concrete Mixer:JS1500
Discharge Capacity:1500L
Charging Capacity:2400L
Productivity:75 m3/h
Mixing Motor Power:60kw
Dimensions:5058*2250*2440mm
2.AGGREGATE SYSTEM
Batching Machine:PLD2400
Volume:4*12m3
Capacity:120m3/h
Power:11kw
Weight:10500kg
Dimensions:13000*2840*3900mm
3.WEIGHING SYSTEM
1>Aggregate Weighting:1 unit
Weighing Capacity:4000kg
Accuracy:±2%
2>Cement Weighint:1 unit
Weighing Capacity:1000kg
Accuracy:±1%
3>Water Weighing :1 unit
Weighing Capacity:400kg
Accuracy:±1%
4>Additive Weighing:1 unit
Weighing Capacity:50kg
Accuracy:±1%
4.CEMENT SYSTEM(OPTIONAL)
Cement silo:2 units
Capacity:60T/set
5.SCREW CONVEROY SYSTEM(OPTIONAL)
Screw conveyor:2 units
Diameter:Φ219
Lenght:8m
6.CONTROL SYSTEM
1>PLC Control operation
2>With air-conditioned control room
3>Main electrical components:Schneider or Simense
Company information
Zhengzhou Pioneer Machinery Co., Ltd ,as one manufacturer, we have over 25 years of experience in manufacturing, designing, testing and R&D. Our main products include concrete mixers, concrete batching plants, brick making machines, Concrete Mixer Trucks, etc.
we have over 20 years of experience in goods out sourcing, transportation, custom clearance and others.Our company has operated on the principles of "Honesty", "Reliability" and "Quality", We can meet different demands from clients and provide comprehensive services in a honest and professional manner.
We sincerely welcome you to visit our company, and we are looking forward to a prosperous development in our business relationship in the future.
