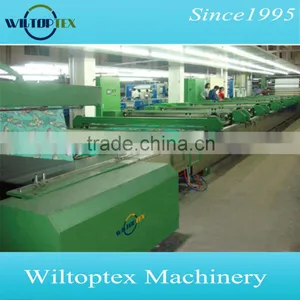

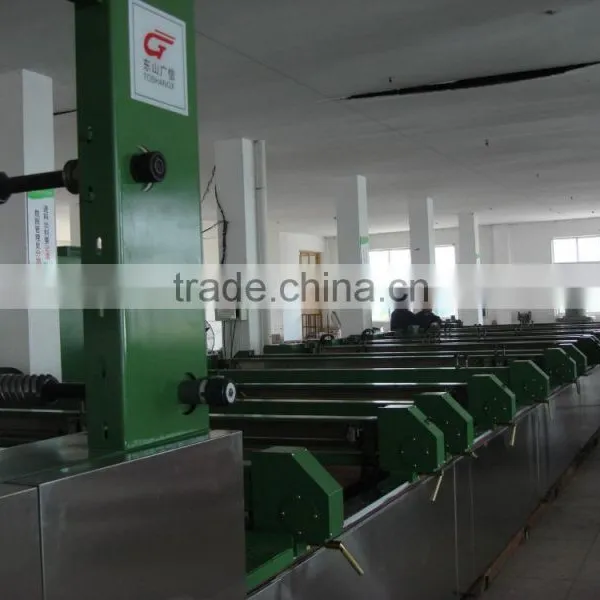

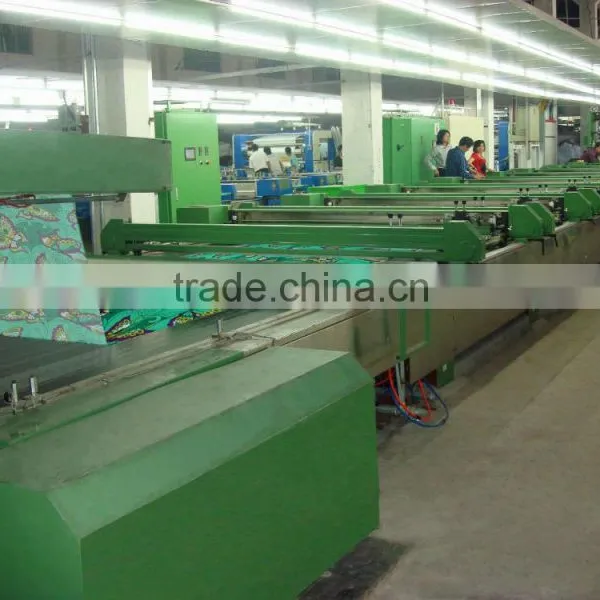

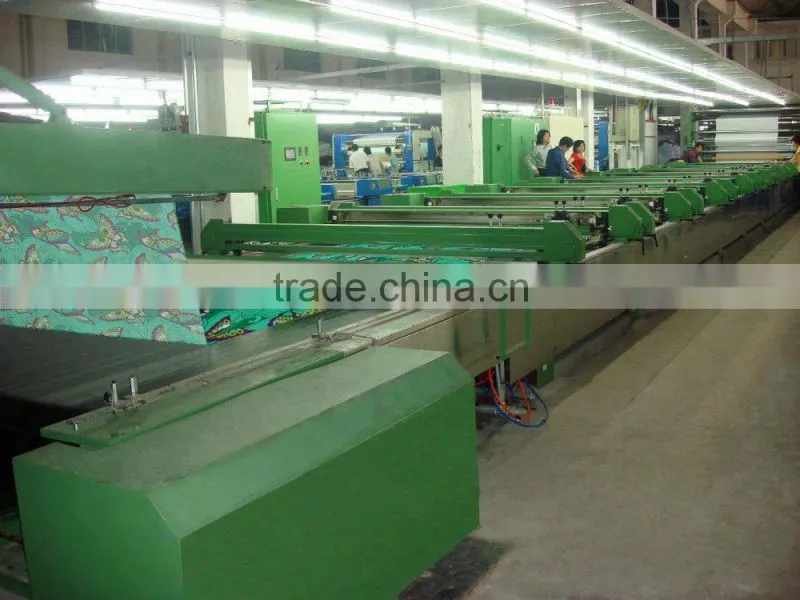

J07 Type Automatic Flat Screen Printing Machine
♥ High precision, high speed, low energy consumption perfect equipment.
♥ Change the complex printing operation to simple, Lower the production cost, let clients get rich profits
Main specifications :
Style no |
180 ,200 ,220,240,260,280,300,320 |
Max printing width (mm) |
1600 ,1800,2000,2200,2400,2600,2800,3000 |
Max fabric width (mm) |
1650 ,1850 ,2050,2250,2450 ,2650,2850 ,3050 |
Matching colour |
6,8 10,12,14,16,18 |
Max repeat length (R) |
400-3000mm |
Effictive table length (L) |
L=(2n-1)XR+3 |
Max speed of the printing belt |
108m/min |
Max speed of scraper |
200m/min |
Average printing speed |
20-30 |
Registration accuracy |
<0.1mm |
Working voltage |
3 phase 380V ,50hz |
Equipment vacuums |
50-90KVA |
Average power consumption |
30-50 KVA |
Water consumption |
0.2-0.3 MPA |
Compress water pressure |
1-2 m3/h |
Compress air pressure |
0.4-0.6 mpa |
Pringting System
1. Adopts servo motor drive and perfect PID linear control for least vibration, low noise and fest speed of over system operation.
2. According to technological requirements, travel, pressure, speed and frequency can be flexibly adjusted.
3. Pattern register device with scale for all-direction fine tuning during pattern registration.
4. Printing cell is high-speed moving part, and all coponents of this part use high-strength materials through special processing process to increase mechanical stablility and durability.
