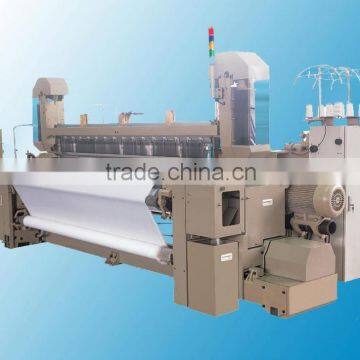

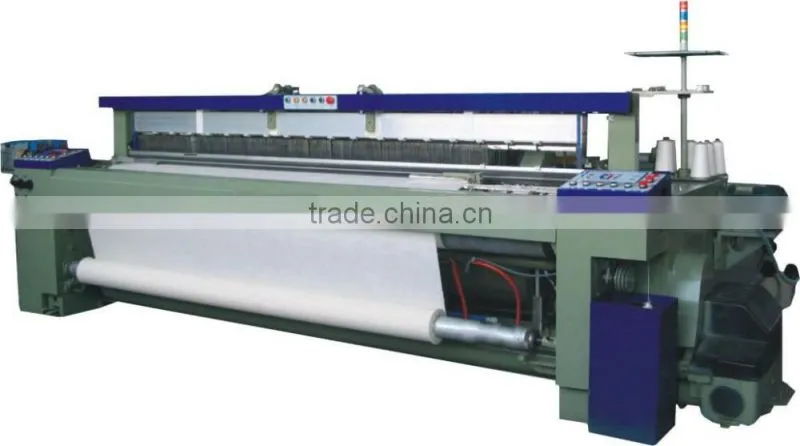

HYAL1788 Weaving Fabric 800rpm High Speed Air Jet Loom Machines

FOB Price

USD $15,000 - $22,000 / Set

2 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Air Jet Loom
Application	Fabric	Production Capacity	99%
Place of Origin	Zhejiang, China	Brand Name	wiltoptex
Model Number	HYAL-1788	Dimension(LWH)	4030*1920
Weight	3 Tons	Power(W)	2.7-3.7KW
Certification	ISO9001 CE	Warranty	1 Year
After-sales Service Provided	Overseas service center available

FEATURE

♥ New type of weft insertion: economizing air resource

♥ New type of beating: running as high speed and low oscillation

♥ It-intelligence board: easy to understand with color picture two-way communication

Reed width(cm)	190,210,230,280,340,360,390
Useful reeding width	Same as nominal width maximum reduction 60 cm
Speed(r/min)	500-900
Yarn range(d)	Short yarn: Ne100-Ne2.5
Yarn range(d)	Filament: 56dtex-1350dtex
Drive	PSS programmable to start, push-button operation with both hands
Motor Power	2.7KW, 3.0KW, 3.7KW
Weft selection	2-color mixing, 2 color at-will or 4 colour
Shedding	Negative(Positive) cam shedding; Shaft number upto 10
Let-off	Electronic let off with reverse function
Flange dia	800mm,1000mm

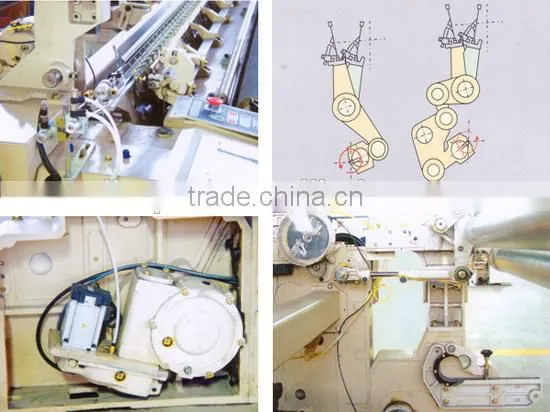

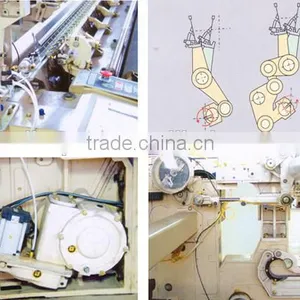

Beating	Crank type beating, multiple sley sword beating
	4 links(reed space up to 230cm)
	6 links(Reed 280cm and more)
	intermediate rocking supporter
Measuring/Storing	FDP Free Drum Pooling
Filling supply stand	Floor-mounted for 4 packages(2 colors),Floor-mounted for 8 packages(4 colors)
Selvedge	Planetary gear motion
Waste filling removal	Catch cord type (gear type)
Cutter	Mechanical cutter
Lubrication	Oil bath system for main drive parts, centralized lubrucation(manual grease)

Take up		Electronic take up
		Mechanical take up
	Max take up Dia	400cm
	Pick density	6.6-80.5 picks/cm(16.7-204.4 picks/inch)
	Length count	i-board display with fix meausre stop fuction
	Temple	Floor-monted
Auto-stop motion	Catch yarn	Reflective weft feeler(Dingle feeler)
	Stop cause indication	Message on i-board, 4 color lamp for indicating cause
	Others	Stop motion for selvage and catch cord yarn

we can manufacture according to customer's requirements
