Frp Antenna Radome

Name: Frp Antenna Radome
Brand: WANT
SKU: 126788229
Availability: InStock

Negotiable MOQ: 5000 Meters (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

WANT

Model Number:

Want -R

Contact Supplier Request Quote Chat Now

Nanjing Want Composites Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Nanjing/Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name WANT

Model Number Want -R

Application as customers'needs

Surface Treatment coated resin.

Technique pultrusion

Dimensions customized

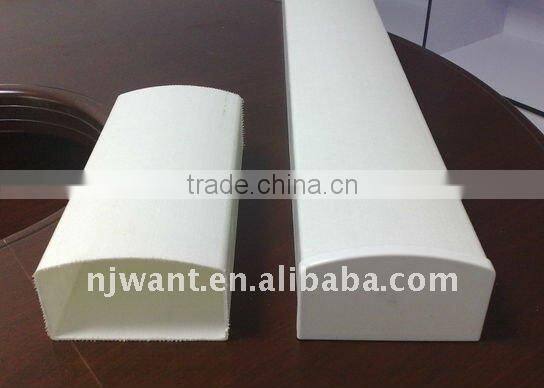

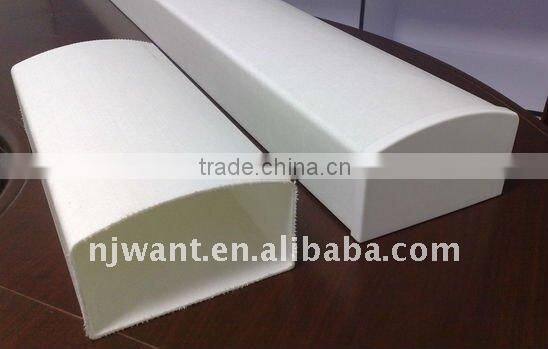

Fiberglass antenna radome

WANT FRP Radomes are made of WANT high quality pultruded profiles. The advantage of WANT pultruded profiles:

Corrosion Resistant

Light Weight,High Strength and Impact & Fatigue Resistant.

Non-Conductive & Non-Magnetic

Maintenance Free

Fire Retardant

Dimensional Stability

Easy Assembly

The Properties of WANT Profile Series

Property	Test Method	Units	Mean-Value LW/CW
Tensile Strength	ASTM D638/GB1447-83	Mpa	210/75
Tensile Modulus	ASTM D638/GB1447-83	Gpa	22/10
Flexural Strength	ASTM D790/GB1449-83	Mpa	302/76
Flexural Modulus	ASTM D790/GB1449-83	Gpa	18.6/7.2
Compressive Strength	ASTM D695/GB1448-83	Mpa	258/98
Compressive Modulus	ASTM D695/GB1448-83	Gpa	19.2/7.2
Interlaminar Shear(LW)	ASTM D2344/GBT3357-82	Mpa	24.5
Charpy Impact Strength	ISO 179/GB1451-83	KJ/m²	279
Barcol Hardness	ASTM D2583	-	50
Elongation to Break	ASTM D638/GB1447-83	%	0.9
Water Absorption(max.)	ASTM D570/GB1462	%	0.57
Density	ASTM D792	g/cm³	1.8
Coefficient of Thermal Expansion	ASTM D696/GB2572-82	10^-6/	5.1
Flammability Classification	UL94/GB8924-88	-	VO (32)
Tunnel Test	ASTM E-84	-	25 Max.
Flammability Extinguishing	ASTM D635	-	Self extinguishing
Arc Resistance(LW)	ASTM D495/ GB1411-78	S	120
Dielectric Constant(PF)	ASTM D150/ GB1409-79	60Hz	5
Dielectric Strength(PF)	ASTM D149/ GB1408-78	KV/mm	8
Dielectric Strength(LW)	ASTM D149/ GB1408-78	KV/mm	1.6
Surface Resistance	ASTM D257/GB1410-78	Ω	10¹⁵ 10¹²
Volume Resistance	ASTM D257/GB1410-78	Ω.cm	10¹⁵ 10¹²
Remarks: LW =lengthwise CW = crosswise PF =perpendicular to laminate face

Keeping an eye on the domestic and outside technology of the pultrusion,Want composites is dedicated to designing and manufacturing high performance profiles.Most of the products had been applied in the fields of power plant ,petrochemical sites,water/wasterwater treatment,cooling tower,papermaking ,and consumer recreationfield etc,they are proved to advantage to other materials.

we have passed iso 9001
