Help CenterAir Handling Unit Small Bellows Components
Related Products
-
2015 New Condition Stainless Steel Metal Flexible PipeUS$ 1 - 100MOQ: 100 Pieces -
High Quality Stainless Steel Bellows Flexible Metal Bellows and Bellows AssemblyUS$ 1 - 100MOQ: 100 Pieces
-
China Wholesale Concrete Metal Pipeline Bellows Expansion JointUS$ 1 - 15MOQ: 100 Pieces
-
China Wholesale Pipe Fittings Reinforced Bellows Expansion JointUS$ 1 - 15MOQ: 100 Pieces
-
Stainless Steel Metal Large Diameter Bellows Type Expansion JointsUS$ 1 - 15MOQ: 100 Pieces
Our company is specialized in the production of corrugated metal bellows, the core team has nearly 30 years of bellow design and production experience, its design and craftsmanship take leading position in industry. Now it passed the certification of ISO9001:2008. we have all kinds of specification mold, material available; and we have a strong production capacity, delivery is prompt the company possess the stronger nonstandard design and mechanical capacity, we can produce nonstandard bellows weldment as your requirement.
Detailed product Description
The specific bellow parameters are as followings :( All data is record by electronic digital display caliper)
¤Normally (The scope of product specification )
Material: Stainless steel 304, 316L, 321,, etc
Specifications: DN10-DN300
Single wall thickness: 0.09-1.0(Can according to customer special requirement multilayer wall thickness)
Compression ratio: 10%-45 %( pressure: 0.25Mpa-25Mpa)
Temp:-196-450°C

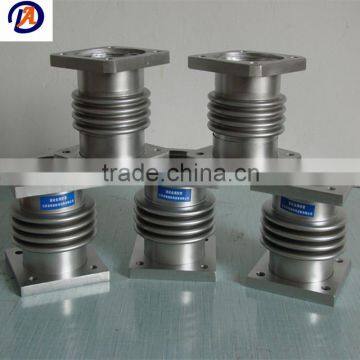

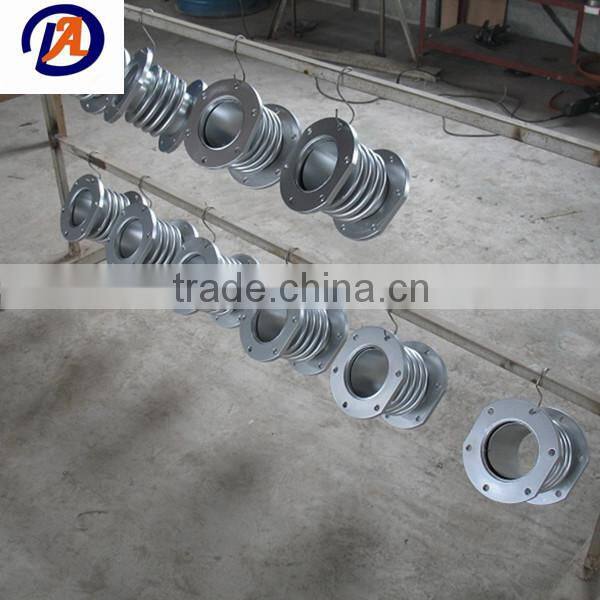

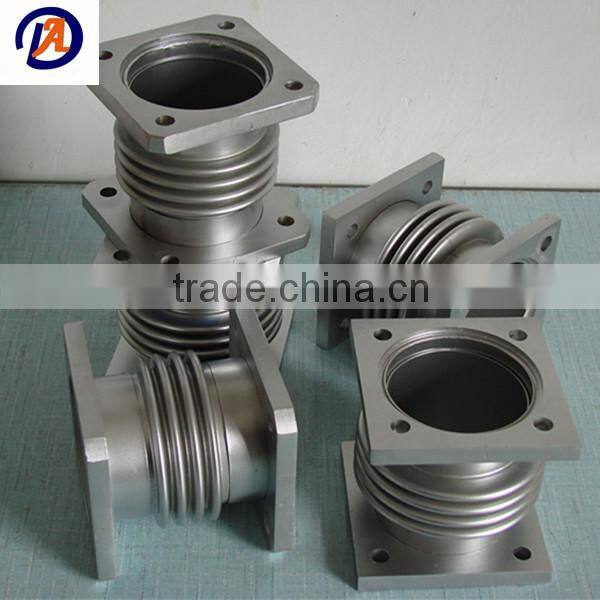

Application display of bellows compensator (Detailed Product Description)

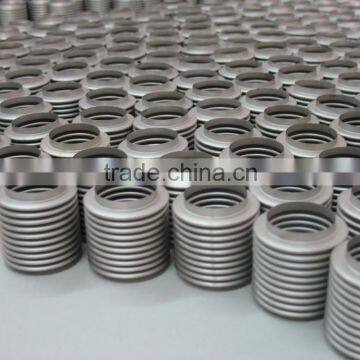

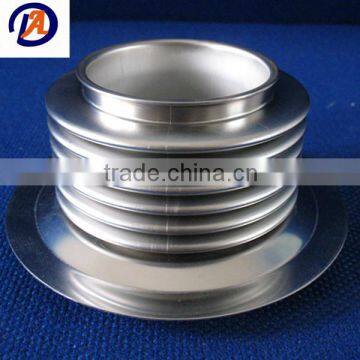

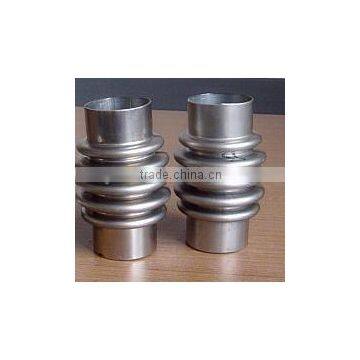

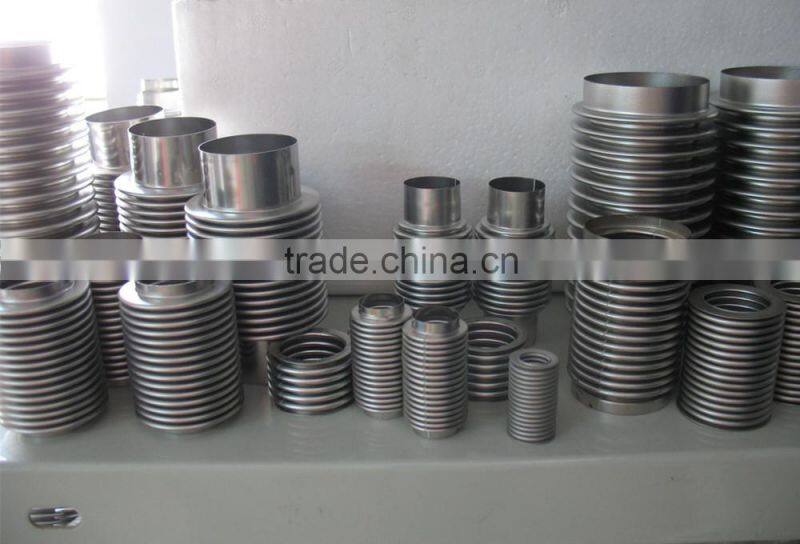

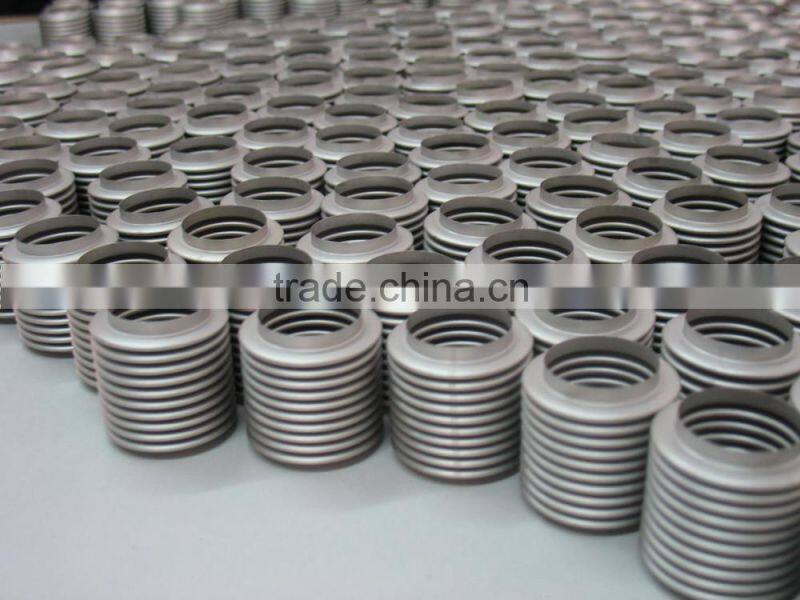

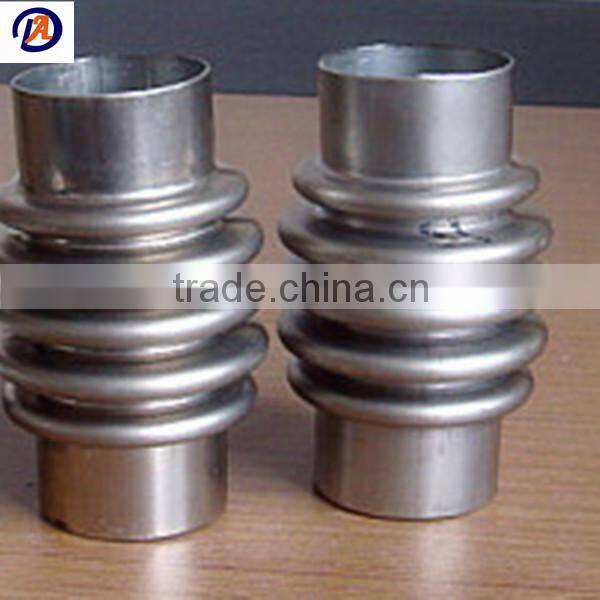

Detailed Product Picture:
Specifications |
I.D |
O.D |
WT |
CR |
CD |
Available Material |
DN10 |
10 |
15 |
0.12 |
45 |
1.8 |
304 |
DN12 |
12 |
20 |
0.12 |
45 |
2 |
304 |
DN14 |
14 |
22 |
0.12 |
45 |
2.2 |
304 and 316L |
DN15 |
15 |
23 |
0.15 |
45 |
2.2 |
316L |
DN16 |
16 |
25 |
0.15 |
45 |
2.3 |
304 |
DN18 |
18 |
28 |
0.12 |
45 |
2.6 |
304 |
0.15 |
316L |
|||||
DN22 |
22 |
32 |
0.15 |
45 |
3 |
304 and 316L |
DN25 |
25 |
38 |
0.15 |
45 |
3 |
304 |
0.13 |
316L |
|||||
DN28 |
28 |
40 |
0.12 |
45 |
3.2 |
304 |
0.15 |
316L |
|||||
DN32 |
32 |
45 |
0.15 |
45 |
3.4 |
304 and 316L |
DN35 |
35 |
50 |
0.15 |
45 |
3.5 |
304 and 316L |
DN38 |
38 |
55 |
0.15 |
45 |
3.8 |
304 and 316L |
DN40 |
40 |
60 |
0.2 |
45 |
3.8 |
304 |
DN42 |
42 |
60 |
0.15 |
45 |
4.4 |
304 |
DN45 |
45 |
65 |
0.15 |
45 |
4.5 |
304 |
DN48 |
48 |
66 |
0.2 |
45 |
4.5 |
316L |
DN50 |
50 |
70 |
0.2 |
45 |
5 |
304 and 316L |
DN60 |
60 |
80 |
0.18 |
45 |
5.5 |
304 |
DN65 |
65 |
89 |
0.3 |
45 |
5.7 |
304 |
0.2 |
316L |
|||||
DN75 |
75 |
100 |
0.3 |
30 |
6 |
304 |
DN80 |
80 |
105 |
0.3 |
30 |
7 |
304 and 316L |
DN90 |
90 |
115 |
0.3 |
30 |
6.5 |
304 |
