Help CenterChemical Mixer
Related Products
Specifications
CE CertifiedTooth dispersing disc,Helix mixer,Anchor mixer
Platform type
MIixing and dispersing viscous materials
Easy wash
Chemical mixer, dispersing machine, dissolver, agitator

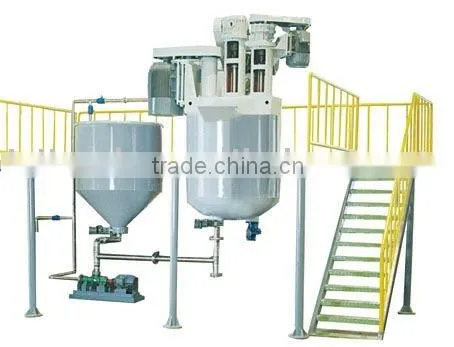

Materials shall be adequately agitated, mixed and dispersed in a short time. Qualified output shall be discharged by the pump through the pneumatic valve on the bottom of the chamber and directly transported to packing barrels. A scraper is fitted on the agitator to prevent thick materials adhering to chamber wall. When producing water-based materials, it is easy to wash and produce different color products. It consists of main machine and a steel work table, which can be installed at a time and operated easily.
Model |
CJ1M |
CJ1.5M |
CJ2M |
CJ2.5 |
CJ3M |
CJ4M |
CJ5M |
Chamber volume(m3) |
1 |
1.5 |
2 |
2.5 |
3 |
4 |
5 |
Dispersing motor power(KW) |
15 |
22 |
37 |
45 |
55 |
75 |
90 |
Dispersing shaft speed(r.p.m) |
1500 |
1500 |
1500 |
1200 |
1200 |
1000 |
1000 |
Anchor type agitating motor power(KW) |
5.5 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
Anchor type agitating shaft speed(r.p.m) |
20 |
20 |
20 |
15 |
15 |
15 |
15 |
Helix type agitating motor power(KW) |
7.5 |
7.5 |
11 |
15 |
18.5 |
22 |
22 |
Helix type agitating shaft speed(r.p.m) |
130 |
130 |
130 |
130 |
130 |
130 |
130 |
