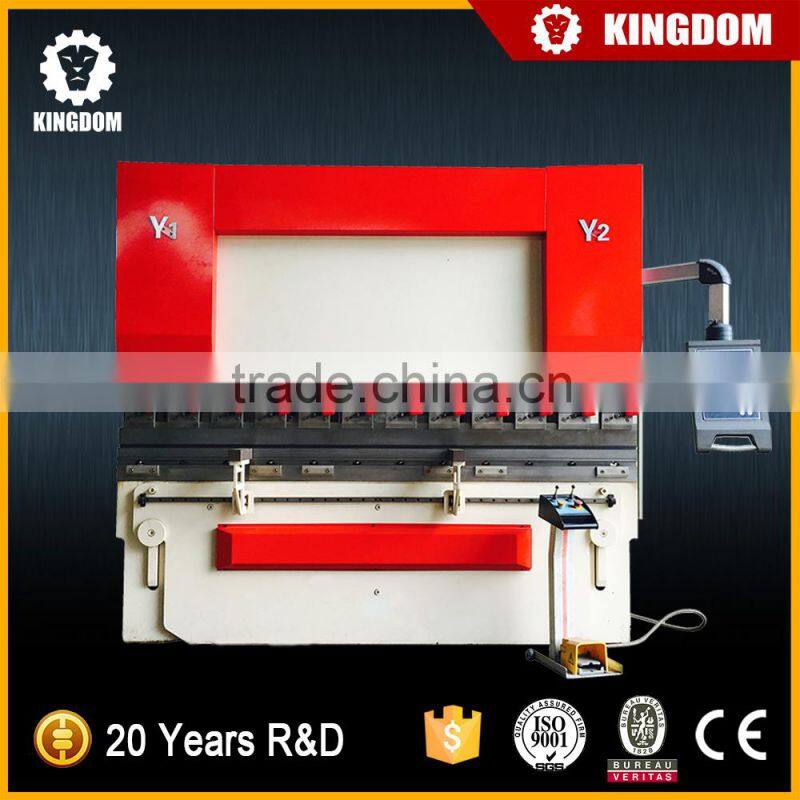

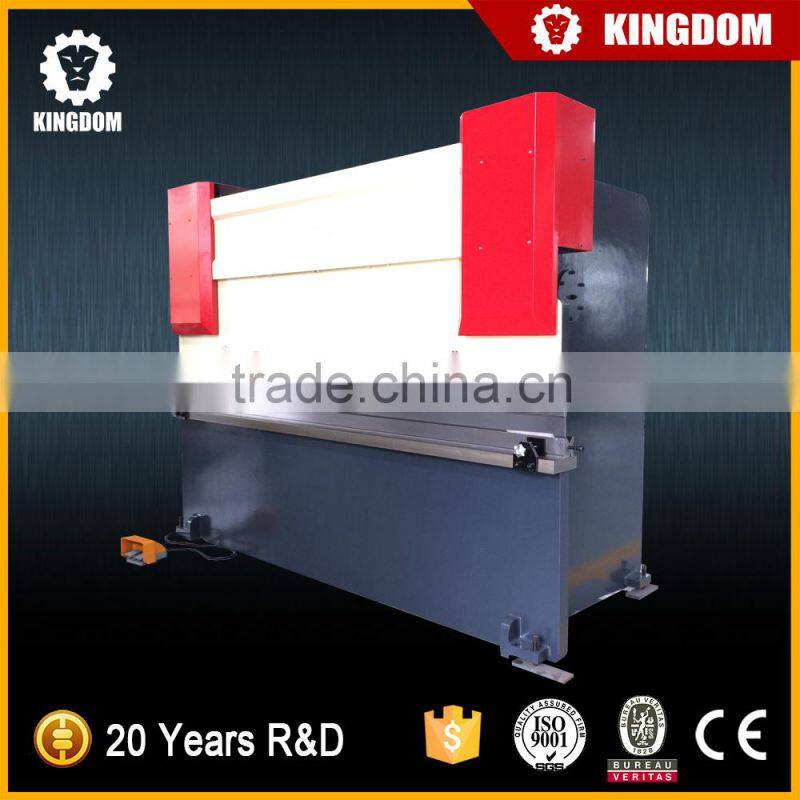

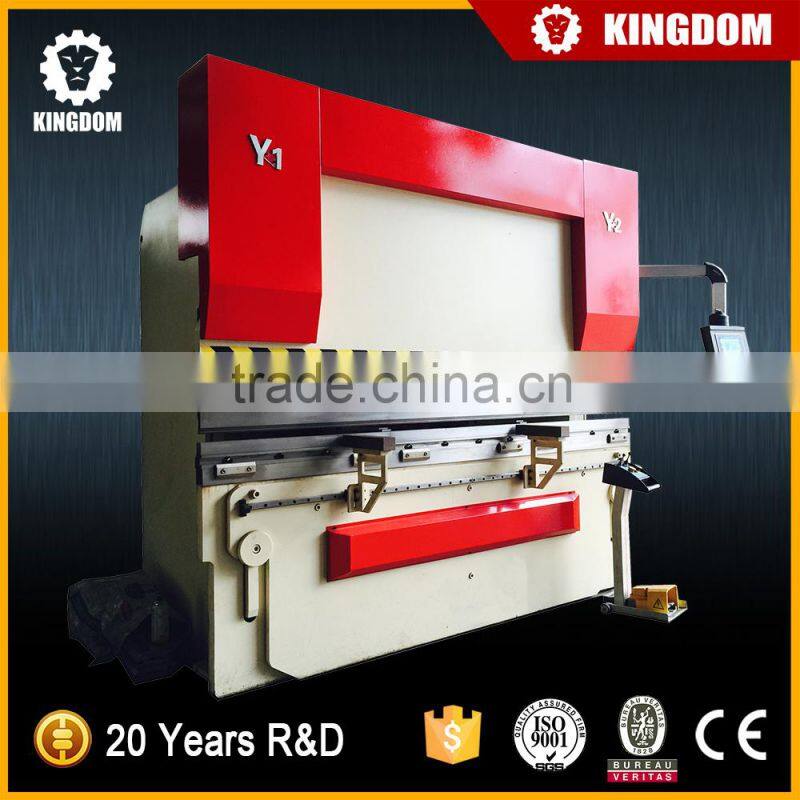

Kingdom hydraulic sheet bending machine
Hydraulic press brake model
| Model |
Pressure (kN) |
Length of Working Table |
Distance between Housings |
Throat Depth | Max. Stroke Length | Max. open height | Electric Power |
Machine Dimension (L x W x H) |
| 40T/2200 | 400 | 2200 | 1775 | 250 | 100 | 320 | 5.5 | 2300 x 1500 x 2000 |
| 40T/2500 | 400 | 2500 | 1975 | 250 | 100 | 320 | 5.5 | 2600 x 1500 x 2000 |
| 63T/2500 | 630 | 2500 | 2095 | 250 | 120 | 360 | 5.5 | 2600 x 1600 x 2300 |
| 63T/3200 | 630 | 3200 | 2570 | 250 | 120 | 360 | 5.5 | 3300 x 1600 x 2300 |
| 80T/3200 | 800 | 3200 | 2565 | 320 | 120 | 360 | 7.5 | 3300 x 1700 x 2300 |
| 80T/4000 | 800 | 4000 | 3165 | 320 | 120 | 360 | 7.5 | 4100 x 1700 x 2300 |
| 100T/3200 | 1000 | 3200 | 2560 | 320 | 120 | 360 | 7.5 | 3300 x 1800 x 2400 |
| 100T/4000 | 1000 | 4000 | 3160 | 320 | 120 | 360 | 7.5 | 4100 x 1800 x 2400 |
| 125T/3200 | 1250 | 3200 | 2550 | 320 | 120 | 360 | 7.5 | 3250 x 1920 x 2450 |
| 125T/4000 | 1250 | 4000 | 3450 | 320 | 120 | 360 | 7.5 | 4000 x 1920 x 2500 |
| 160T/3200 | 1600 | 3200 | 2540 | 320 | 180 | 440 | 11 | 3300 x 1600 x 2600 |
| 160T/4000 | 1600 | 4000 | 3140 | 320 | 180 | 440 | 11 | 4100 x 2000 x 2600 |
| 160T/6000 | 1600 | 6000 | 4740 | 320 | 180 | 440 | 11 | 6100 x 2000 x 2600 |
| 200T/3200 | 2000 | 3200 | 2540 | 320 | 250 | 530 | 11 | 3300 x 2100 x 2800 |
| 200T/4000 | 2000 | 4000 | 3140 | 320 | 250 | 530 | 15 | 4100 x 2100 x 2900 |
| 200T/5000 | 2000 | 5000 | 3940 | 320 | 250 | 530 | 15 | 5100 x 2100 x 3000 |
| 250T/4000 | 2500 | 4000 | 3120 | 400 | 250 | 560 | 18.5 | 4100 x 2200 x 3500 |
| 250T/5000 | 2500 | 5000 | 3920 | 400 | 250 | 560 | 18.5 | 5100 x 2200 x 3500 |
| 250T/6000 | 2500 | 6000 | 4720 | 400 | 250 | 560 | 18.5 | 6100 x 2200 x 3500 |
| 300T/5000 | 3000 | 5000 | 3910 | 400 | 250 | 560 | 22 | 5100 x 2600 x 4000 |
| 300T/6000 | 3000 | 6000 | 4710 | 400 | 250 | 560 | 22 | 6100 x 2600 x 4000 |
| 300T/7000 | 3000 | 7000 | 5620 | 400 | 250 | 560 | 22 | 7100 x 2600 x 4400 |
| 320T/7000 | 3200 | 7000 | 5620 | 400 | 250 | 560 | 22 | 7100 x 2600 x 4400 |
| 350T/6000 | 3500 | 6000 | 5100 | 400 | 250 | 560 | 30 | 6100 x 2600 x 4200 |
| 350T/7000 | 3500 | 7000 | 5620 | 400 | 250 | 560 | 30 | 7100 x 2600 x 4500 |
| 400T/4000 | 4000 | 4000 | 3100 | 400 | 300 | 620 | 30 | 4100 x 2700 x 3800 |
| 400T/6000 | 4000 | 6000 | 4280 | 400 | 320 | 620 | 30 | 6100 x 2800 x 4200 |
| 500T/5000 | 5000 | 5000 | 4100 | 400 | 320 | 630 | 37 | 5100 x 3000 x 4400 |
| 500T/6000 | 5000 | 6000 | 4820 | 400 | 320 | 630 | 37 | 6100 x 3000 x 4700 |
| 500T/7000 | 5000 | 7000 | 5620 | 400 | 320 | 630 | 37 | 7100 x 3000 x 4900 |
| 600T/6000 | 6000 | 6000 | 4820 | 400 | 320 | 630 | 45 | 6100 x 2965 x 4700 |
| 600T/7000 | 6000 | 7000 | 5620 | 400 | 320 | 630 | 45 | 7100 x 2965 x 4900 |
Gross Weight and Packing Dimension depend on customers' needs.
Design and specifications subject to change without notice.
I. Introduction
KINGDOM’s engineers can design the exclusive machine according to the request from worldwide customers.
Our press brakes have the advantages of high quality, durability and high precision. The main frames of machine are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.
Adjustable synchronized torsion bar with positive stop system which is controlled by the Digital Control unit, the bending beam parallelism tolerance will be consistent and accurate to 0.01mm.
II. Features
1.The whole structure:
• Steel plate welded structure, hydraulic transmission, accumulator return, holistic processed, vibrating to eliminate stress, high strength and good rigidity.
• Mechanical torque system makes sure the synchronization of cylinders.
• The stroke of slider and back gauge is adjusted automatically by double servo motors or transducer, and showed on CNC Mechanical torque or NC control panel.
• Slanting wedges can be chosen to install on the top dies which can be adjusted by hands or automatically. Hydraulic compensation system is installed under the worktable.
2. Hydraulic system:
• Hydraulic control system by BOSCH-REXROTH Germany or FIRST America.
• Oil seals by Japanese, NOK.
• Overload & overflow protection to ensure there is no leakage and protect hydraulic system, and the oil level can be read directly.
3. Servo motorized back gauge:
• CNC Back gauge system with X axis by AC servo motor driven ball screw shafts and on linear bearings with an accuracy of 0.01mm.
• Back gauge has well enough mechanical strength and rigidity with tank-type gauge structure.
• High-precision ball screw and linear guide-way. Particular finger-stop design, enlarge the range of back gauge.
4.Electrical parts and protection device:
• Schneider or Siemens Low-voltage apparatus. In accordance with international standards, reliable safety, long life, good anti-interference ability, a radiation unit is fitted in electrical cabinet.
• Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch, easy to operate.
• Light screen protection or Laser protection are optional.
III. Standard Accessories
• Swivel pendant control unit operation
• Sliding front sheet support arms.
• Emergency stop buttons conveniently located on control panel and foot control.
• Mobile dual operation foot control.
• Segmented offset top punch.
• Solid one piece four way multi vee (''v") die block.
• Quick action top punch tool holder system with wedge type adjustment.
• Powered operated lead screw back gauge
• Oil tank level indicator.
• Metal constructed safety guarding surrounding machine with clear side viewing panels.
• Integrated hydraulic system allowing rapid approach switching automatically to slow bend.
Optional:
• NC control system Estun E10
• NC control system Estun E20
• CNC control system Delem DA-41
• CNC control system Delem DA-51
• CNC control system Delem DA-56
• CNC control system Delem DA-65W
IV. Photos
Payment Terms:
T/T, L/C at sight are acceptable by us.
Guarantee period:
Our product quality guarantee period is 13 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
