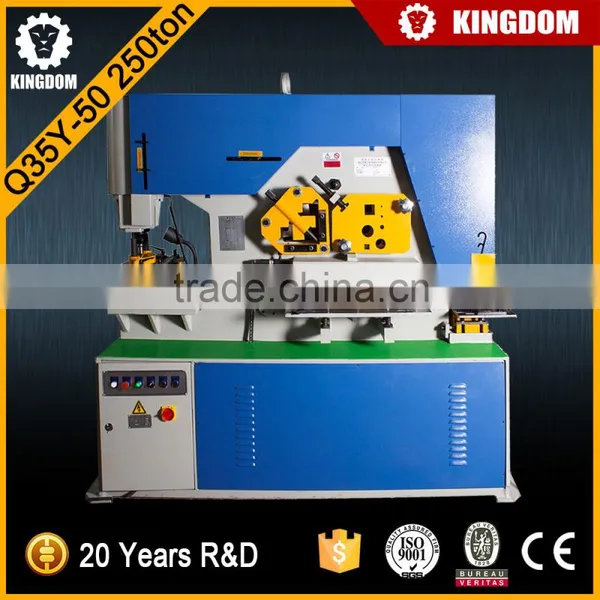

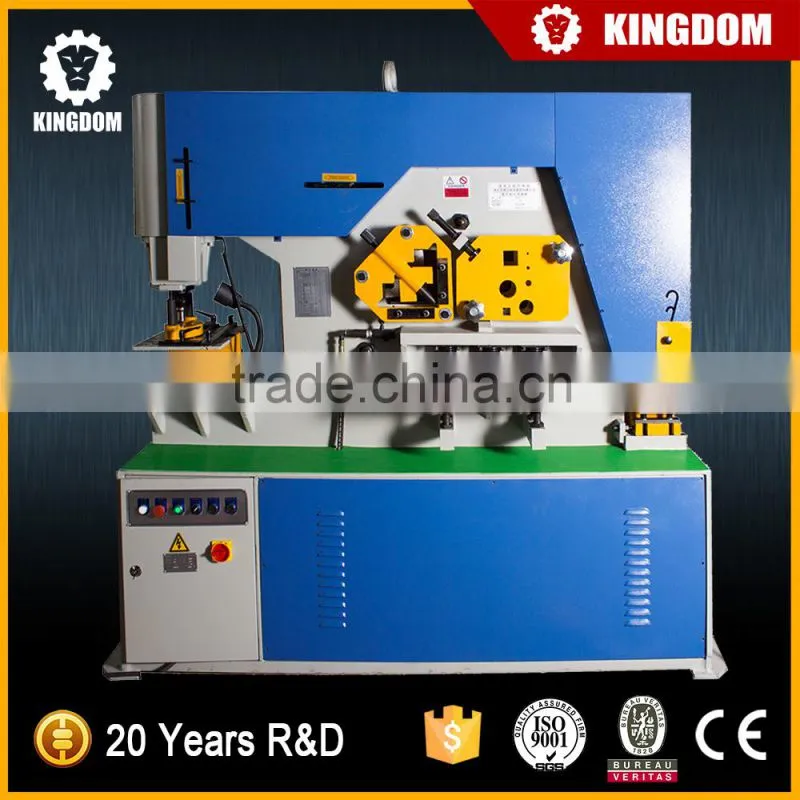

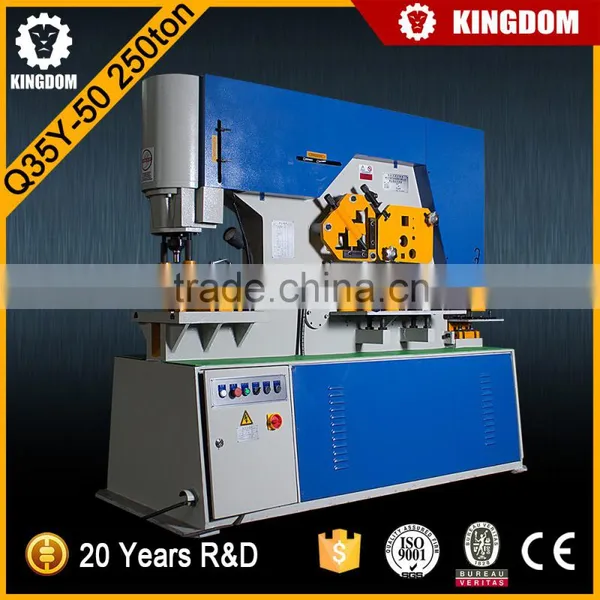

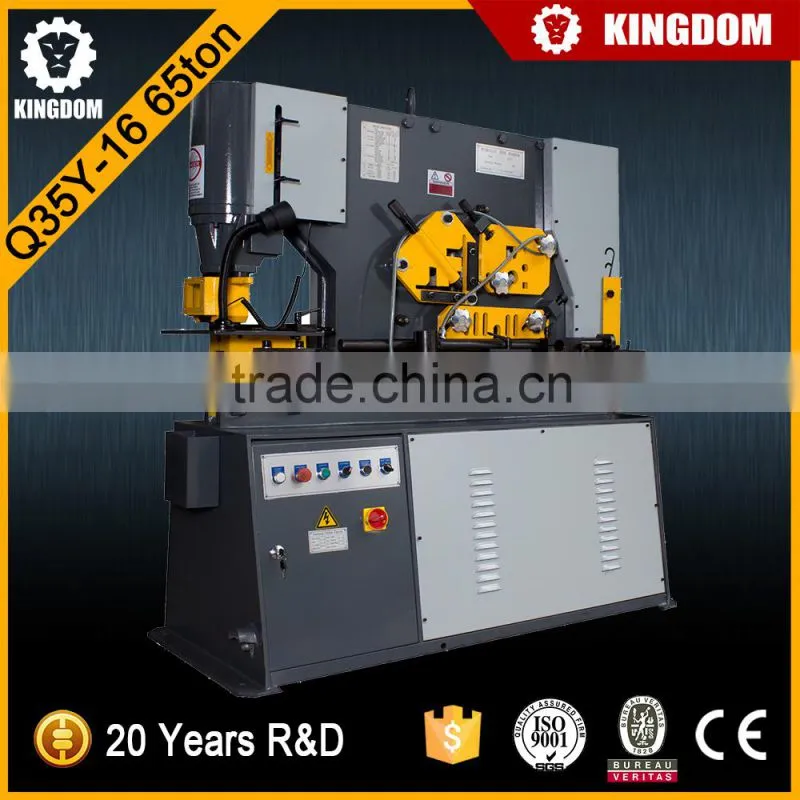

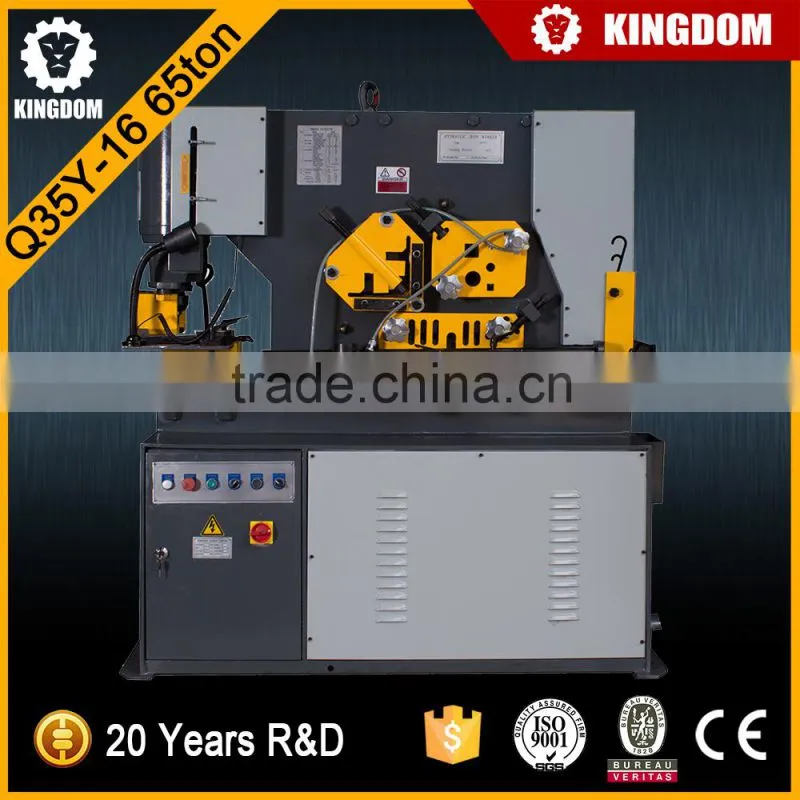

Kingdom Q35Y-50 250 ton China series hydraulic ironworker
Specifications
Hydraulic Ironworker
1. CE, ISO, SASO, CQC, BV
2. Temperature cooling system
3. Automatic holding tight system
| Model |
Q35Y-16 Q35Y-16D |
Q35Y-20 Q35Y-20D |
Q35Y-25 Q35Y-25D |
Q35Y-30 Q35Y-30D |
Q35Y-40 Q35Y-40D |
Q35Y-50 Q35Y-50D |
|
| Process Capacity (T) | 65 | 90 | 120 | 160 | 200 | 250 | |
| Material Tensile Strength (Mpa) | 450 | ||||||
| Punching |
Max. Capacity Dia(Punch) x Thickness(mm) |
ø25 x 16 ø50 x 8 |
ø30 x 20 ø50 x 12 |
ø35 x 25 ø50 x 18 |
ø38 x 30 ø50 x 24 |
ø40 x 35 ø50 x 25 |
ø40 x 40 ø50 x 32 |
| Max. Stroke Length (mm) | 80 | 80 | 80 | 80 | 80 | 80 | |
| Throat Depth (mm) | 300 | 355 | 400 | 600 | 600 | 600 | |
| Throat Depth D (mm) | 500 | 500 | 500 | 750 | 750 | 750 | |
| Cycles /min. (Max. Stroke Length) | 12 | 12 | 10 | 10 | 10 | 10 | |
| Flat Shearing |
Max shearing size (width * thickness) (mm) |
250 x 16 400 x 8 |
330 x 20 480 x 10 |
330 x 25 600 x 16 |
330 x 30 600 x 20 |
400 x 35 700 x 25 |
400 x 40 750 x 35 |
| Angle Shearing | Shearing (mm) | 50 x 5 | 50 x 5 | 60 x 6 | 60 x 6 | 100 x 10 | 120 x 10 |
| Shearing (mm) | 125 x 12 | 140 x 12 | 160 x 14 | 180 x 16 | 200 x 18 | 200 x 20 | |
| Bar Shearing | Round Bar/ Square Bar (mm) | 40/40 | 50/50 | 60/50 | 65/55 | 70/60 | 80/65 |
| Channel (mm) | 12.6# | 16# | 20# | 28# | 28# | 32# | |
| Motor Power (KW) | 4 | 5.5 | 7.5 | 11 | 15 | 18 | |
| N.W (KG) | 1600 | 2200 | 3800 | 6300 | 8800 | 12800 | |
| D | 1900 | 2500 | 4200 | 6500 | 9300 | 13400 | |
|
Overall Dimension (mm) |
1650x800x 1800 |
1830x800x 1900 |
2355x960x 2090 |
2355x960x 2090 |
2900x1300x 2650 |
3000x1440x 2450 |
|
| D |
1800x800x 1800 |
1930x800x 1900 |
2355x960x 2090 |
2355x960x 2090 |
3000x1300x 2650 |
3100x1440x 2450 |
|
Gross Weight and Packing Dimension depend on customers' needs.
Design and specifications subject to change without notice.
I.Hydraulic Ironworker
Brief Introduction:
KINGDOM’s Q35Y/ Q35YS series industrial-grade hydraulic ironworker featuring multiple functions, including: round hole, square hole, oblong hole punching; steel plate, flat bar, angle steel, C-channel, H-beam punching; steel plate bending; angle steel shearing, notching and bending; flat, round, square bar, C-channel, I-beam, T-bar shearing/cutting; angle bending and pipe notching.
The machine comes standard with: quick-change coupling nut & sleeve, squaring arm with scale, electronic back gauge, gauging table with stops, punching base table, safety guards and more. It’s the first choice for metal processing of modern manufacturing industries (such as the metallurgy, bridge, communication, electric power, military and other industries).
Our machine is designed via the latest technology and has the virtues of easy operation, low consumption and low maintenance cost. We also can provide customized solutions to better cater for customers’ needs.
Q35YS series is a quite advanced version compared with standard Q35Y series. Q35YS series have larger power motors and special pumps, so punching position and shearing position can work synchronously.

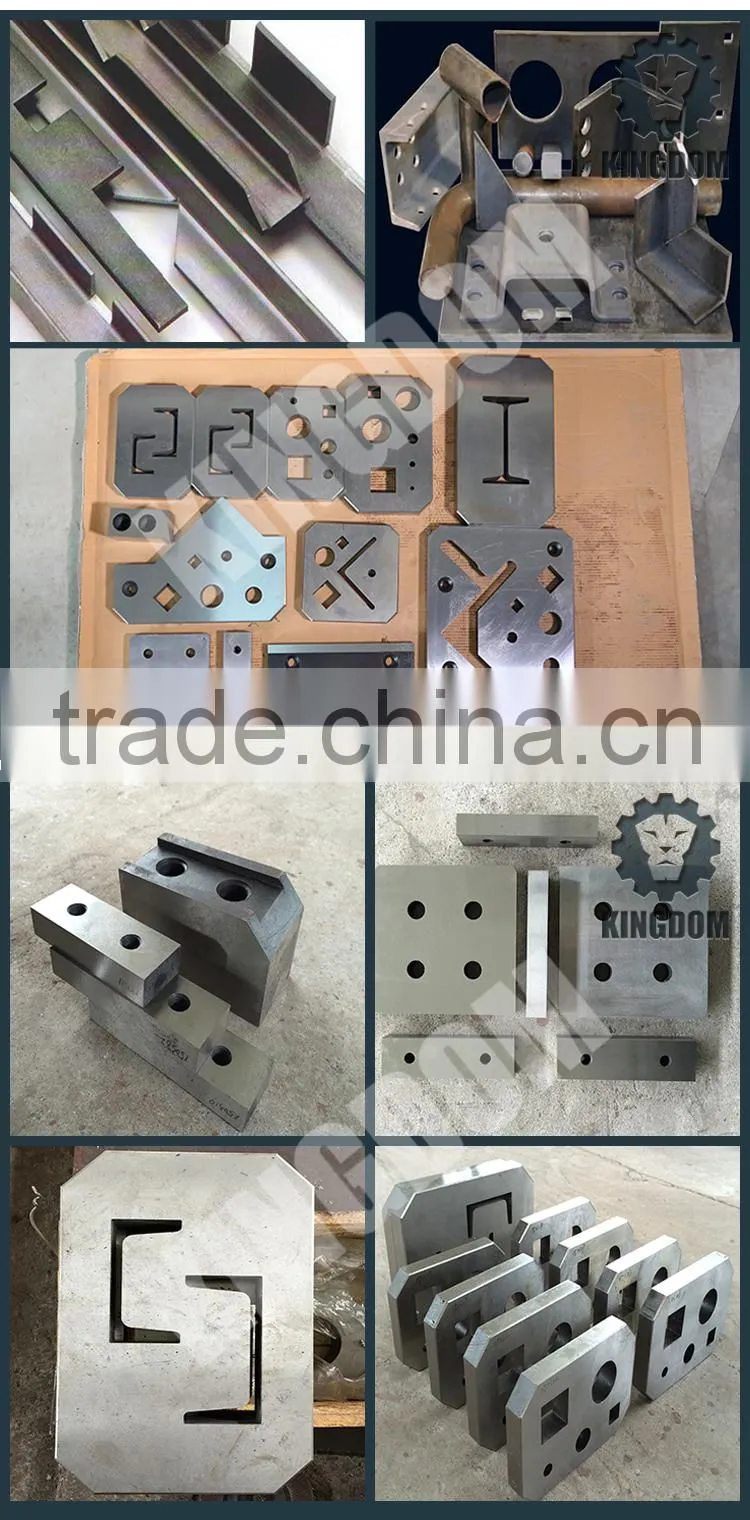

Optional tooling:
Automatic Holding System: The automatic holding system can be chosen to set up in angle steel shearing and plate shearing work position. The holders will fix the position of work piece, in this way, the accuracy is better and more safety for workers meanwhile save time and improve working efficiency.
Temperature cooling system: When the machine is working, you can read the temperature of oil through the monitoring screen. If the oil temperature goes higher than 55 degree which is the default configuration, the inside cooling system will run automatically to decrease oil temperature in order to protect hydraulic system.
II. Main standard properties components of Ironworker
1. All the electrical parts are IMPORT with CE certificate.
2. Professionally engineered design frame structures.
3. Steel welds with high precision strength and rigidity to eliminate vibrations.
4. Ironworker steel frame Q235 = American standard steel A306 GR55.
5. Five sets of punch and blades were installed on the machine.
6. Timer relay by Japanese OMRON.
7. All wiring terminal block by WEIDMULLER.
8. Main Electrical component by France Schneider.
9. Oil seals by Japanese, NOK.
10. O-Ring and Valve by Taiwan for piston pump more durable.
11. Hydraulic System by Japanese Yuken.
12. Motor by Chinese Jiangsu WEITELI
13. Hydraulic fuel tanks and ironworker frame built by KINGDOM.
14. Dual independent hydraulic cylinder
15. Dual Footswitch controlled work separately
16. Easy Adjustable stroke control with ruler
17. Indicator on both hydraulic cylinders
18. Electric back gauge auto stop
19. Moveable working light that can be placed at any desired position
20. Hydraulic system with overload protection system
21. Emergency safety stop switch
22. Large punching table with ruler guide
23. Larger notching table with Ruler guide
24. Large flat shearing table with Ruler guide
25. Most important easy maintenance

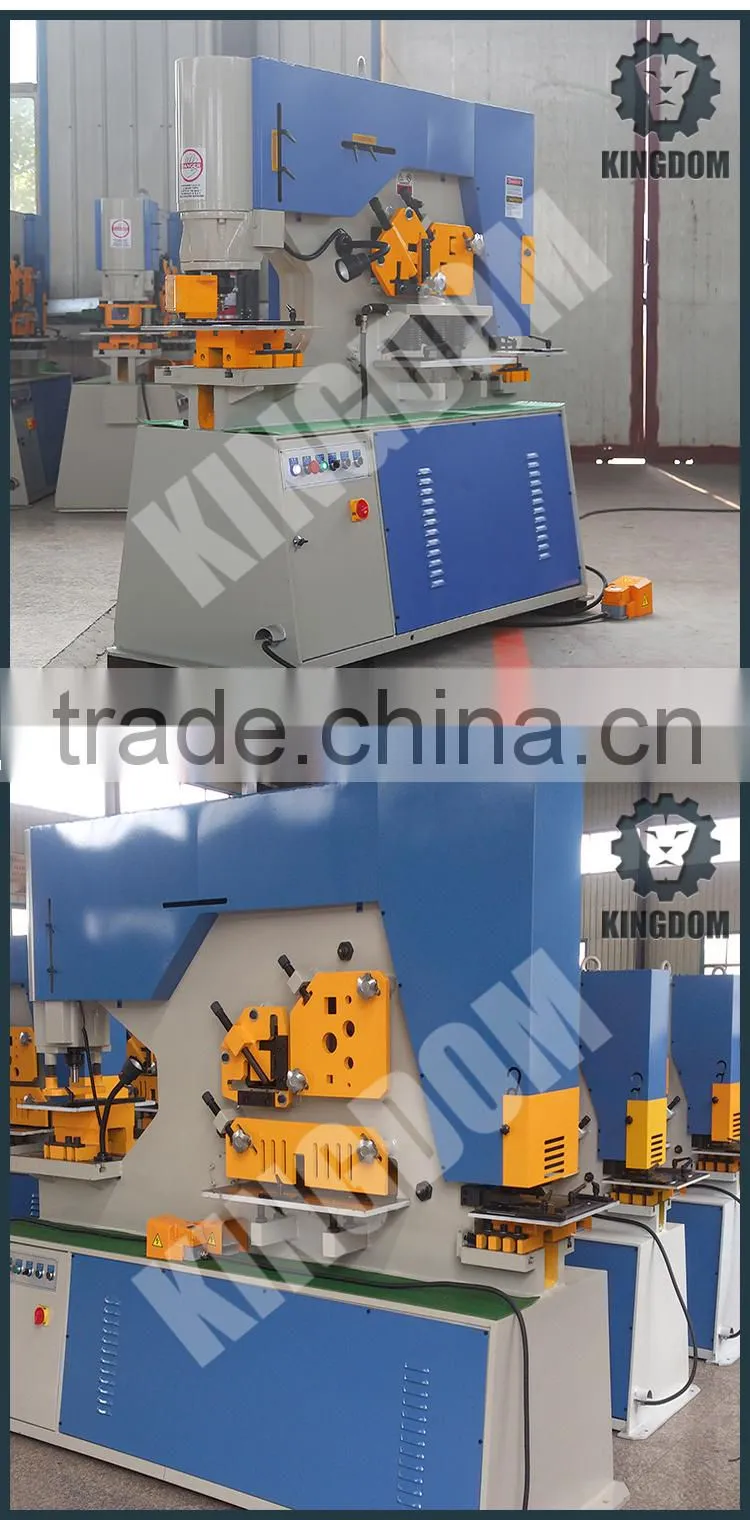

III.Photos
Shanghai Kingdom International Trade Company (SKITC), by taking the advantages of adjacent to Shanghai International Financial Center and Shanghai International Shipping Center, aims at providing high-efficiency metal machining solutions through our local factories in China. Products from SKITC include punching and shearing machines, punching machines, bending machines, cranes et al., which have strong customer base and excellent evaluation from customers in Asia, Africa and Latin-America. SKITC has developed long term cooperation with a number of universities and research institutes in China. SKITC has world class teams for R&D and services. Most R&D team members have Ph.D. degree or M.S. degree in top universities in China. Team members are proficient in mechanical design, manufacturing and energy saving. SKITC can provide customized solutions, including product design, function optimization and cost reduction, according to customers’ needs. The purpose of our work is to improve customers’ production efficiency. Our excellent design capabilities enable our products leading in industry. Our elite teams can provide customers with professional, customized, all-day and comprehensive services. By believing the philosophy of “Dedicated to increasing your efficiency” and having the elite teams in R&D and service, we would like to cooperate with elites from all over the world, provide world class facilities for our customers and promote the development of foreign trade.
Payment Terms:
T/T, L/C at sight are acceptable by us.
Guarantee period:
Our product quality guarantee period is 13 months from B/L date. During guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by customers’ incorrect operations, we will provide customers spare parts at cost price. We also can offer flexible extended warranties according to the actual situation.
After-sales services:
Our engineer can go to your factory for installation and showing operation details on condition of you provide the round-trip air tickets, visa formalities, food and accommodation. In turn, your engineers can come to our factory for learning the installation, operation and maintenance for free.
Why Choose Us:
1. We will run the machine for a few days, and use your materials to do the test. Only guarantee the machine shows best performance, and then we will ship out.
2. Our elite teams can provide you professional, customized, and all-round services around the clock. If you need any help, contact us by WHATSAPP, Skype, Email or Telephone.
How can we provide you efficient services (metal processing solution):
There are Three Steps as following:
1. Gather your requirements based on your real working situation.
2. Analyze your information and provide our feedback.
3. Offer options based on your specific needs. For instance, reg. standard products, we can offer professional recommendations; reg. non-standard products, we can offer professional designing.
