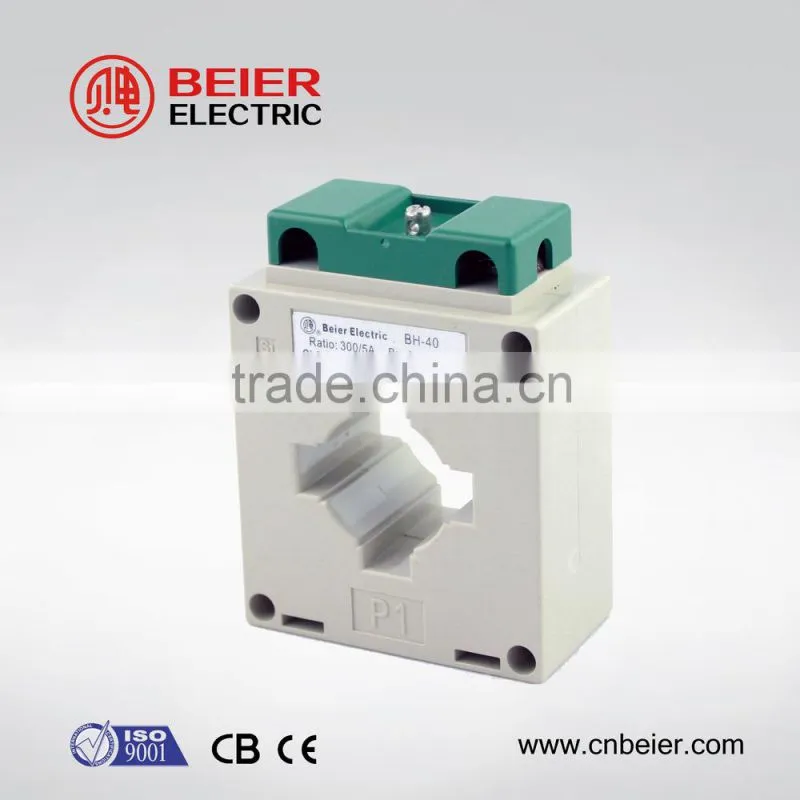

MES-0.66Kv 150/5A Class1.0 Series Current Transformer Price
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Beier
Model Number:
BH/LMK
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200/5A Class 0.5 MSQ Series High Accuracy Low Voltage Toroidal Current TransformerNegotiableMOQ: 100 Pieces -
BH40-0.66KV Current Transformer for 0.2 ClassNegotiableMOQ: 10 Pieces
-
JYS-30 5a Output ct Single Bar Phase Ferrite Current Transformer 600/5aNegotiableMOQ: 10 Pieces
-
JYS-40 One Phase Busbar Type Operated Current Transformer Output 5aNegotiableMOQ: 10 Pieces
-
JYS Busbar and Sealed Type Low Voltage ac Current Transformer 5aNegotiableMOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
Beier
Model Number
BH/LMK
Usage
Instrument
Phase
Other
Coil Structure
Toroidal
Coil Number
Autotransformer
current transformer BH-50 series model Specifications:
1. Standard: IEC44-1, BS3938, DIN42600, GB1208-2006;
2. Primary current: 1~5000A;
3. Secondary current: 1A or 5A;
4. Accuracy class: 0.5, 1.0 (Class0.2 or class0.2S can be tailor made!)
5. Cases are made of ABS, meet UL-94V0;
6. Short -time thermal current: Ith=60x1h;
7. Security factor: FS less than 5;

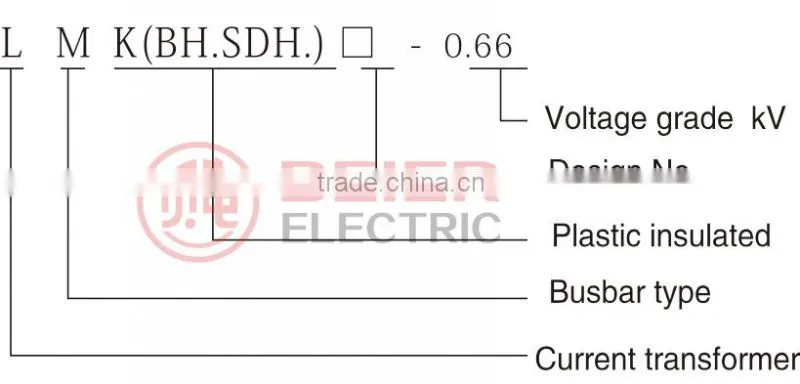

current transformer BH-50 series model Designation:
current transformer BH-50 series Model:
| Model | Rated current ratio | Busbar | Turn No. | Rated burden | Accuracy class | Rated insulation level |
| Section(mm) | (VA) | (KV) | ||||
|
BH-30 SDH-30 LMK1-0.66 |
15/5A | - | 10 | 5 | 0.5 | 0.66/3 |
| 20/5A | - | 10 | 5 | |||
| 30/5A | - | 5 | 5 | |||
| 40/5A | - | 5 | 5 | |||
| 50/5A | - | 3 | 5 | |||
| 75/5A | - | 2 | 5 | |||
| 100/5A | 30X10 | 1.2 | 5 | |||
| 150/5A | 30X10 | 1 | 5 | |||
| 200/5A | 30X10 | 1 | 5 | |||
| 300/5A | 30X10 | 1 | 5 | |||
|
BH-40 SDH-40 LMK1-0.66 |
200/5A | 40X10 | 1 | 5 | ||
| 300/5A | 40X10 | 1 | 5 | |||
| 400/5A | 40X10 | 1 | 5 | |||
| 500/5A | 40X10 | 1 | 10 | |||
| 600/5A | 40X10 | 1 | 10 | |||
|
BH-50 SDH-40 LMK1-0.66 |
300/5A | 50X10 | 1 | 5 | ||
| 400/5A | 50X10 | 1 | 5 | |||
| 500/6A | 50X10 | 1 | 5 | |||
| 600/5A | 50X10 | 1 | 10 | |||
| 800/5A | 50X10 | 1 | 10 | |||
|
BH-60 SDH-60 LMK1-0.66 |
600/5A | 60x10 | 1 | 10 | ||
| 800/5A | 60x10 | 1 | 10 | |||
| 1000/5A | 60x10 | 1 | 10 | |||
|
BH-80 SDH-80 LMK1-0.66 |
800/5A | 80X10 | 1 | 10 | ||
| 1000/5A | 80X10 | 1 | 10 | |||
| 1500/5A | 80X10 | 1 | 10 | |||
|
BH-100 SDH-100 LMK1-0.66 |
1000/5A | 100X10 | 1 | 10 | ||
| 1500/5A | 100X10 | 1 | 10 | |||
| 2000/5A | 100X10 | 1 | 15 | |||
| 3000/5A | 100X10 | 1 | 15 | |||
|
BH-125 SDH-125 LMK1-0.66 |
2000/5A | 120X10 | 1 | 15 | ||
| 3000/5A | 120X10 | 1 | 15 | |||
| 4000/5A | 120X10 | 1 | 15 | |||
| 5000/5A | 120X10 | 1 | 15 |
current transformer BH-50 series Model:
BH30S, 30, 40, 50, 60, 80, 100, Seven sizes.
